Partnumber Description Motor size Diameter mountinghole Recess towards engine Depth

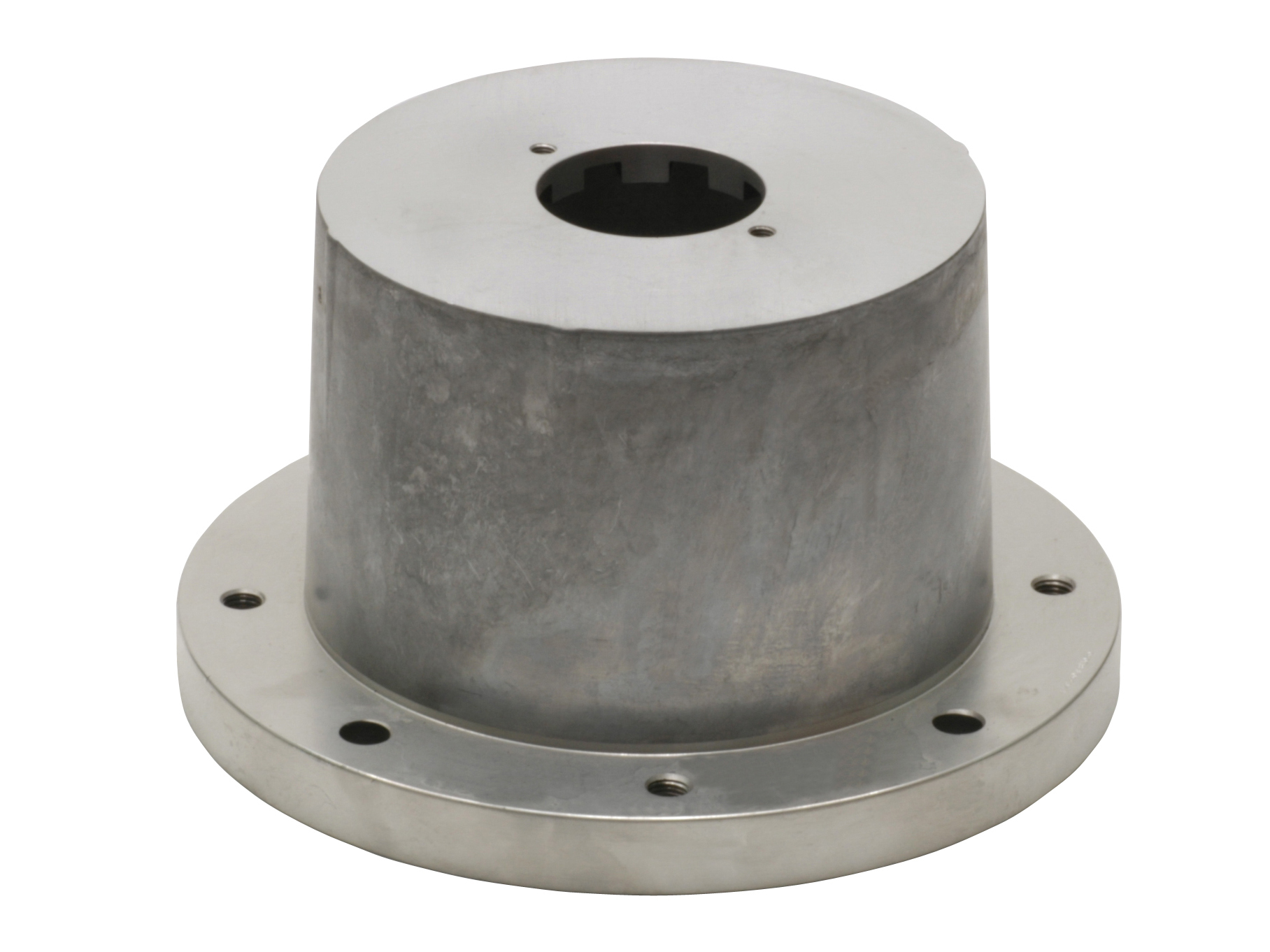

LMC200SW060 Bell housing SAE A x B5/80-90 80, 90 IEC 135 mm 130 mm 125 mm

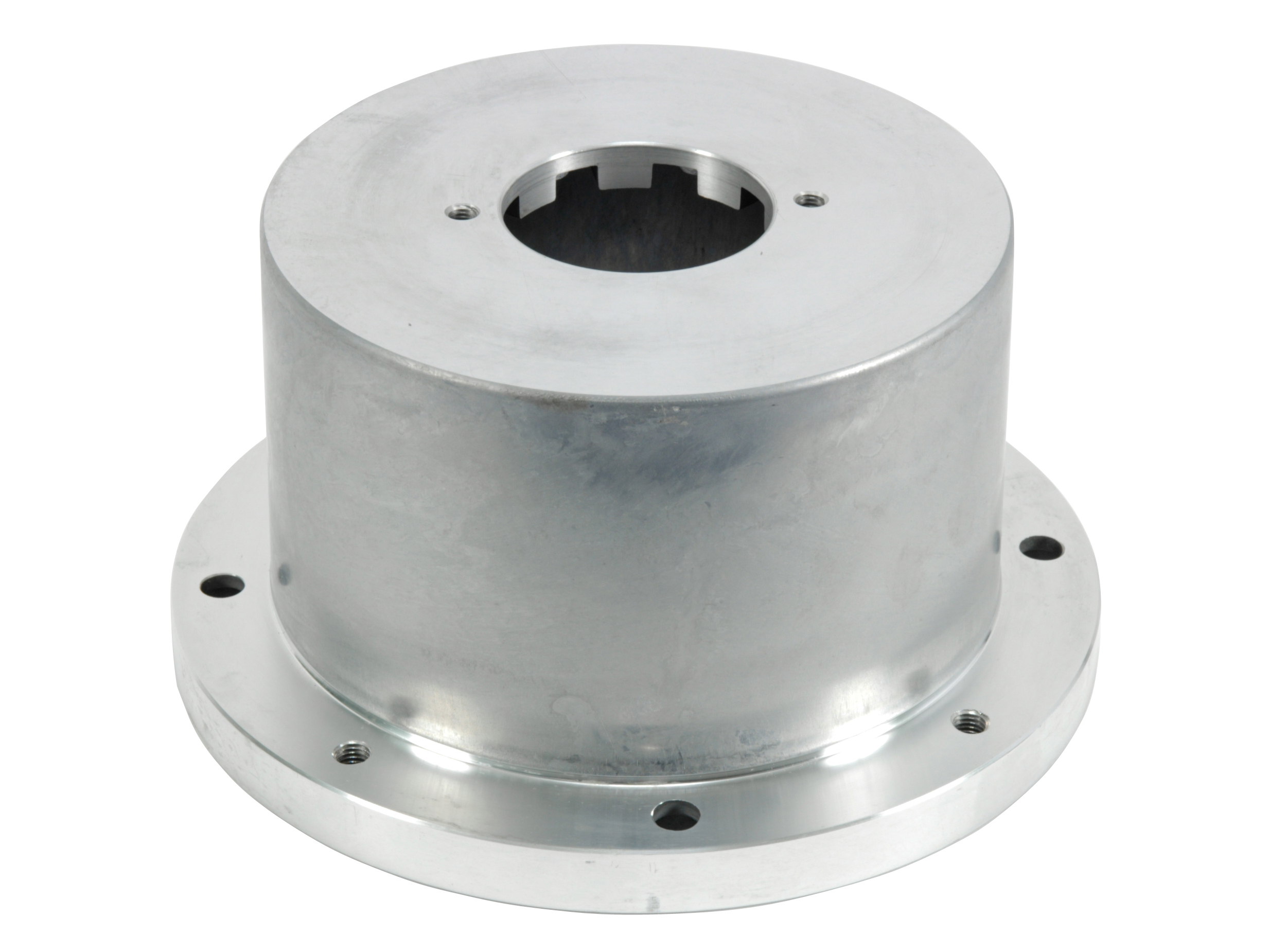

LMC250AQ060 Bell hous. SAE-A x B5/100-112 LMC250AFSQ060 100, 112 IEC 185 mm 180 mm 138 mm

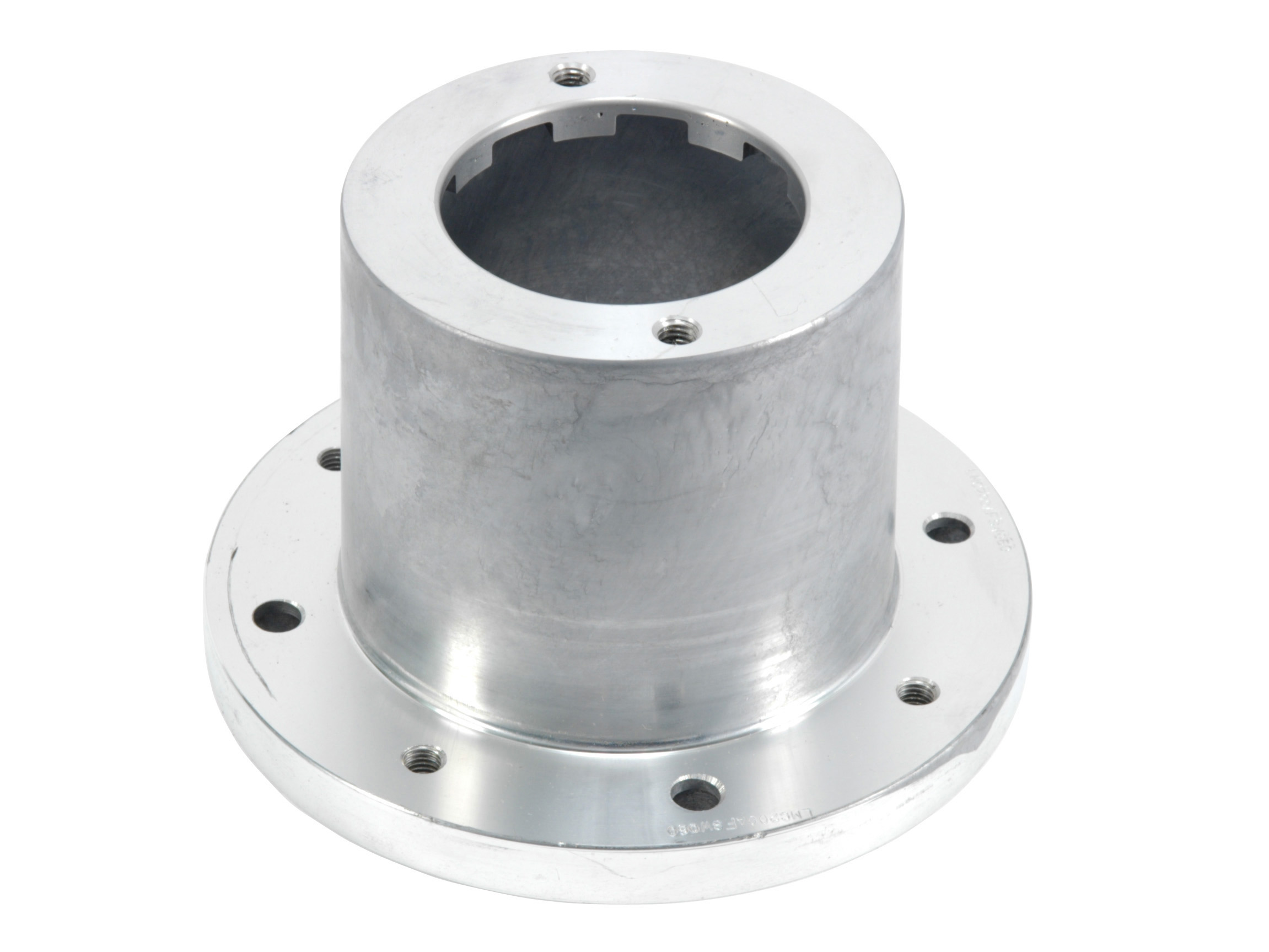

LMC300AT060 Bell housing SAE A x B5/132 LMC300AFST060 132 IEC 235 mm 230 mm 155 mm

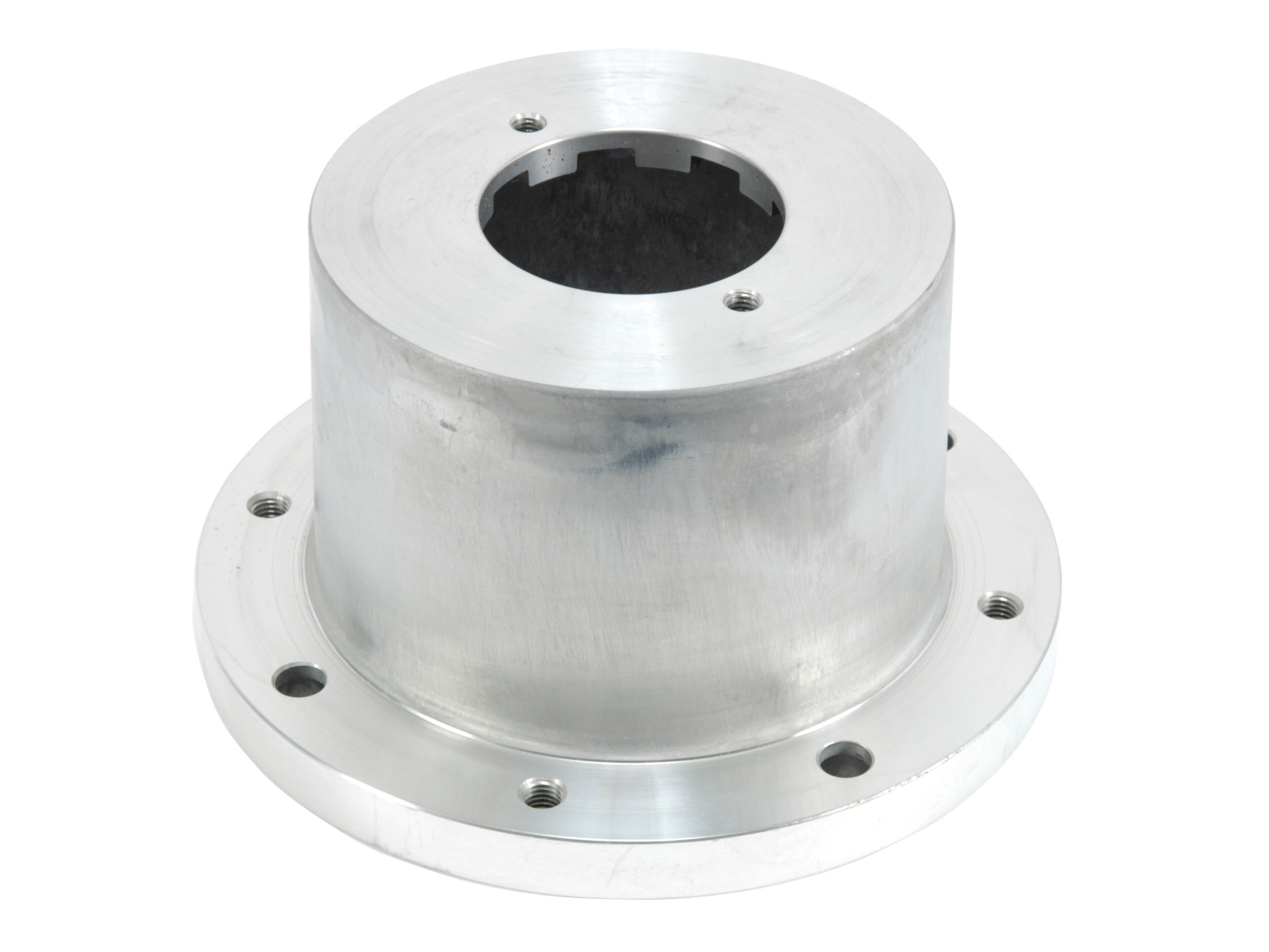

LMC350AU060 Bell hous. SAE-A x B5/160-180 160, 180 IEC 255 mm 250 mm 194 mm
Brand Name
MP Filtri
Material
Aluminium
Mountingtype
B5
Pump group
SAE-A
Temperature max.
+80
Temperature min.
-30
