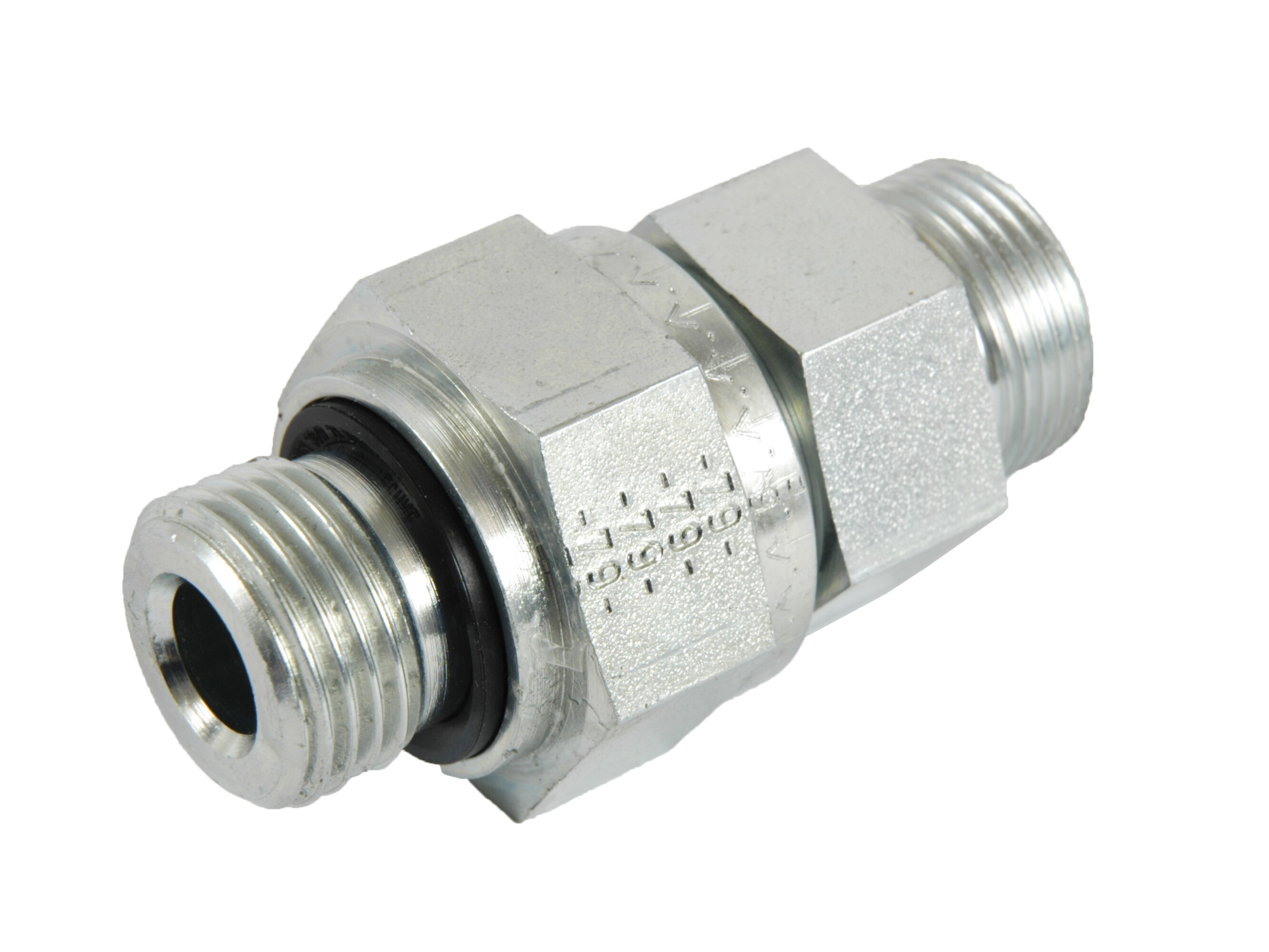

Check valves DIN2353 BSP - L-Series "RZ"

Check valves DIN2353 BSP - L-Series "RZ"

Välj variant
VÆLG VARIANT
VÆLG VARIANT
Varenummer Beskrivelse Diameter pipe Thread Pressure opening Pressure max.
FXRVZ06LR18WD Check valve (->) - ø6L x 1/8" BSP - 1 bar - WD seal G 1/8 BSP 1 bar 400 bar
FXRVZ08LR14WD Check valve (->) - ø8L x 1/4" BSP - 1 bar - WD seal G 1/4 BSP 1 bar 400 bar
FXRVZ10LR14WD Check valve (->) - ø10L x 1/4" BSP - WD seal G 1/4 BSP 1 bar 400 bar
FXRVZ12LR38WD Check valve (->) - ø12L x 3/8" BSP - 1 bar - WD seal G 3/8 BSP 1 bar 400 bar
FXRVZ15LR12WD Check valve (->) - ø15L x 1/2" BSP - 1 bar - WD seal G 1/2 BSP 1 bar 400 bar
FXRVZ18LR12WD Check valve (->) - ø18L x 1/2" BSP - 1 bar - WD seal G 1/2 BSP 1 bar 400 bar
FXRVZ22LR34WD Check valve (->) - ø22L x 3/4" BSP - 1 bar - WD seal G 3/4 BSP 1 bar 250 bar
FXRVZ28LR1WD Check valve (->) - ø28L x 1" BSP - 1 bar - WD seal G 1 BSP 1 bar 250 bar
FXRVZ35LR114WD Check valve (->) - ø35L x 1.1/4" BSP - 1 bar - WD seal G 1.1/4 BSP 1 bar 250 bar
FXRVZ42LR112WD Check valve (<-) - Ø42L x 1.1/2" BSP - 1 bar - WD seal 42 mm G 1.1/2 BSP 1 bar 250 bar
RZ28RLX Check valve (->) - ø28L x 1" BSP - 1 bar - WD seal 28 mm G 1 BSP 1 bar 100 bar
