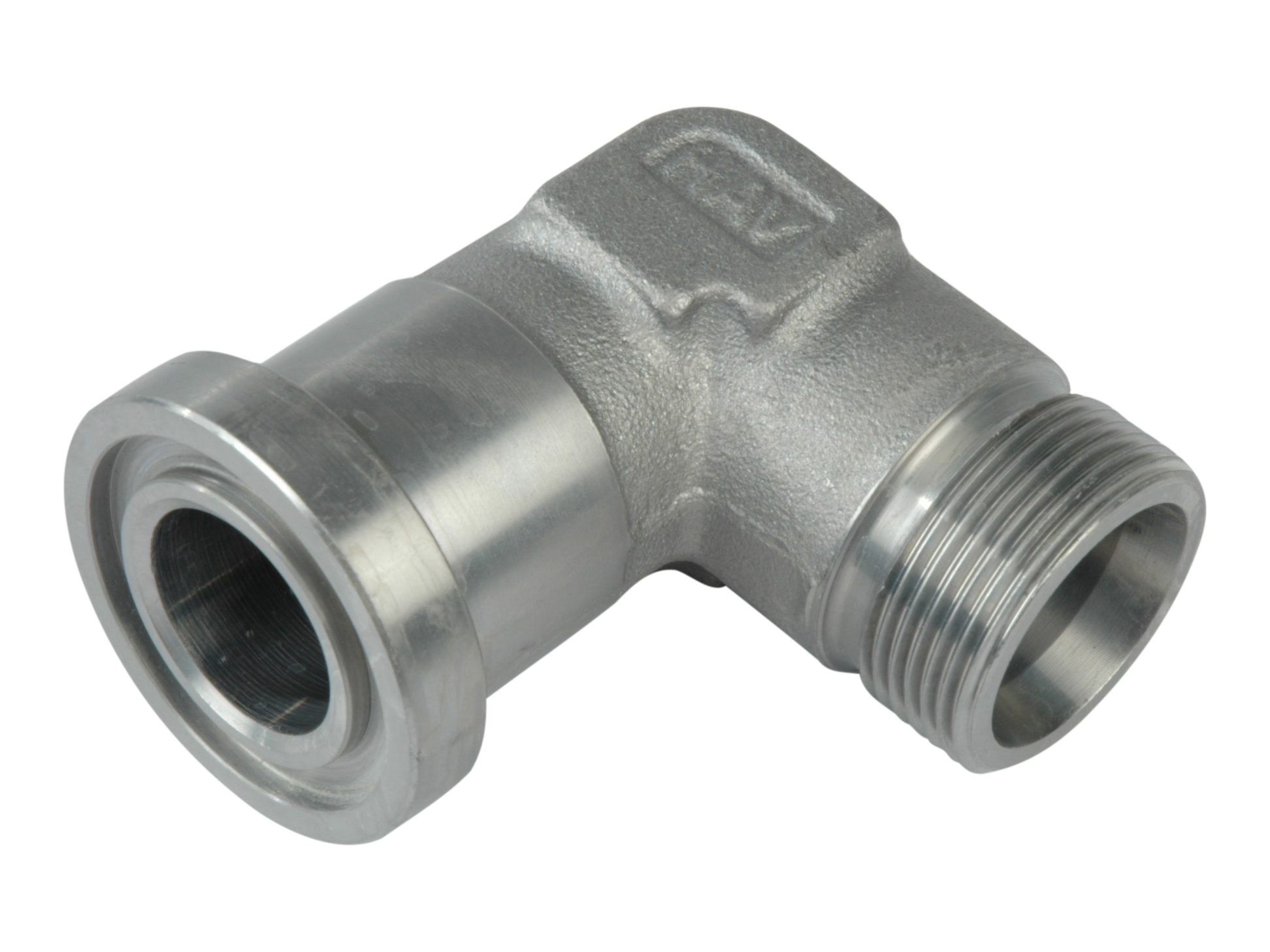

Threaded flange adapter 90° SAE 6000 PSI x DIN2353 MM male - WFG6

Flange 90° 3/4" SAE6000 x 25S

Flange 90° 1" SAE6000 x 25S

Flange 90° 1.1/4" SAE6000 x 30S

Flange 90° 1.1/2" SAE6000 x 38S

SELECT VARIANT

Partnumber	Description	Flange SAE/DIN	Flange	Diameter pipe	Thread outer metric
WFG6002/S25	Flange 90° 3/4" SAE6000 x 25S	6000 PSI	3/4 "	25 mm	M36x2
WFG6003/S25	Flange 90° 1" SAE6000 x 25S	6000 PSI	1 "	25 mm	M36x2
WFG6004/S30	Flange 90° 1.1/4" SAE6000 x 30S	6000 PSI	1.1/4 "	30 mm	M42x2
WFG6005/S38	Flange 90° 1.1/2" SAE6000 x 38S	6000 PSI	1.1/2 "	38 mm	M52x2

Angle

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

6000 PSI

Material

Steel

Series

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
