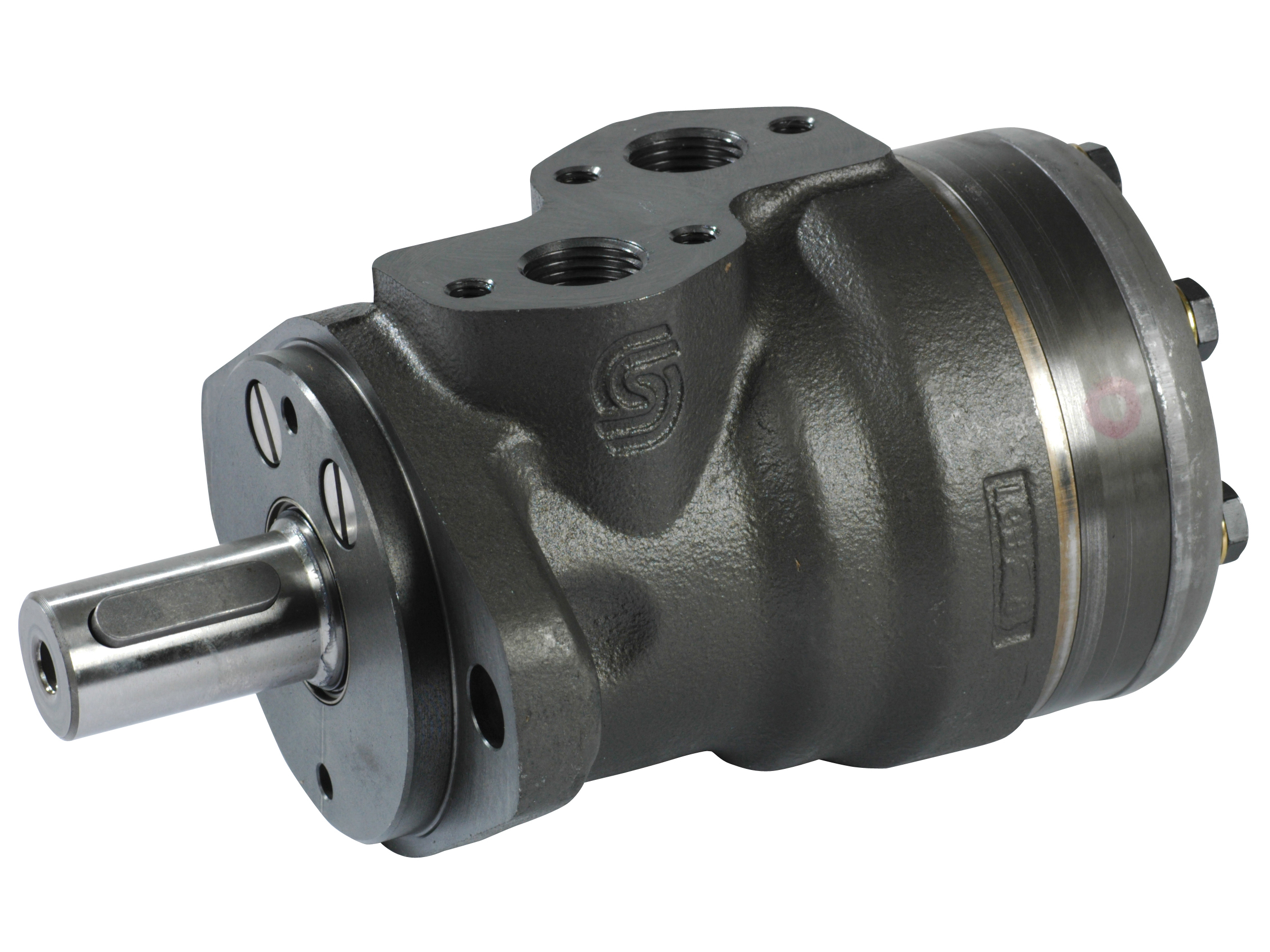

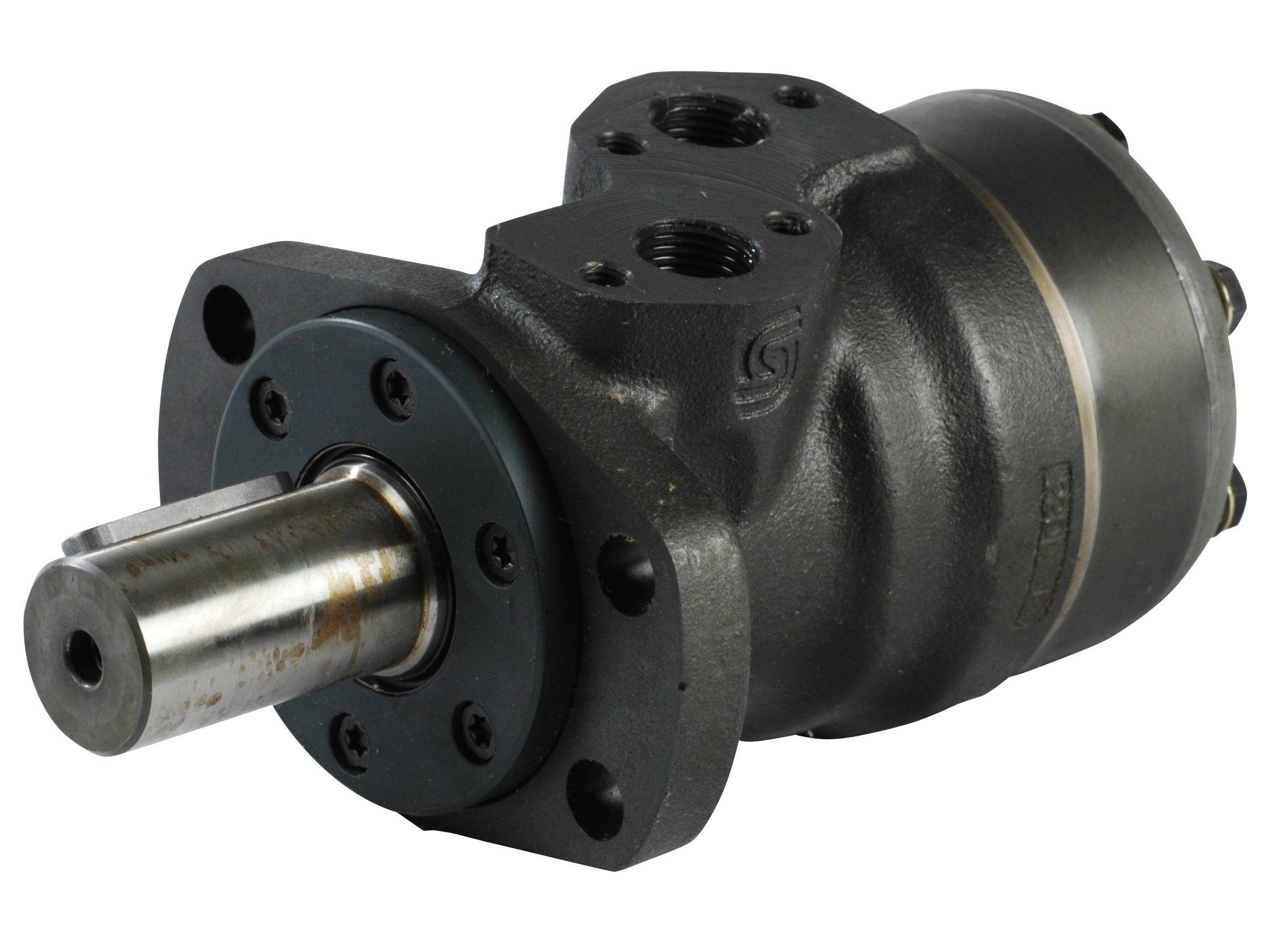

Orbital motors White OMR cylindrical shaft ø32mm

Orbit motor OMR 160 - 32mm shaft

Orbit motor OMR 315 - 32mm shaft

Orbit motor OMR 250 - 32mm shaft

Orbit motor OMR 160 - 32mm shaft

Orbit motor OMR 200 - 32mm shaft

Orbit motor OMR 315 - 32mm shaft

SELECT VARIANT

Partnumber	Description	Shaft diameter	Shaft type	Displacement	Continuous rotation max.
151-0244	Orbit motor OMR 160 - 32mm shaft	32 mm	Cylindrical	159.6 cm3	375 rpm
151-0246	Orbit motor OMR 315 - 32mm shaft	32 mm	Cylindrical	315.7 cm3	190 rpm
151-0247	Orbit motor OMR 250 - 32mm shaft	32 mm	Cylindrical	249.3 cm3	240 rpm
151-6004	Orbit motor OMR 160 - 32mm shaft	32 mm	Cylindrical	159.6 cm3	375 rpm
151-6005	Orbit motor OMR 200 - 32mm shaft	32 mm	Cylindrical	199.8 cm3	300 rpm
151-6007	Orbit motor OMR 315 - 32mm shaft	32 mm	Cylindrical	315.7 cm3	190 rpm

Brand Name

White

Holes circle

106.4

Oil viscocity recommended

20 - 75

Recess

82,5

Shaft diameter

Shaft keyway

10,0

Shaft type

Cylindrical

Working ports

G 1/2
