Orbit motor OMR 160 - 32mm shaft
Orbital motor, type OMR are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.
Partnumber:
151-6004
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
G 1/2 BSP
B
G 1/2 BSP
Brand Name
White
C
G 1/4 BSP
Continuous power max.
12.5 kW
Continuous rotation max.
375 rpm
D
G 1/2 BSP
Displacement
159.6 cm3
Drainport
G 1/4 BSP
E
M8
Holes circle
106.4 mm
Intermittent Effect Max.
14
Intermittent Rotation speed Max.
470

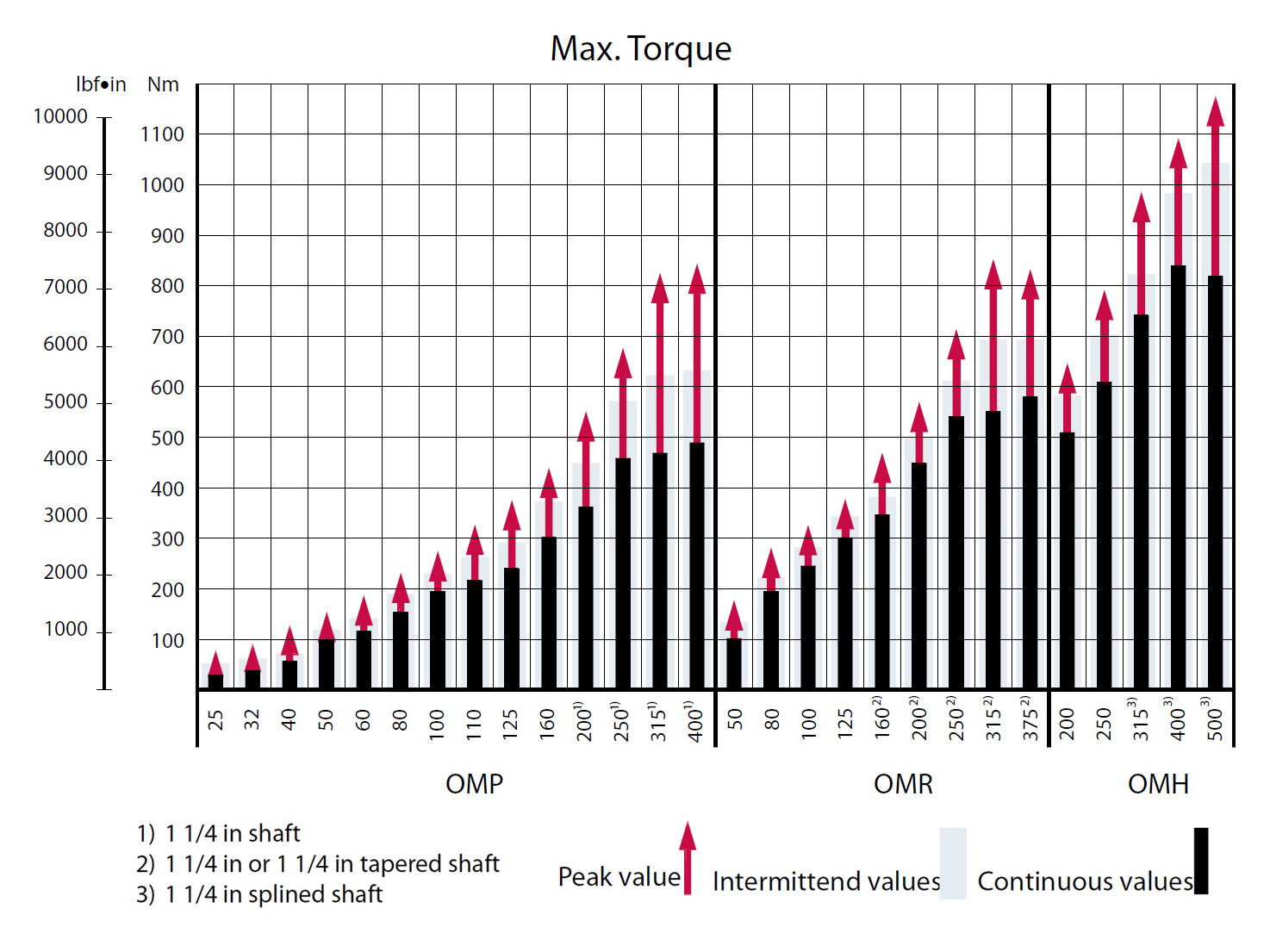

Intermittent Torque Max.
430 Nm
L
156,6 mm
L1
27,8 mm
Mounting flange
SAE-A4
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure continous max.
175 bar
Pressure drop continuous max.
175 bar
Pressure intermittent max.
200 bar
Pressure peak max.
225 bar
Recess
82,5 mm
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Torque continuous max.
380 Nm
Working ports
G 1/2 BSP
Package size
0 pcs
Barcode
5704295318127
Gross weight
8,23 Kg
Net weight
8,23 Kg
Country of origin
Intrastat code
84122981
Orbital motor, type OMR are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.
