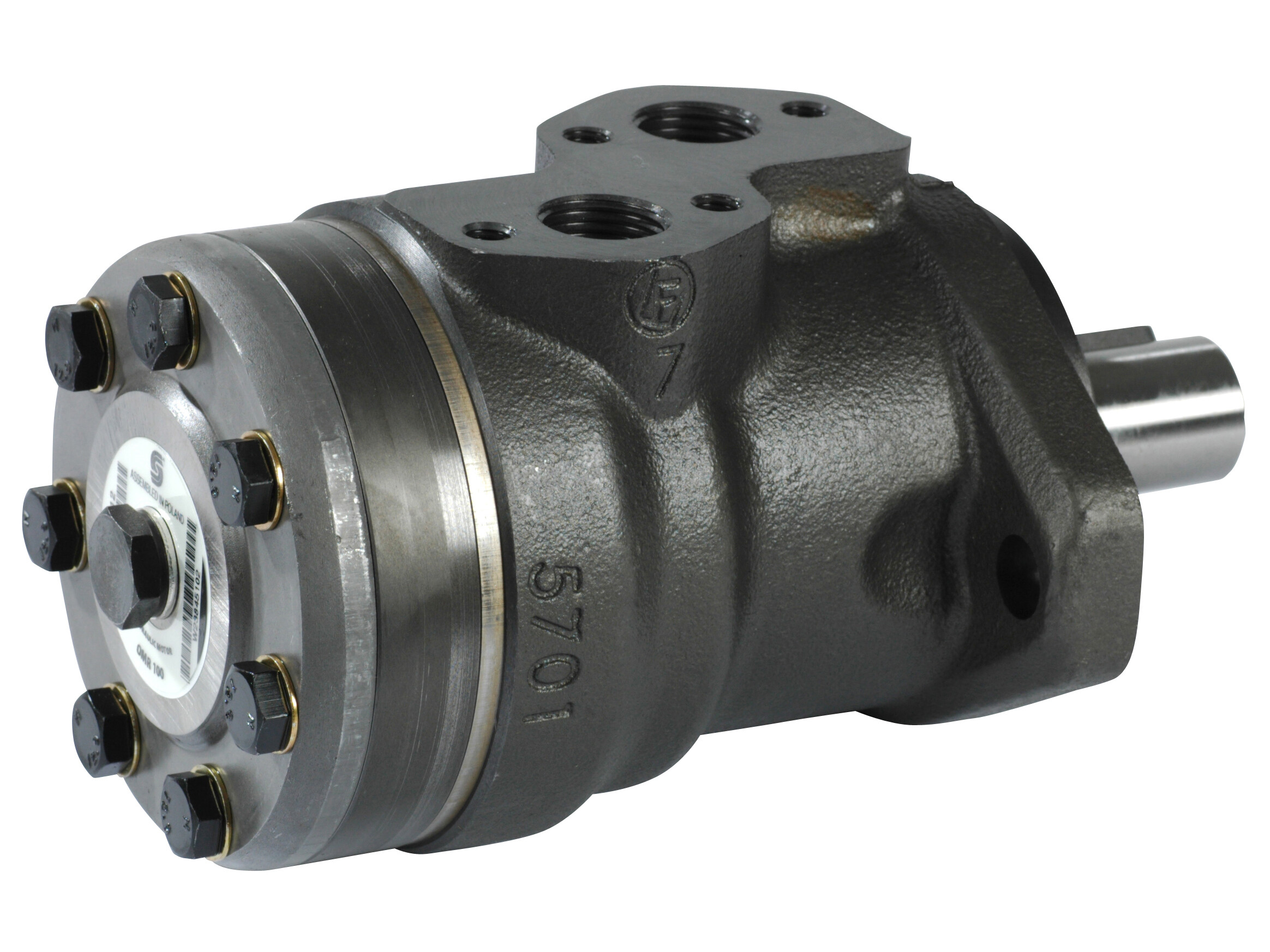

Orbit motor OMR 315 - 32mm shaft

Orbital motor, type OMR are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.

Partnumber:

151-0246

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (4)

Brake RF2/32/DG-RF/288 Input OMR/OMP Output OMR/OMP ø25

Partnumber: 154-2846

Valve for OMP/OMR with handlever

Partnumber: HSV061-OMP

Dual shock valve 1/2 With A6A60ZN

Partnumber: OMP3A6AK

Dual load control valve With 2 E2A60ZN

Partnumber: OMP3E2AE2AK

Specifications
Dimensions and shipping

Brand Name

White

Continuous power max.

5 kW

Continuous rotation max.

190 rpm

Dimension L

183.6 mm

Dimension L1

54.8 mm

Displacement

315.7 cm3

Holes circle

106.4 mm

Mounting flange

SAE-A2

Number of mounting holes

Oil viscocity recommended

20 - 75 cSt

Pressure drop continuous max.

70 bar

Recess

82,5 mm

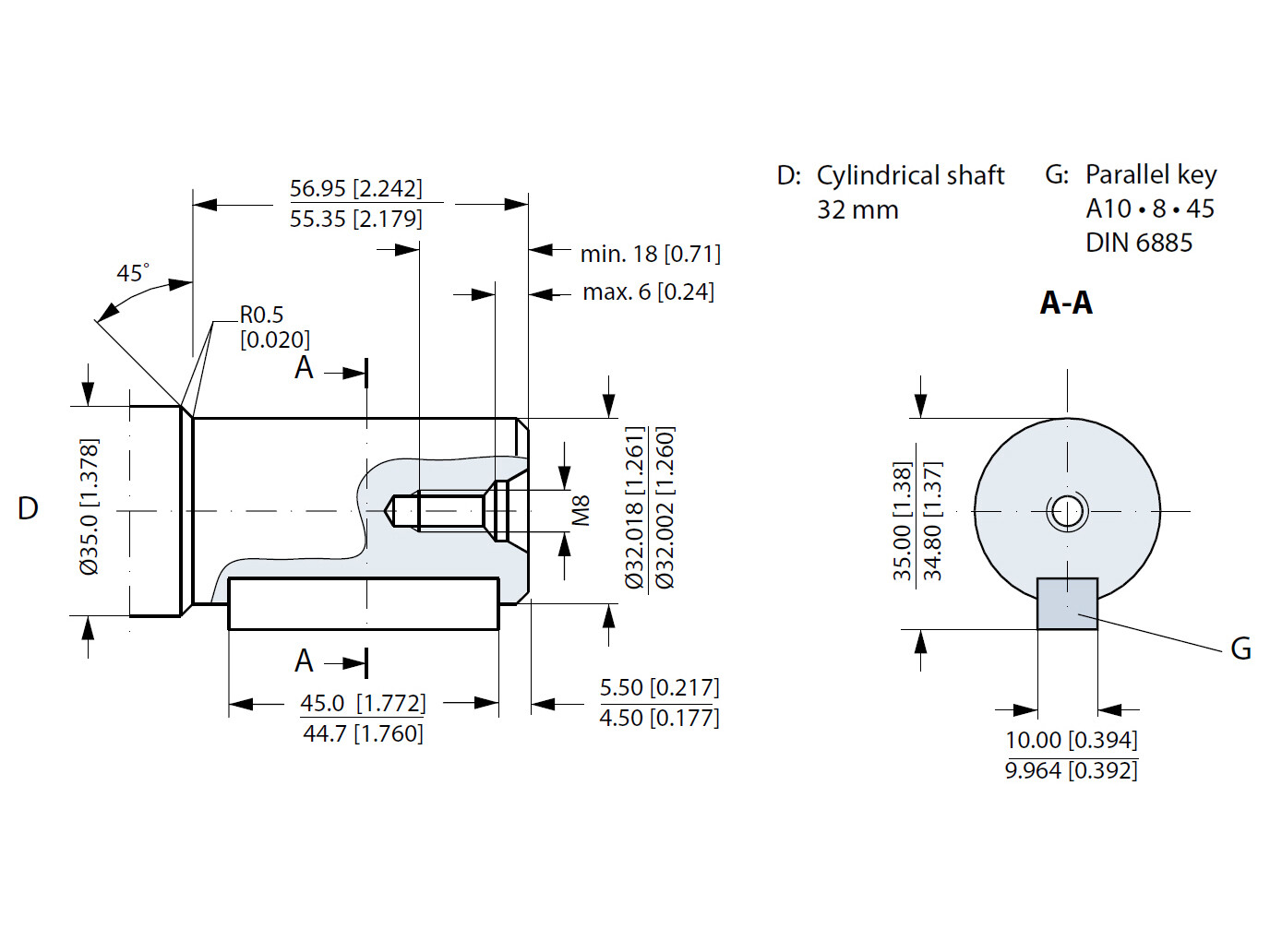

Shaft diameter

32 mm

Shaft keyway

10,0 mm

Shaft type

Cylindrical

Torque continuous max.

300 Nm

Working ports

G 1/2 BSP

Package size

0 pcs

Barcode

5704295320397

Gross weight

9,56 Kg

Net weight

9,56 Kg

Country of origin

Intrastat code

84122981

Product information

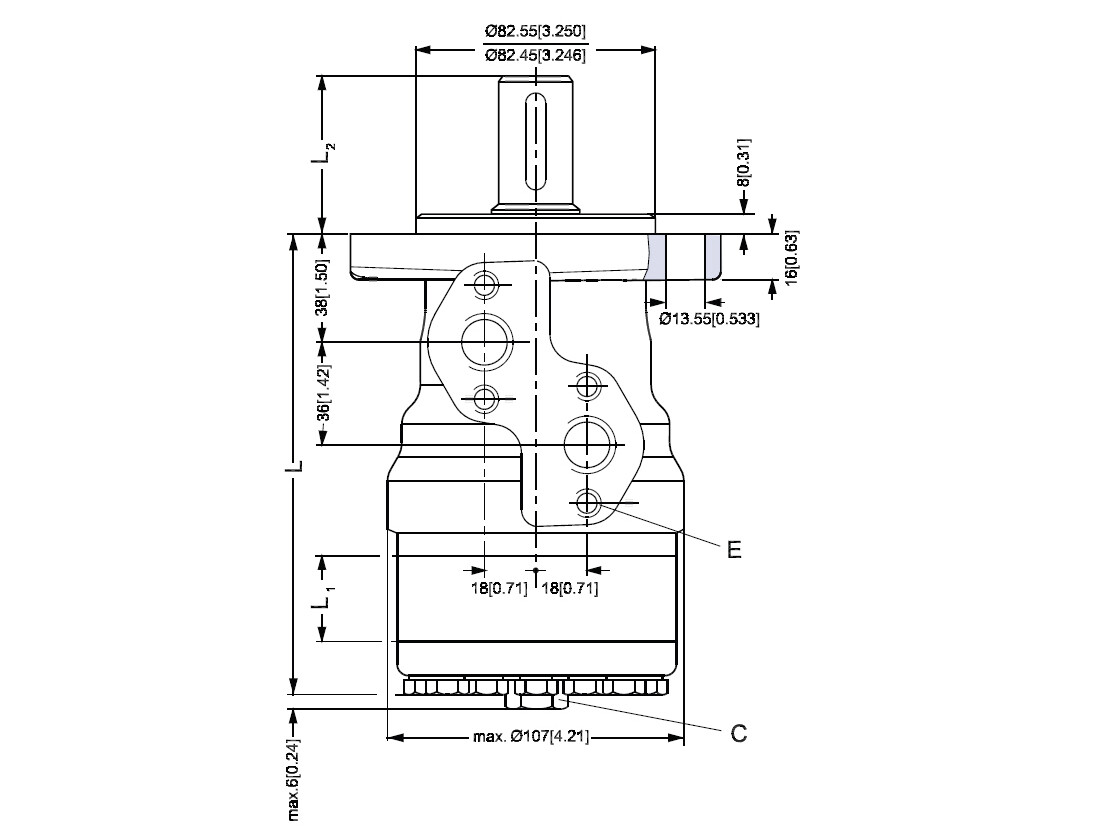

Measure sketch

Orbital motor, type OMR are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.
