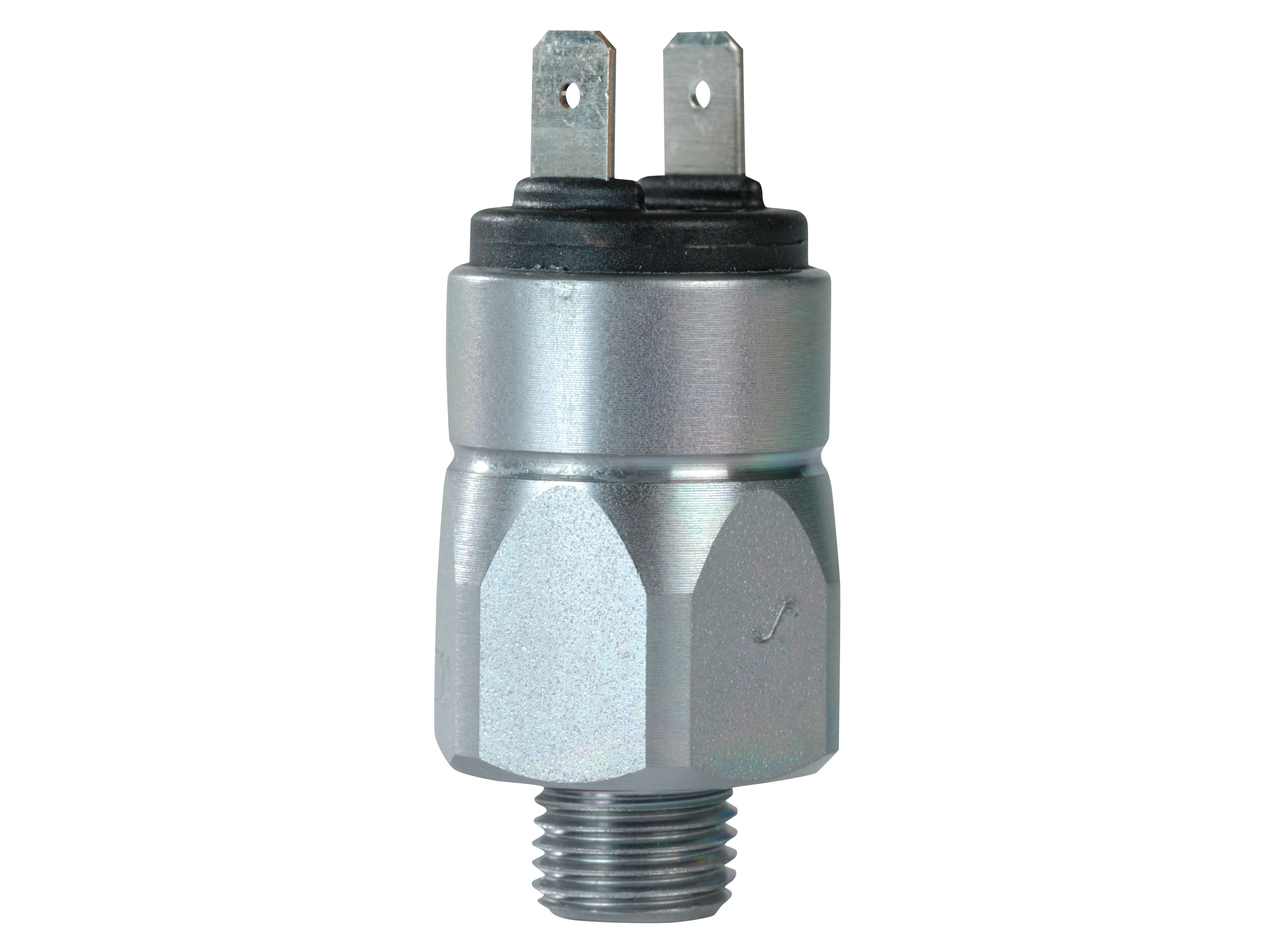

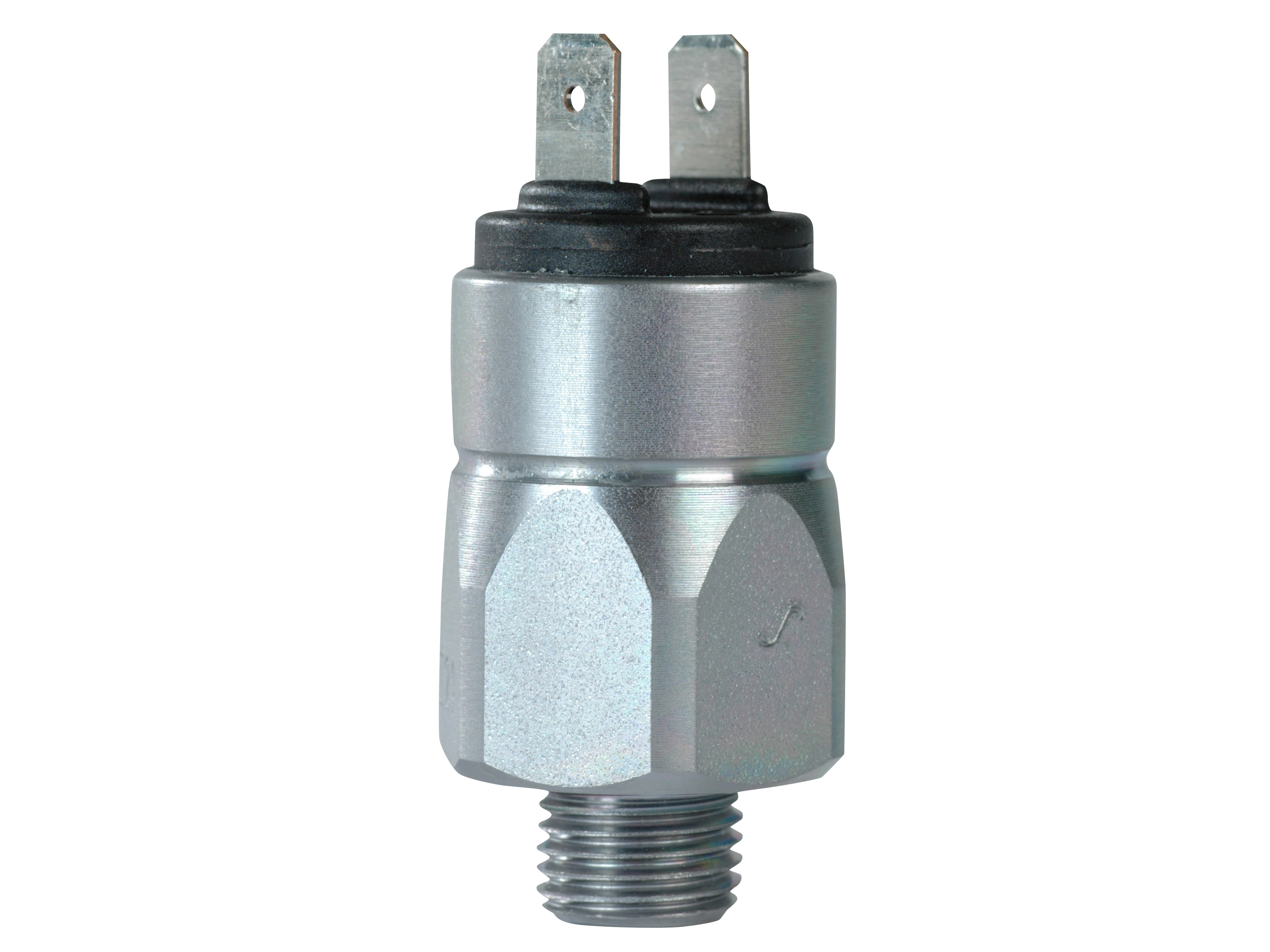

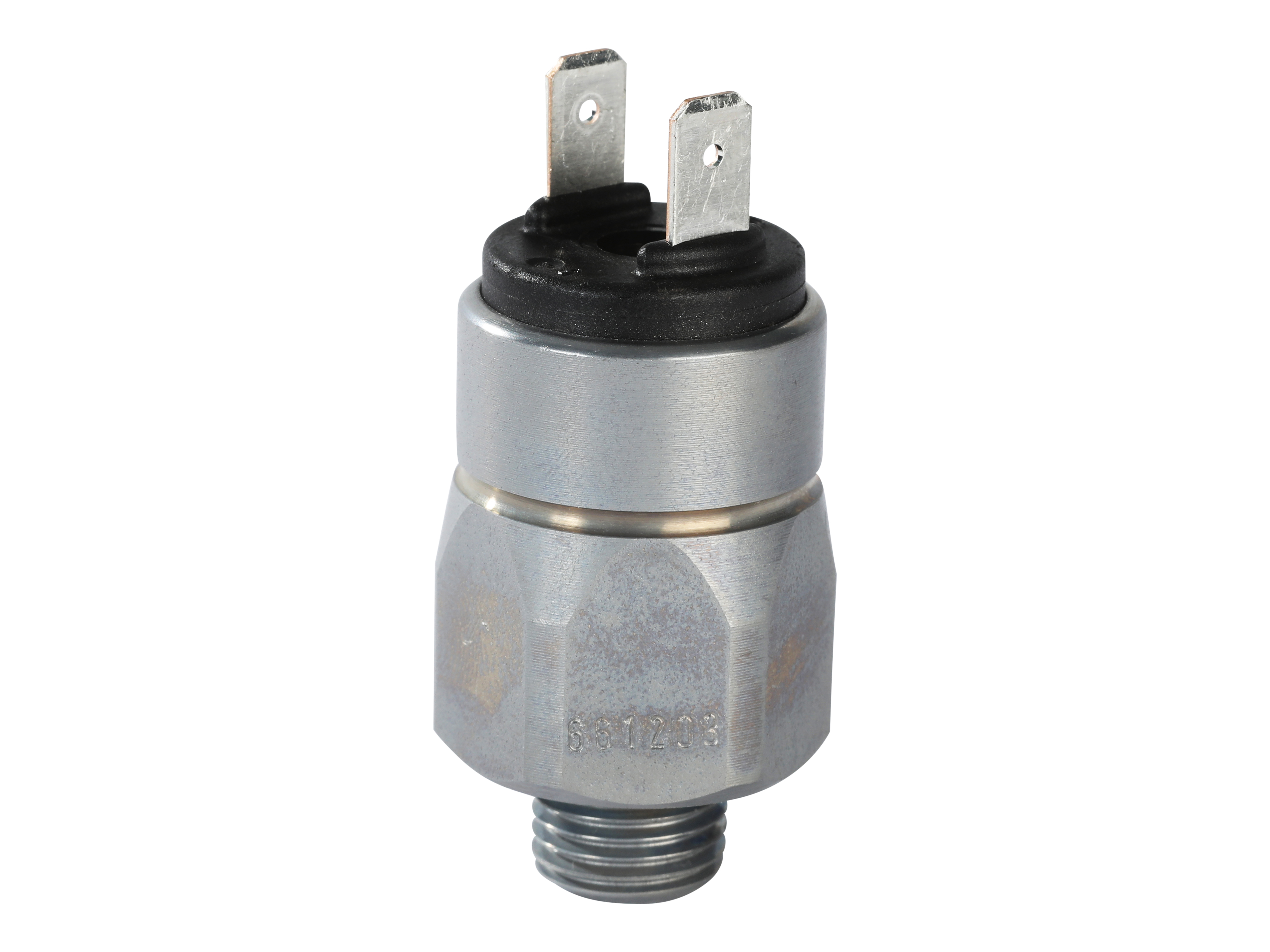

Pressure switches diaphragm - type 166

Diaphragm pressure switch 42V 1-10 Bar NO 1/4" BSP

Diaphragm pressure switch 42V 1-10 Bar NC 1/4" BSP

Tryckvakt 0166411031043

Diaphragm pressure switch max 42V 10-20Bar NC 1/4"

Diaphragm pressure switch 42V 20-50 Bar NO 1/4" BSP

Diaphragm pressure switch 42V 20-50 Bar NC 1/4" BSP

SELECT VARIANT

Partnumber	Description	Pressure setting min.	Pressure setting max.	Contact function
166407031027	Diaphragm pressure switch 42V 1-10 Bar NO 1/4" BSP	1 bar	10 bar	Normally open
166408031031	Diaphragm pressure switch 42V 1-10 Bar NC 1/4" BSP	1 bar	10 bar	Normally closed
166411031043	Tryckvakt 0166411031043	10 bar	20 bar	Normally open
166412031047	Diaphragm pressure switch max 42V 10-20Bar NC 1/4"	10 bar	20 bar	Normally closed
166415031059	Diaphragm pressure switch 42V 20-50 Bar NO 1/4" BSP	20 bar	50 bar	Normally open
166416031063	Diaphragm pressure switch 42V 20-50 Bar NC 1/4" BSP	20 bar	50 bar	Normally closed

Current max.

Current type

AC, DC

Plug type

Flat pins

Pressure max.

300

Temperature max.

+80

Temperature min.

-20

Thread

G 1/4

Type

Membrane

Voltage max.
