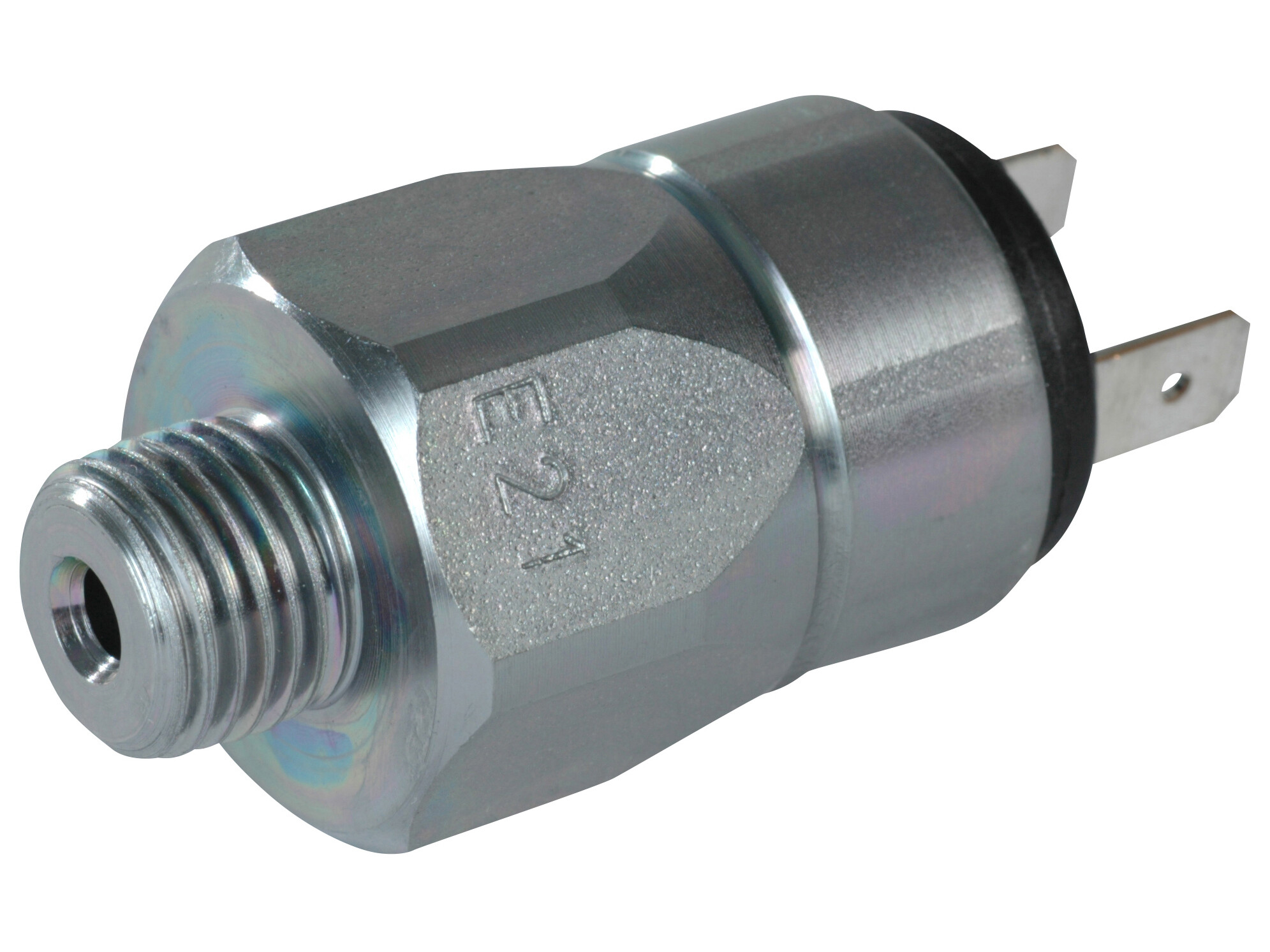

Diaphragm pressure switch 42V 20-50 Bar NO 1/4" BSP
Suco membrane pressure switch type 0166.
Materials: Galvanized steel with membrane/selas in NBR / EPDM / FKM.
Max. switching frequency: 200 Hz.
Electrical connection: AMP flat connectors 6,3x0,8 mm.
Mechanical lifetime: 1 million position changes.
Artikelnummer:
166415031059
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Contact function
Normally open
Current max.
4 A
Current type
AC, DC
Plug type
Flat pins
Pressure max.
300 bar
Pressure setting max.
50 bar
Pressure setting min.
20 bar
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/4 BSP
Type
Membrane
Voltage max.
42 V
Förpackningsstorlek
0 pcs
Streckkod
5704334455318
Bruttovikt
0,07 Kg
Nettovikt
0,07 Kg
Ursprungsland
Intrastat artikelkod
84812010
Suco membrane pressure switch type 0166.
Materials: Galvanized steel with membrane/selas in NBR / EPDM / FKM.
Max. switching frequency: 200 Hz.
Electrical connection: AMP flat connectors 6,3x0,8 mm.
Mechanical lifetime: 1 million position changes.
