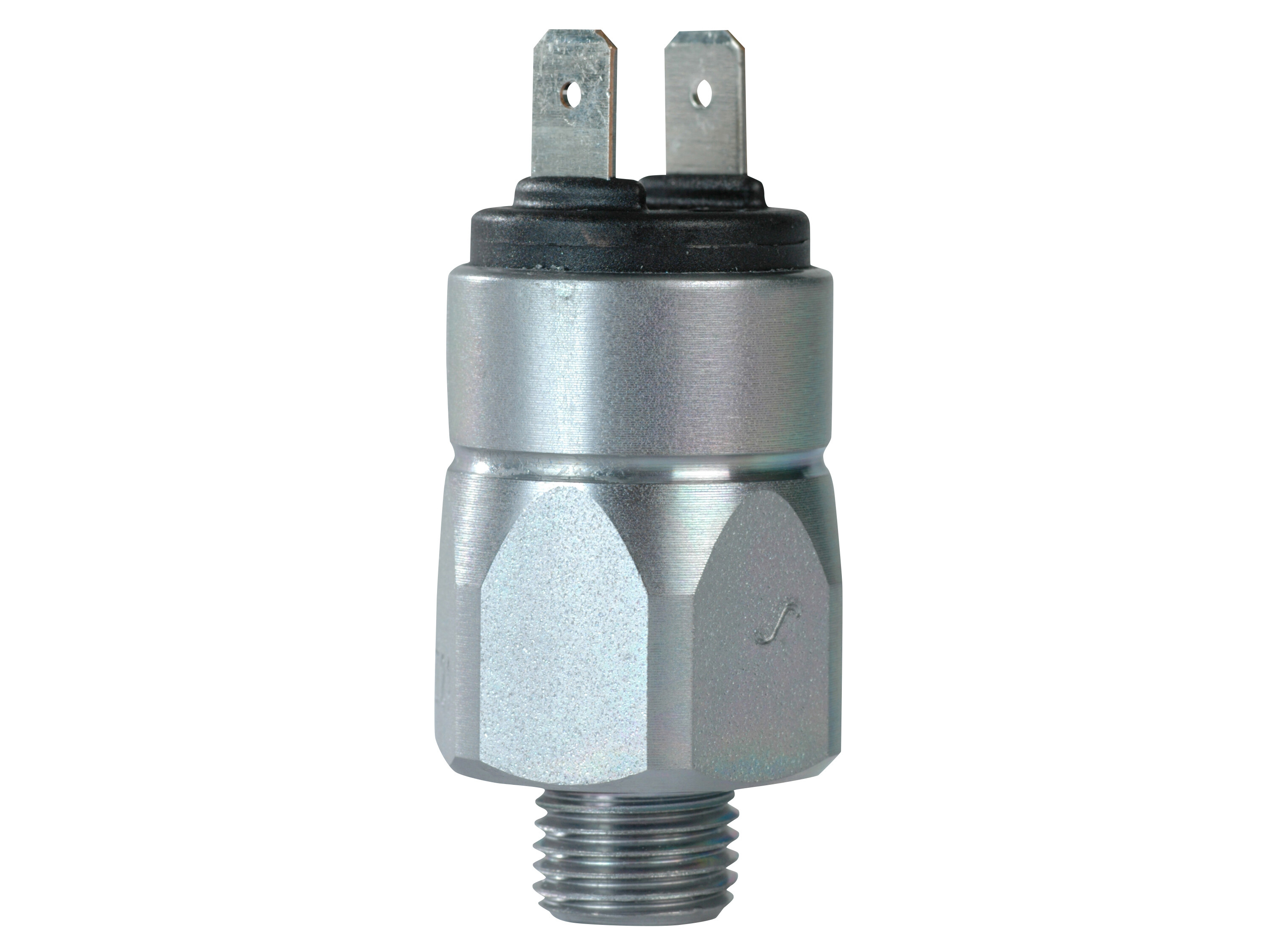

Diaphragm pressure switch 42V 1-10 Bar NC 1/4" BSP
Suco membrane pressure switch type 0166.
Materials: Galvanized steel with membrane/selas in NBR / EPDM / FKM.
Max. switching frequency: 200 Hz.
Electrical connection: AMP flat connectors 6,3x0,8 mm.
Mechanical lifetime: 1 million position changes.
Partnumber:
166408031031
Package size:
0 pcs
Min. order quantity is:
1 pcs
Gänga
G 1/4 BSP
Kontakt typ
Flat pins
Kontaktfunktion
Normally closed
Spänning max.
42 V
Ström
AC, DC
Strömstyrka max.
4 A
Temperatur max.
+80 °C
Temperatur min.
-20 °C
Tryck max.
300 bar
Tryckinställning max.
10 bar
Tryckinställning min.
1 bar
Typ
Membrane
Package size
0 pcs
Barcode
5704334455295
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
Intrastat code
84812010
Suco membrane pressure switch type 0166.
Materials: Galvanized steel with membrane/selas in NBR / EPDM / FKM.
Max. switching frequency: 200 Hz.
Electrical connection: AMP flat connectors 6,3x0,8 mm.
Mechanical lifetime: 1 million position changes.
