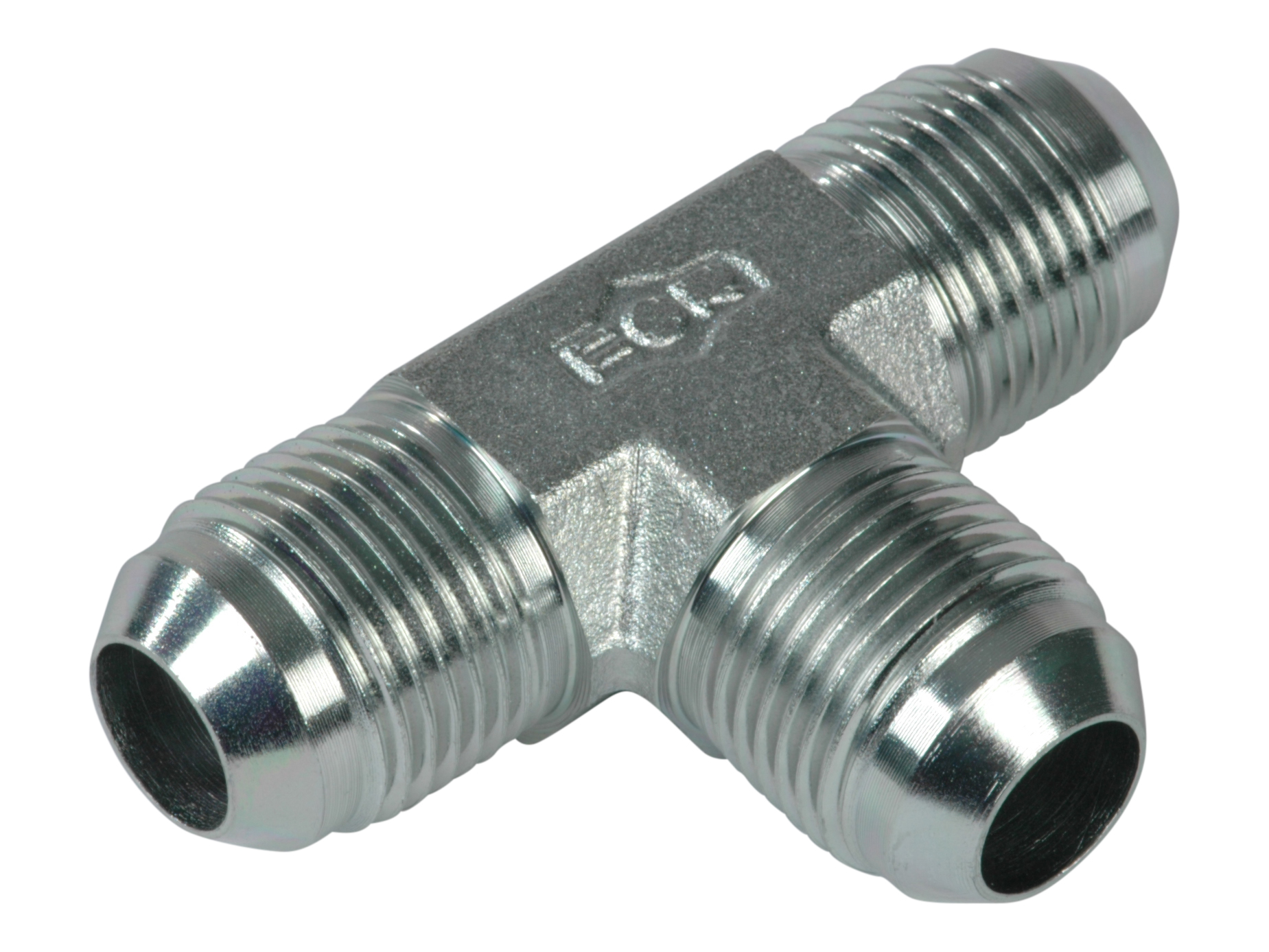

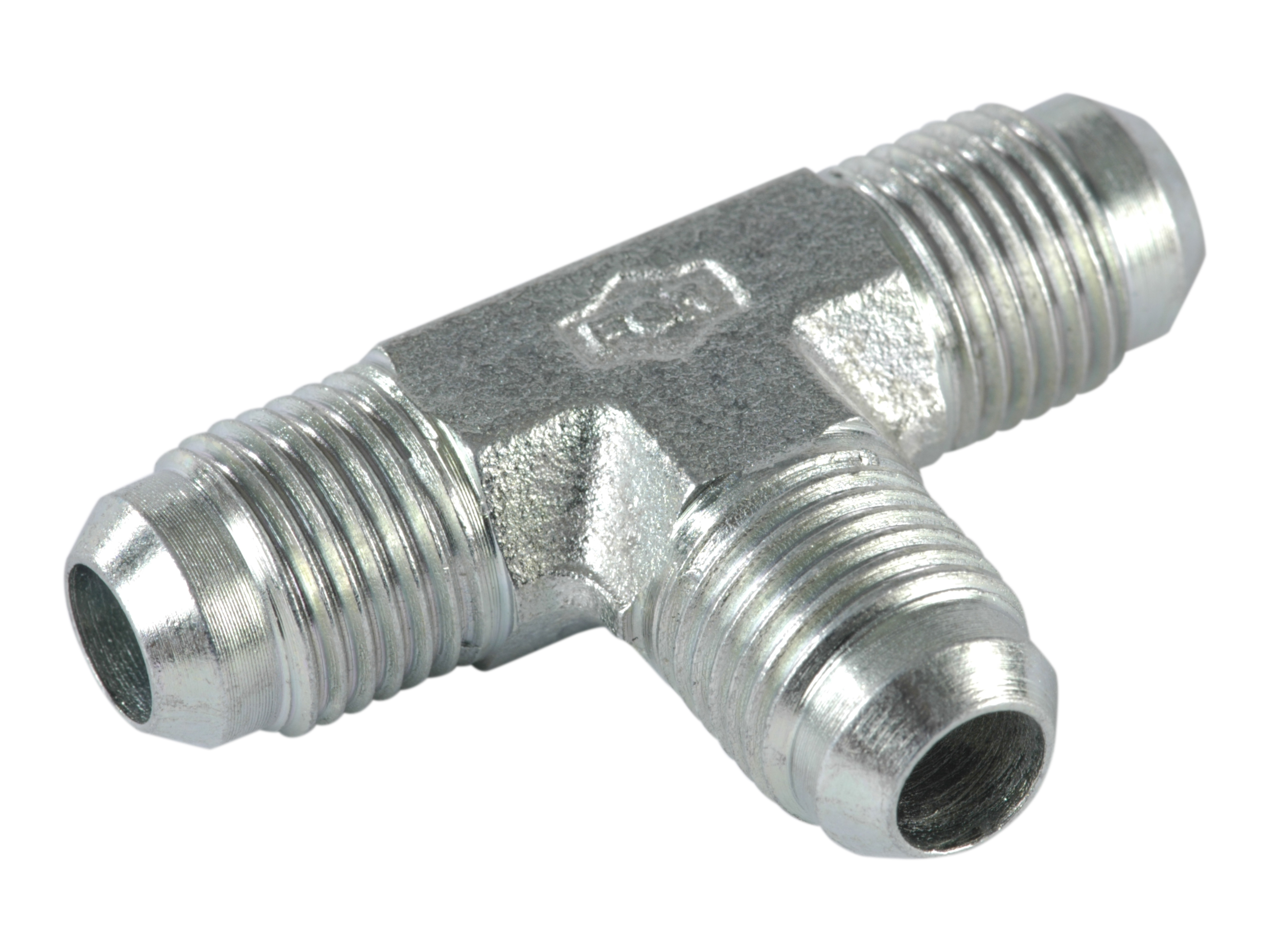

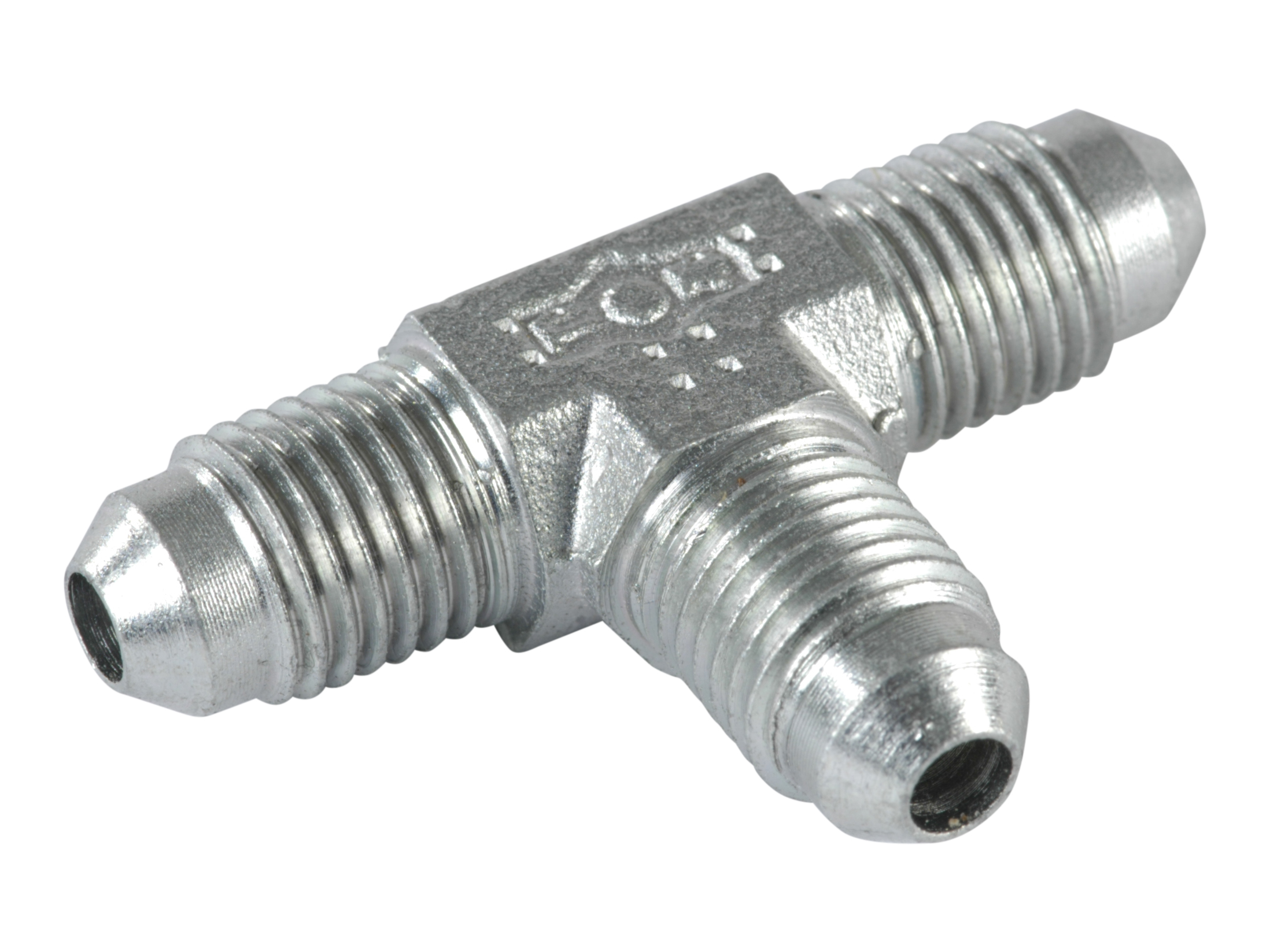

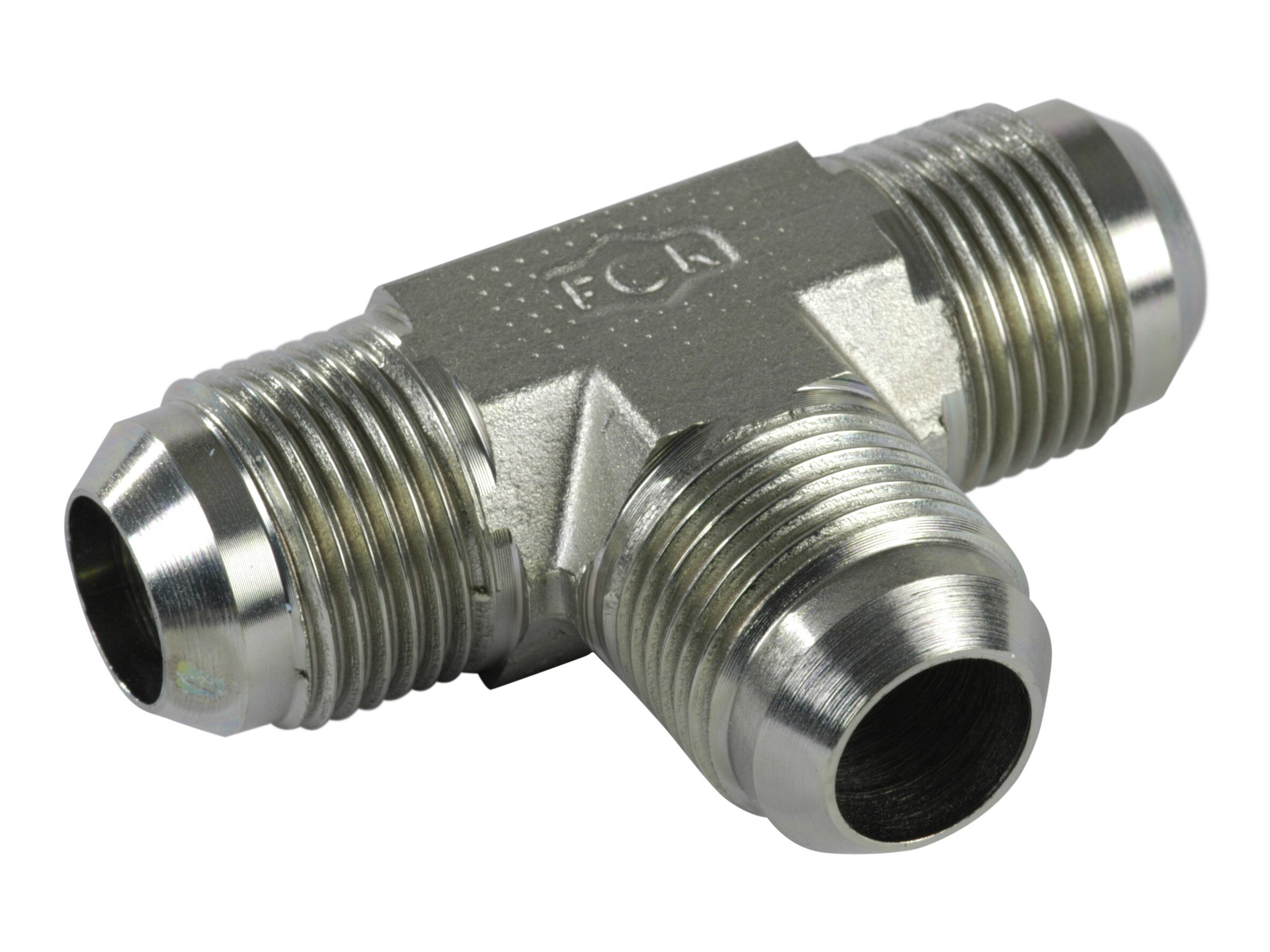

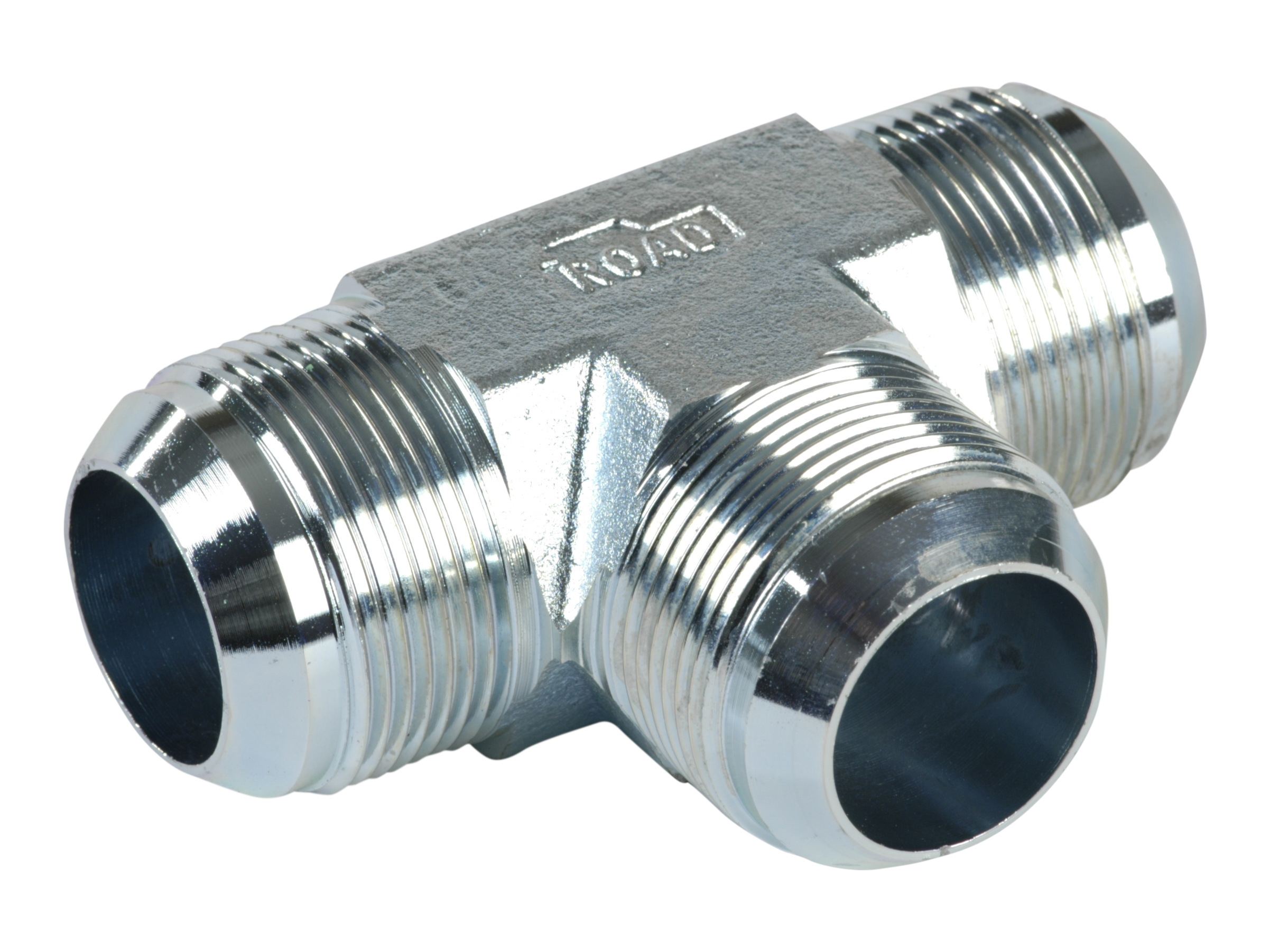

T-adapter JIC male x JIC male x JIC male - TU / JT

T-adapter JIC male x JIC male x JIC male - TU / JT

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Brand Name
TU-06 S505-06-it Tee 6 mm 7/16-20 JIC 450 bar FOR
TU-08 S505-08IT Tee 8 mm 1/2-20 JIC 416 bar FOR
TU-10 Tee 7/16-20 JIC male 10 mm 9/16-18 JIC 350 bar FOR
TU-12 S505-12IT Tee 12 mm 3/4-16 JIC 350 bar FOR
TU-16 S505-16IT Tee 16 mm 7/8-14 JIC 350 bar FOR
TU-20 S505-20IT Tee 20 mm 1.1/16-12 JIC 300 bar FOR
TU-25 S505-25IT Tee 25 mm 1.5/16-12 JIC 290 bar FOR
TU-32 S505-30IT Tee 30-32 mm 1.5/8-12 JIC 240 bar FOR
TU-38 S505-38IT Tee 38 mm 1.7/8-12 JIC 250 bar FOR
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
