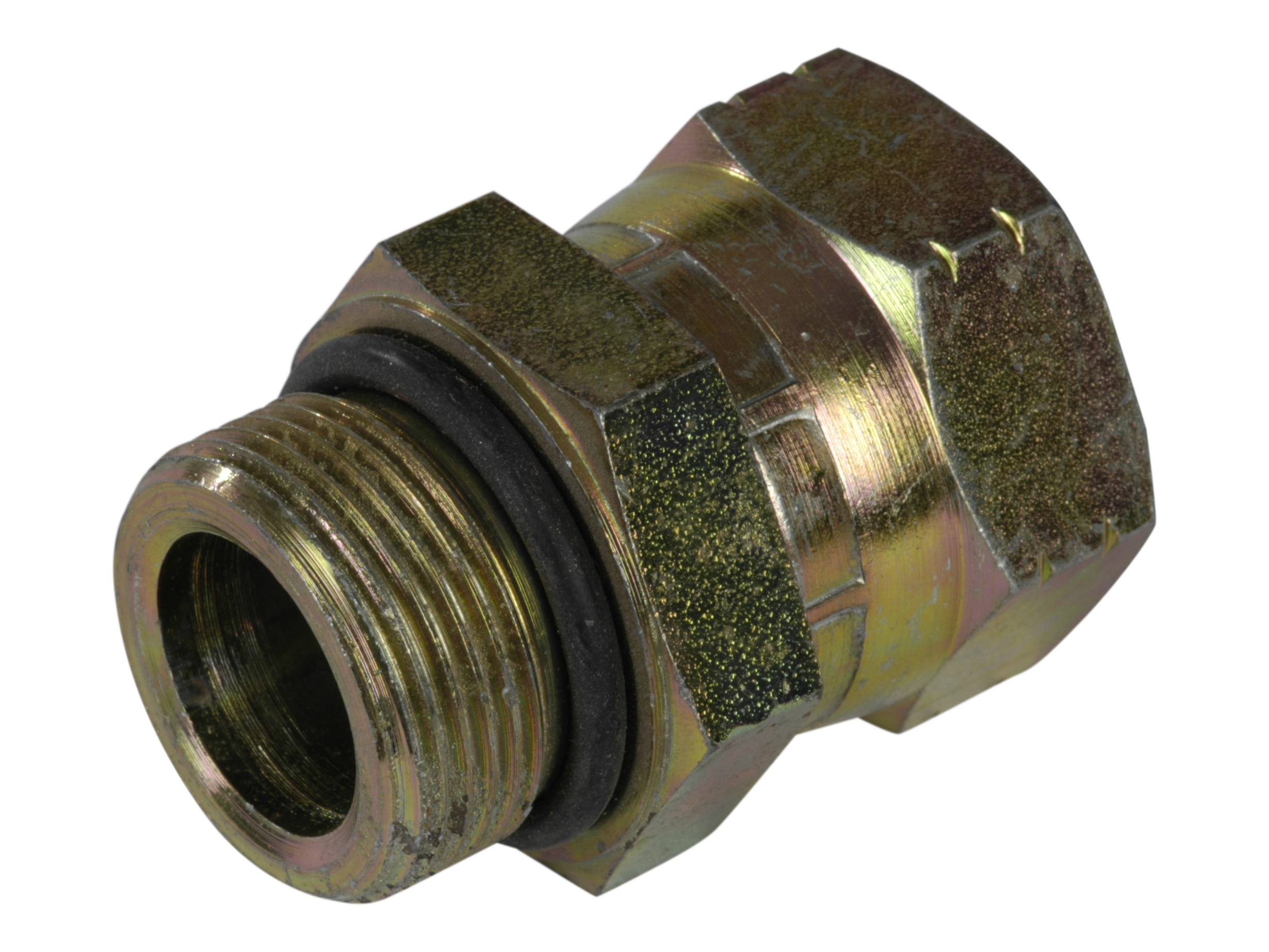

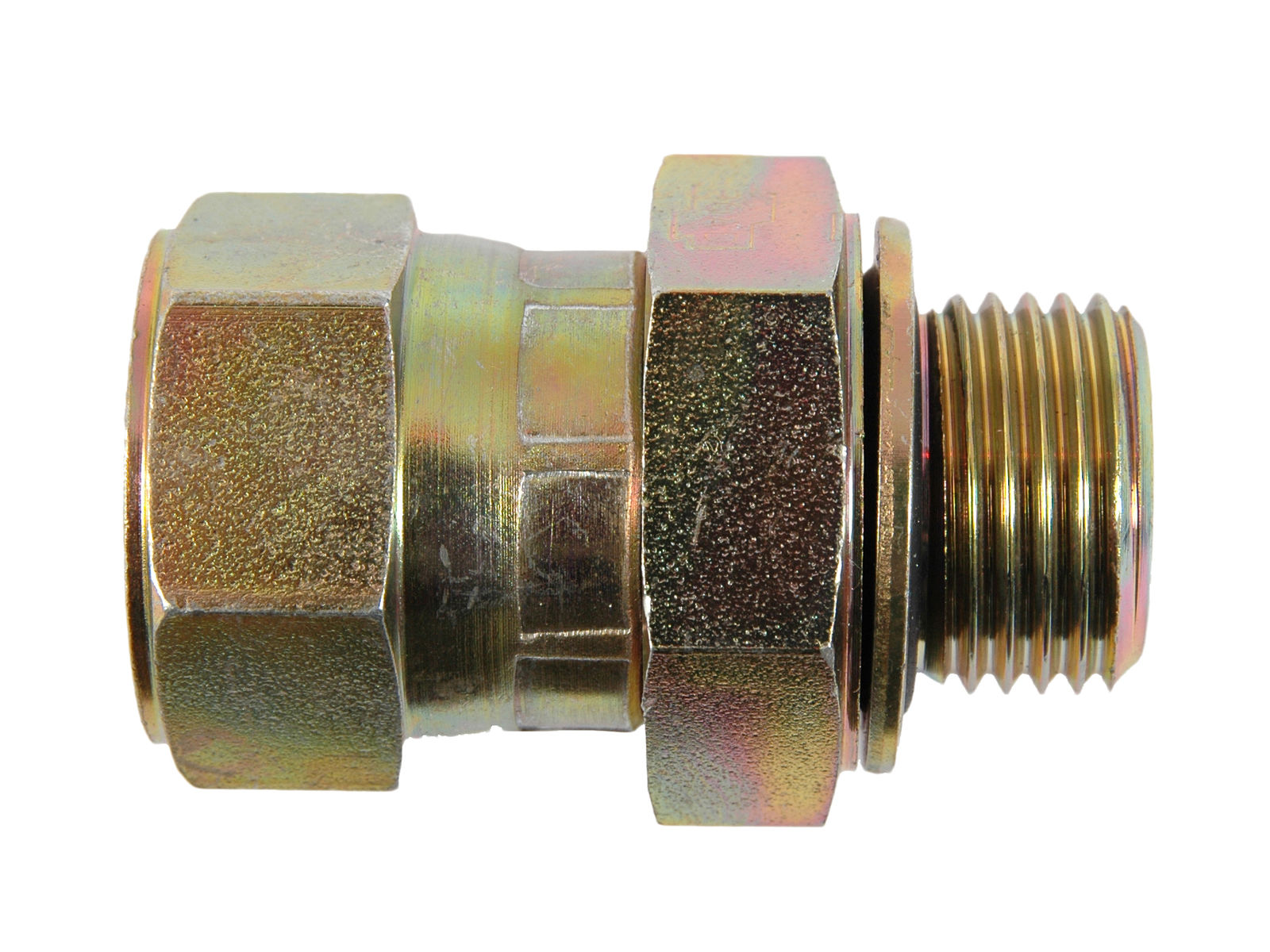

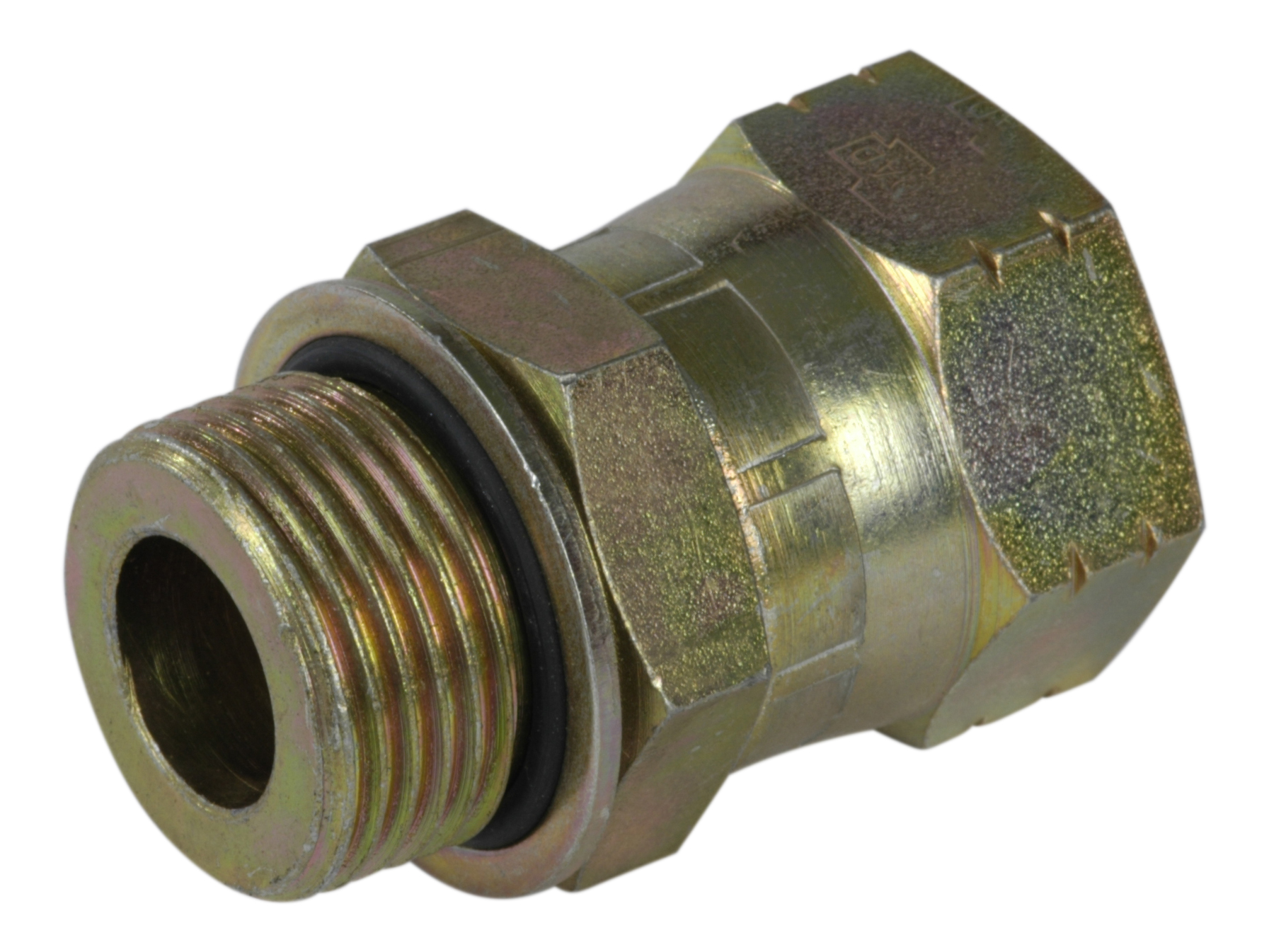

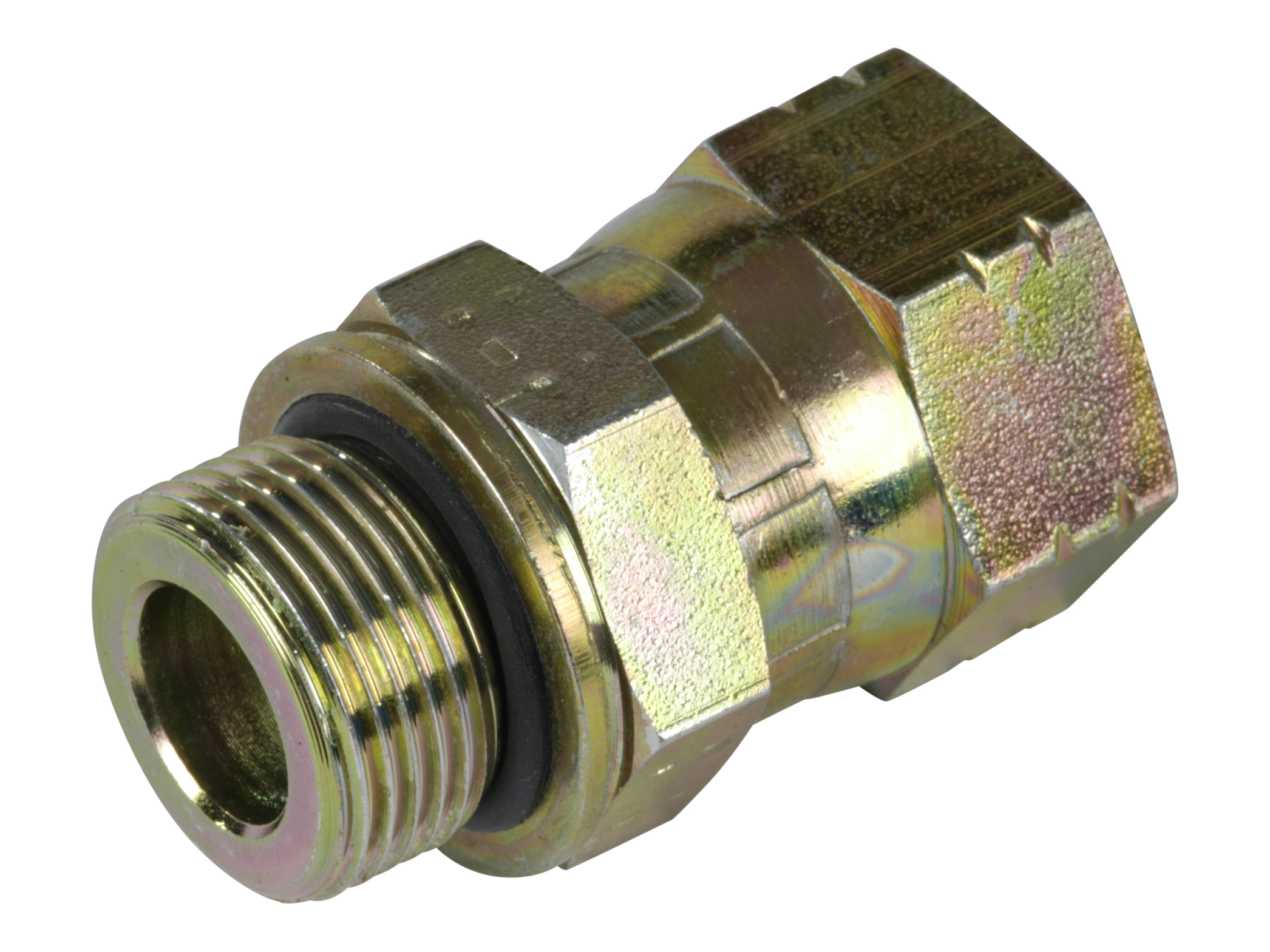

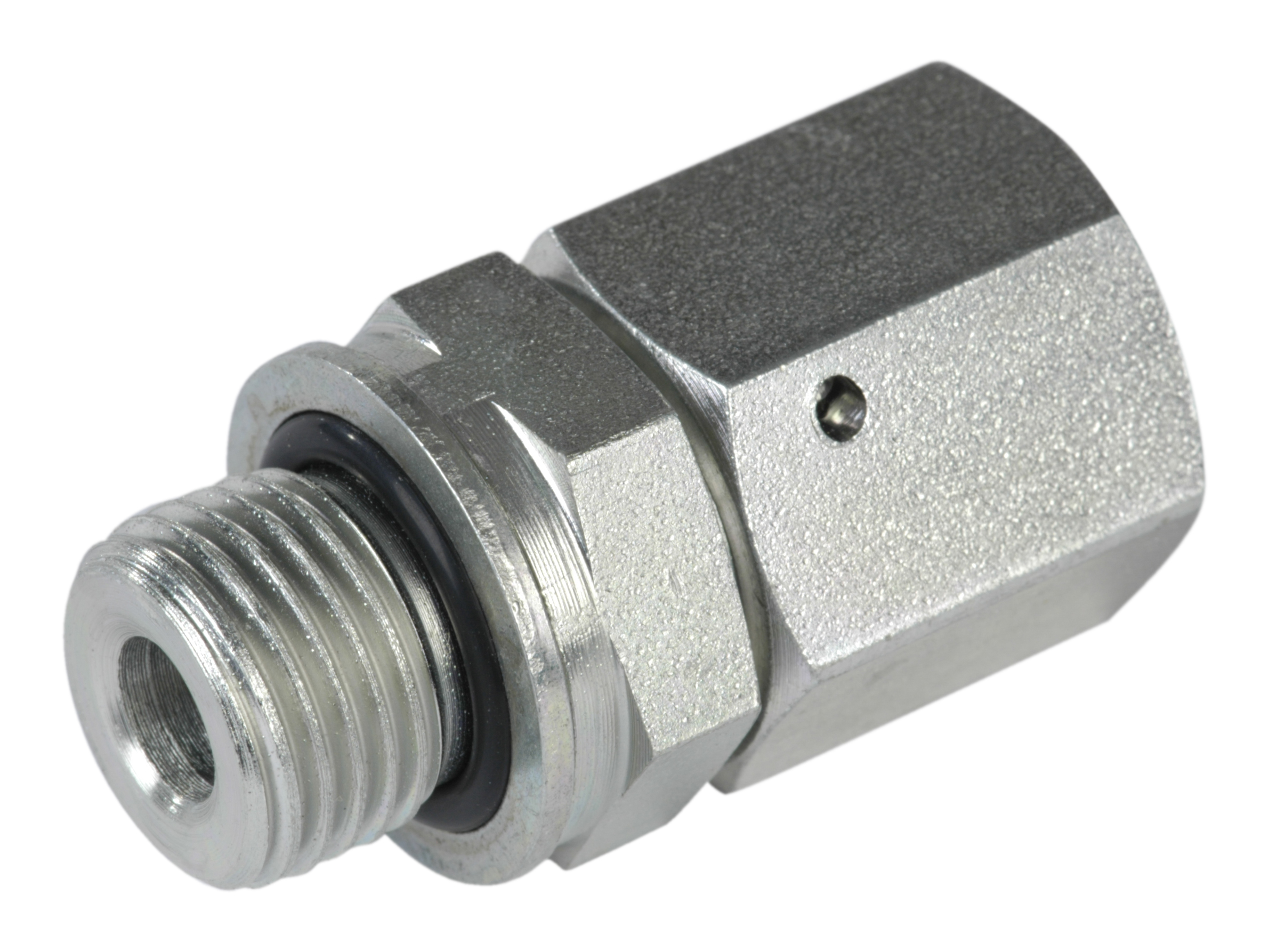

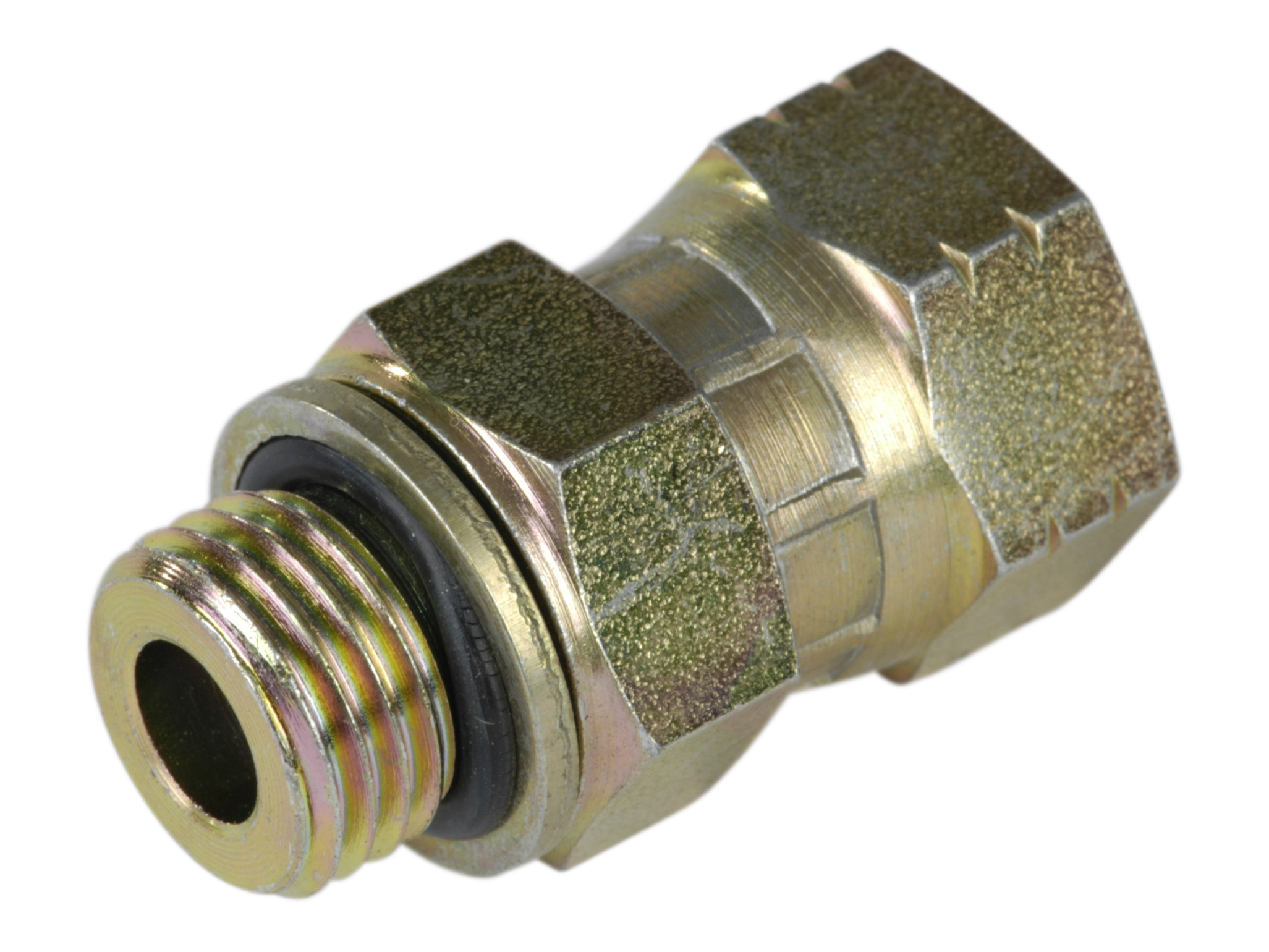

Adapter MM male x JIC union nut FG / JEVGEM

S190-06-10M adaptor with nut

S190-10-14M adaptor with nut

S190-12-16M adaptor with nut

S190-16-22M adaptor with nut

S190-20-27M adaptor with nut

S190-25-33M adaptor with nut

SELECT VARIANT

Partnumber	Description	Thread outer metric	Thread inner	Pressure max.	Brand Name
FG-06-10	S190-06-10M adaptor with nut	M10x1	7/16-20 JIC	450 bar	FOR
FG-10-14	S190-10-14M adaptor with nut	M14x1,5	9/16-18 JIC	350 bar	FOR
FG-12-16	S190-12-16M adaptor with nut	M16x1,5	3/4-16 JIC	350 bar	FOR
FG-16-22	S190-16-22M adaptor with nut	M22x1,5	7/8-14 JIC	350 bar	FOR
FG-20-27	S190-20-27M adaptor with nut	M27x2	1.1/16-12 JIC	300 bar	FOR
FG-25-33	S190-25-33M adaptor with nut	M33x2	1.5/16-12 JIC	290 bar	FOR

Angle

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Material

Steel

Surface treatment

Electro-galvanized / White chromatized
