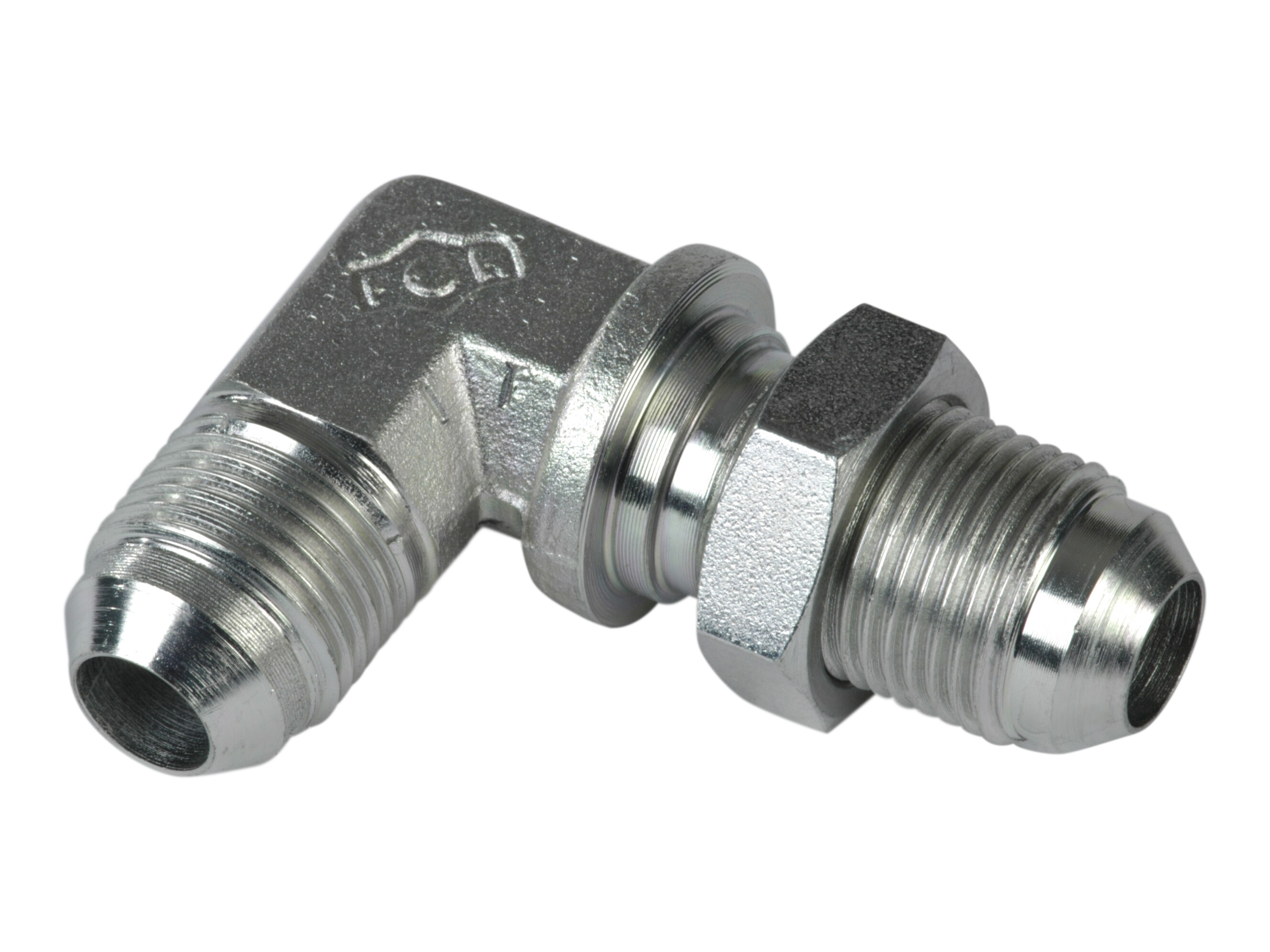

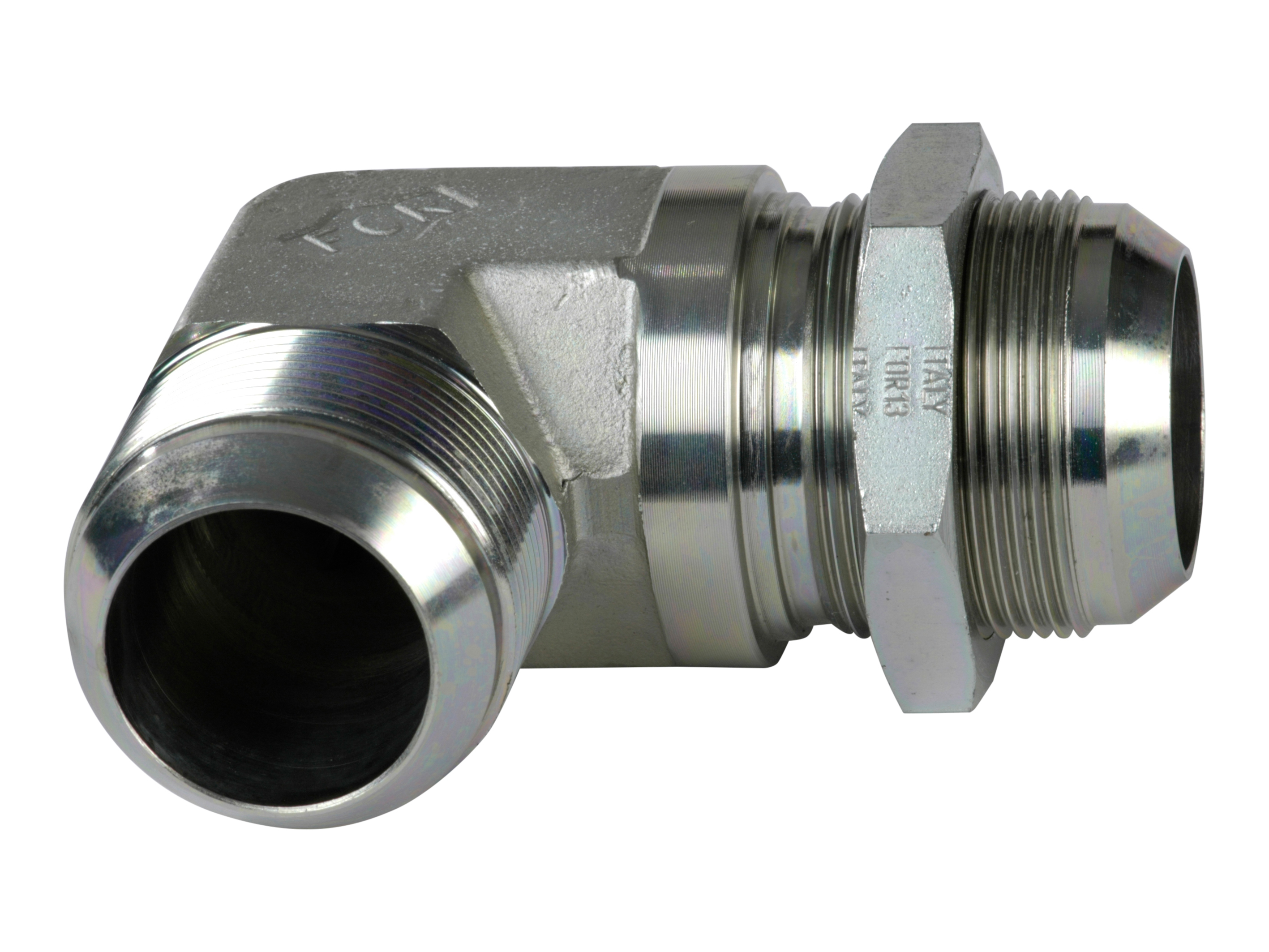

Bulkhead adapter 90° elbow JIC x JIC - CUP / JWSV

Bulkhead adapter 90° elbow JIC x JIC - CUP / JWSV

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Brand Name
CUP-06 S650-06U bulkhead elbow 6 mm 7/16-20 JIC 450 bar FOR
CUP-08 S650-08U bulkhead elbow 8 mm 1/2-20 JIC 416 bar FOR
CUP-10 S650-10U bulkhead elbow 10 mm 9/16-18 JIC 350 bar FOR
CUP-12 S650-12U bulkhead elbow 12 mm 3/4-16 JIC 350 bar FOR
CUP-16 S650-16U bulkhead elbow 16 mm 7/8-14 JIC 350 bar FOR
CUP-20 S650-20U bulkhead elbow 20 mm 1.1/16-12 JIC 300 bar FOR
CUP-25 S650-25U bulkhead elbow 25 mm 1.5/16-12 JIC 290 bar FOR
CUP-32 S650-30U bulkhead elbow 30 mm 1.5/8-12 JIC 240 bar FOR
CUP-38 S650-38U bulkhead elbow 38 mm 1.7/8-12 JIC 250 bar FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Surface treatment
Electro-galvanized / White chromatized
