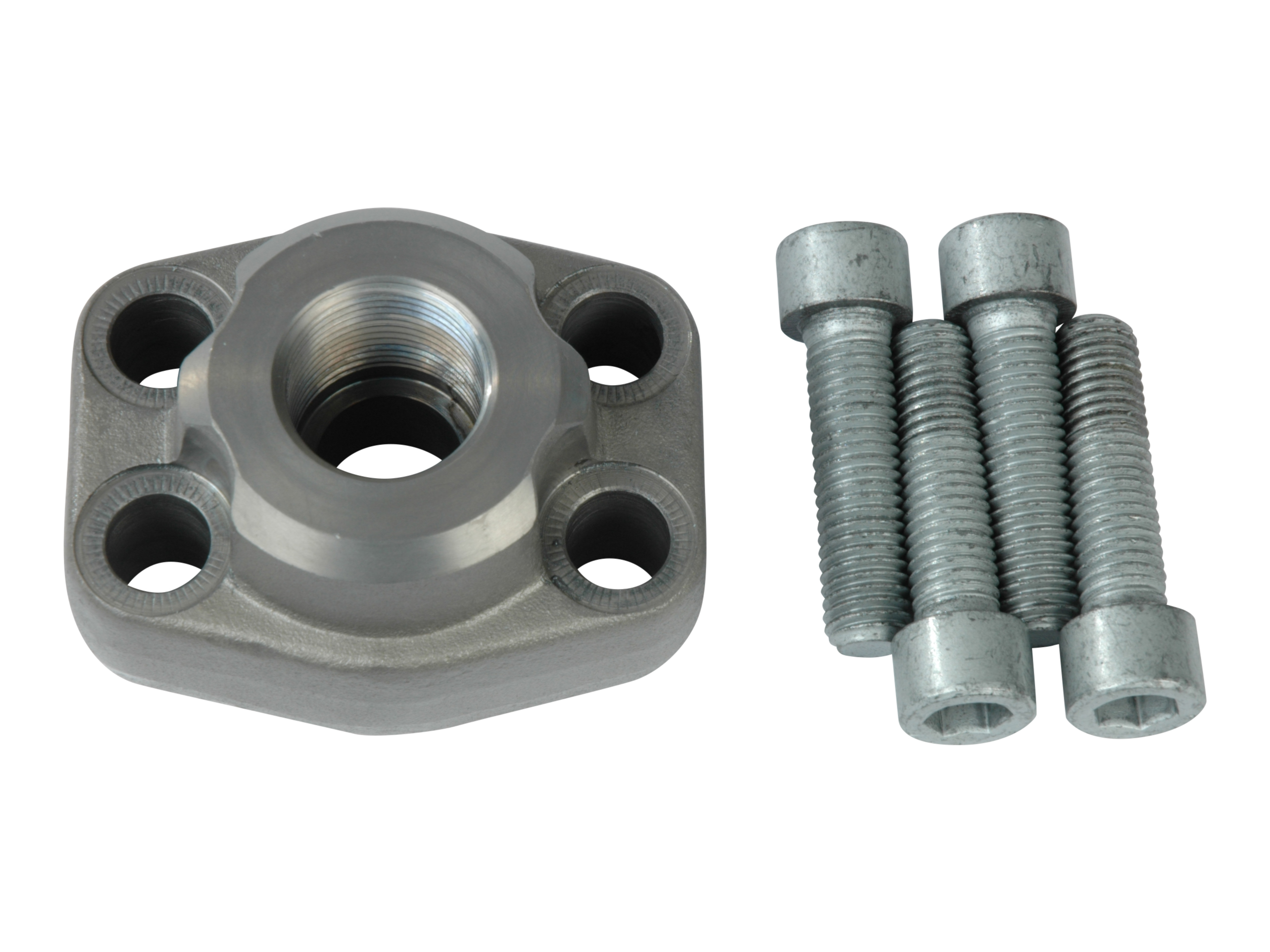

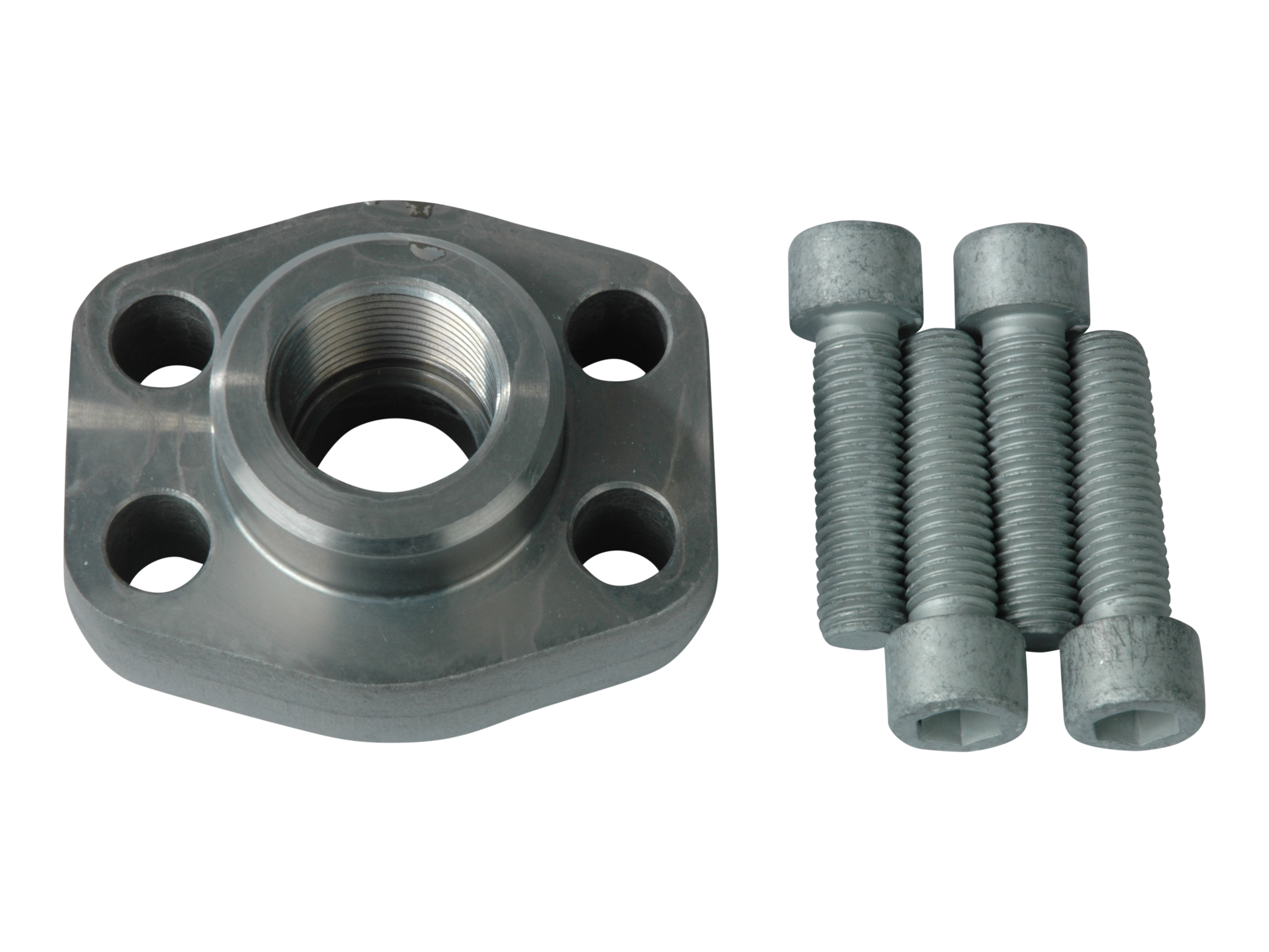

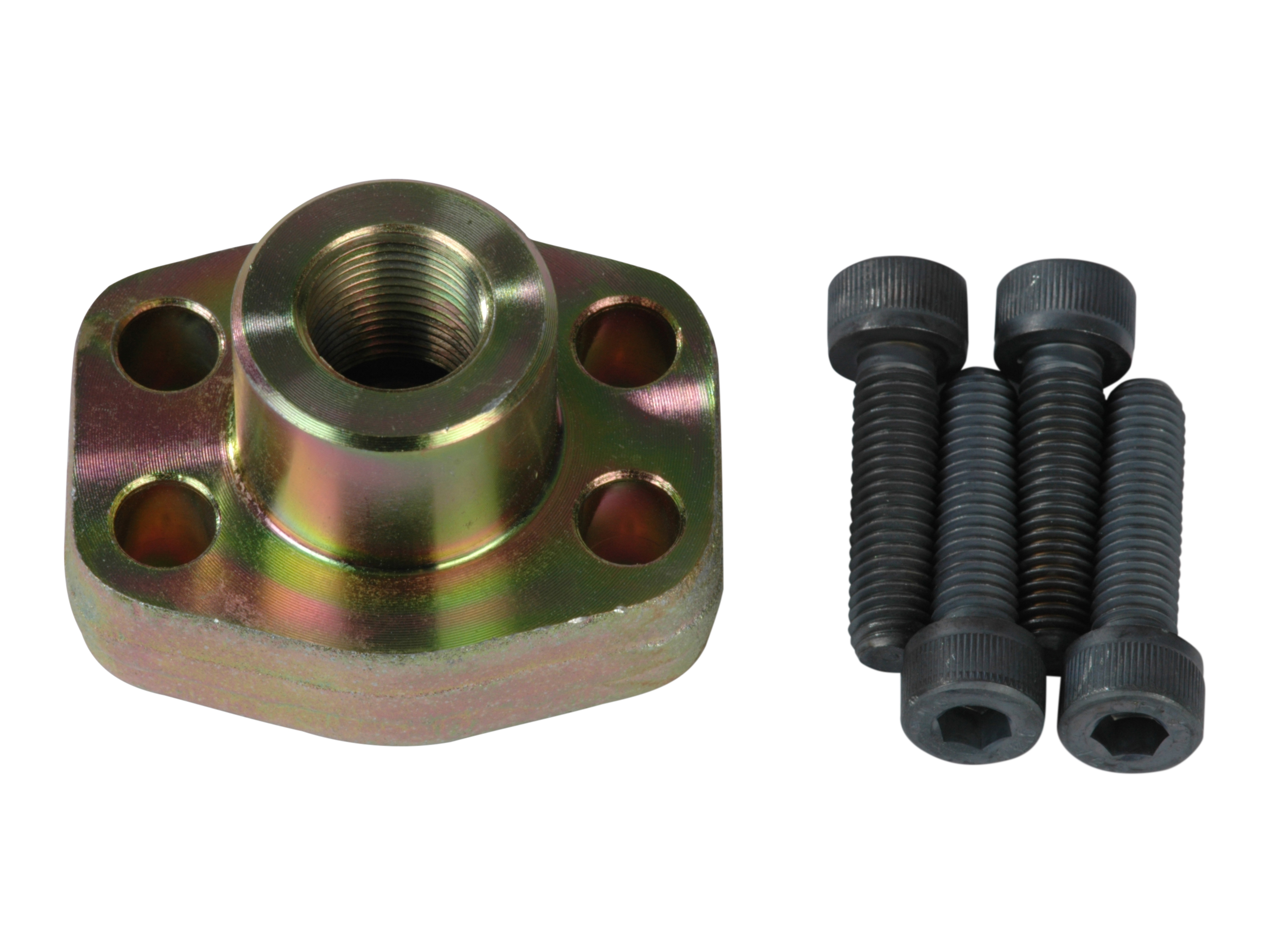

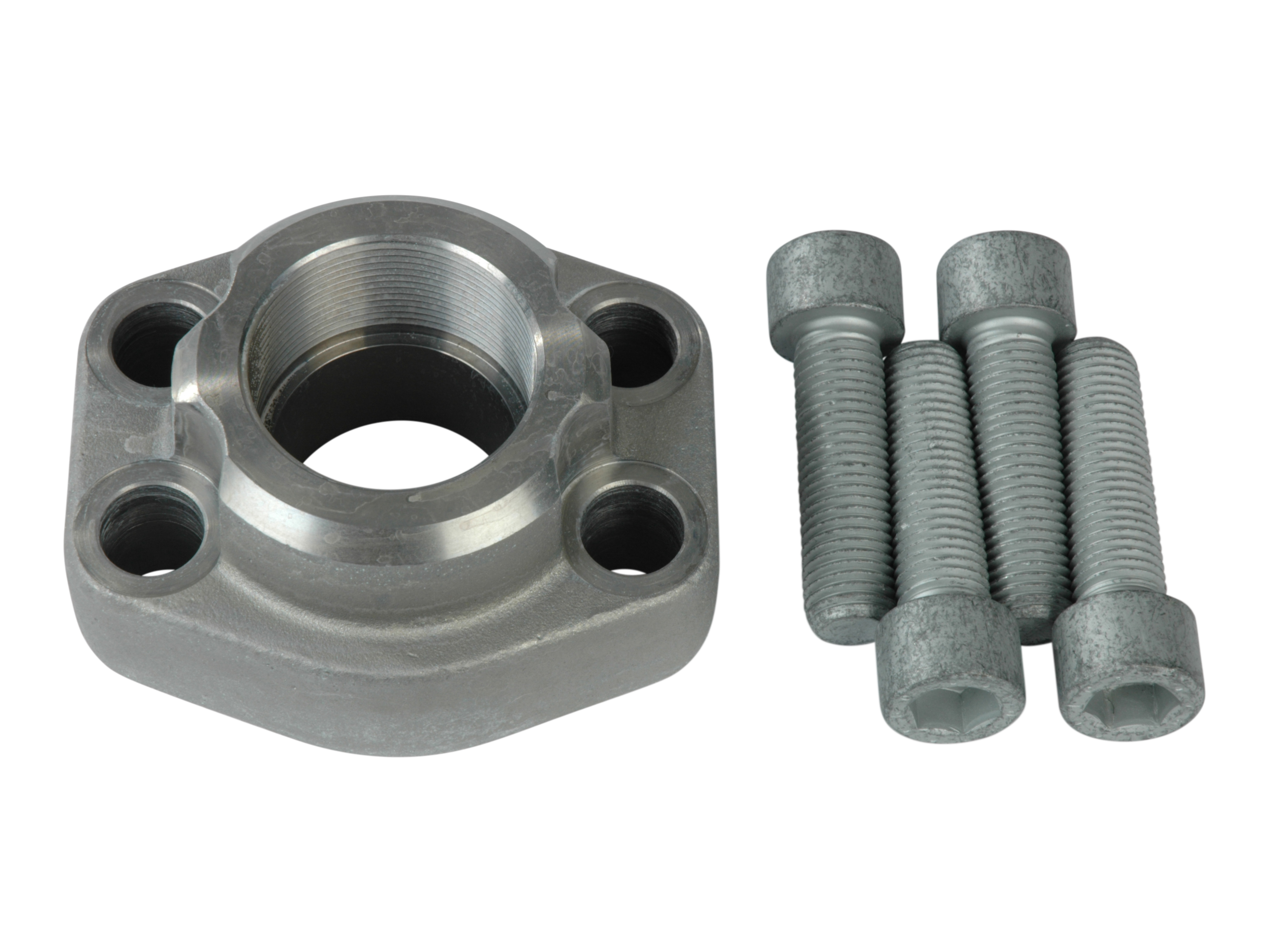

Threaded flange 0° SAE 6000 PSI x BSP female with O-ring and MM bolts

VÆLG VARIANT

Varenummer	Beskrivelse	Flange SAE/DIN	Flange	Gevind indvendig
AFS401G-038M	Threaded flange 1/2" SAE6000 x 3/8" BSP - complete	6000 PSI	1/2 "	G 3/8 BSP
AFS401GM	Threaded flange 1/2" SAE6000 x 1/2" BSP - complete	6000 PSI	1/2 "
AFS402G-012M	Threaded flange 3/4" SAE6000 x 1/2" BSP - complete	6000 PSI	3/4 "	G 1/2 BSP
AFS402GM	Threaded flange 3/4" SAE6000 x 3/4" BSP - complete	6000 PSI	3/4 "
AFS403G-034M	Threaded flange 1" SAE6000 x 3/4" BSP - complete	6000 PSI	1 "
AFS403GM	Threaded flange 1" SAE6000 x 1" BSP - complete	6000 PSI	1 "
AFS404G-100M	Threaded flange 1.1/4" SAE6000 x 1" BSP - complete	6000 PSI	1.1/4 "
AFS404GM	Threaded flange 1.1/4" SAE6000 x 1.1/4" BSP - complete	6000 PSI	1.1/4 "
AFS405G-114M	Threaded flange 1.1/2" SAE6000 x 1.1/4" BSP - complete	6000 PSI	1.1/2 "	G 1.1/4 BSP
AFS405GM	Threaded flange 1.1/2" SAE6000 x 1.1/2" BSP - complete	6000 PSI	1.1/2 "	G 1.1/2 BSP
AFS406G-112M	Threaded flange 2" SAE6000 x 1.1/2" BSP - complete	6000 PSI	2 "	G 1.1/2 BSP
AFS406GM	Threaded flange 2" SAE6000 x 2" BSP - complete	6000 PSI	2 "	G 2 BSP

Antal bolte

Flange SAE/DIN

6000 PSI

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Steel

Mærke navn

Havit

Overfladebehandling

Zinc-Nickel plated

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperatur maks.

+90

Temperatur min.

-40

Tryk maks.

420

Vinkel
