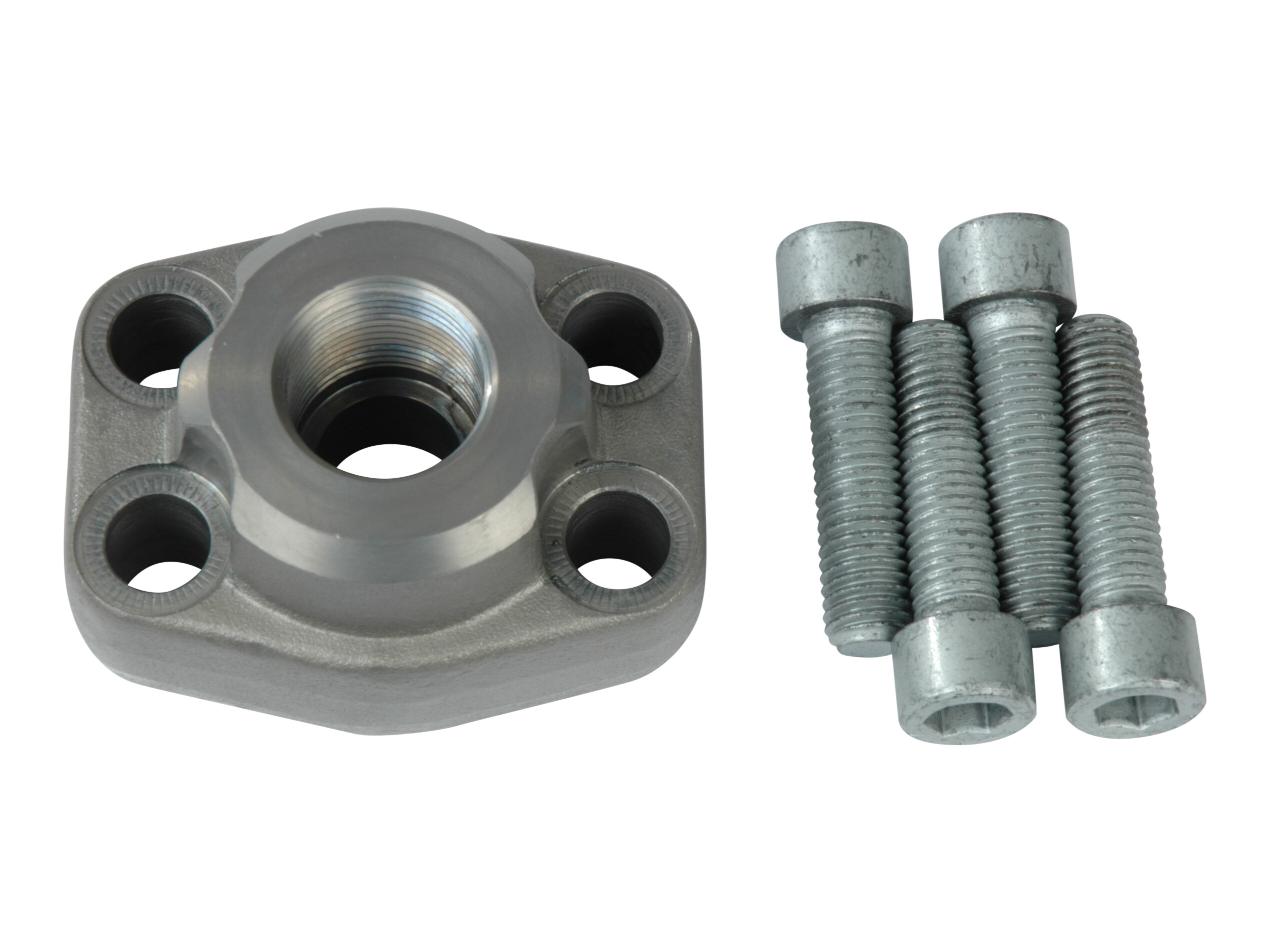

Threaded flange 1" SAE6000 x 3/4" BSP - complete

Threaded flange 1" SAE6000 x 3/4" BSP - complete

Gevindflange 1" SAE6000 x 3/4" BSP - komplet

Varenummer:

AFS403G-034M

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Reservedele (2)

O-ring 90S

Varenummer: 32.93X3.53S

Bolts (4) for SAE flanges - 10.9 ZiNi - UNC 7/16" x 1.3/4"

Varenummer: UNC716-134ZN

Specifikationer
Dimensioner og forsendelse

Angle

0 °

Bolt dimension

M12x45 mm

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

47.6 mm

Dimension C

57.2 mm

Dimension E

27.8 mm

Flange

1 "

Flange SAE/DIN

6000 PSI

Material

Steel

Number of bolts

O-ring

32.93X3.53 mm

Pressure max.

420 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 3/4 BSP

Pakke str.

0 pcs

Stregkode

5704295921495

Brutto vægt

0,84 Kg

Netto vægt

0,84 Kg

Oprindelsesland

DEU

Intrastat varekode

73079100

Produkt information
Målskitse

Gevindflange 1" SAE6000 x 3/4" BSP - komplet
