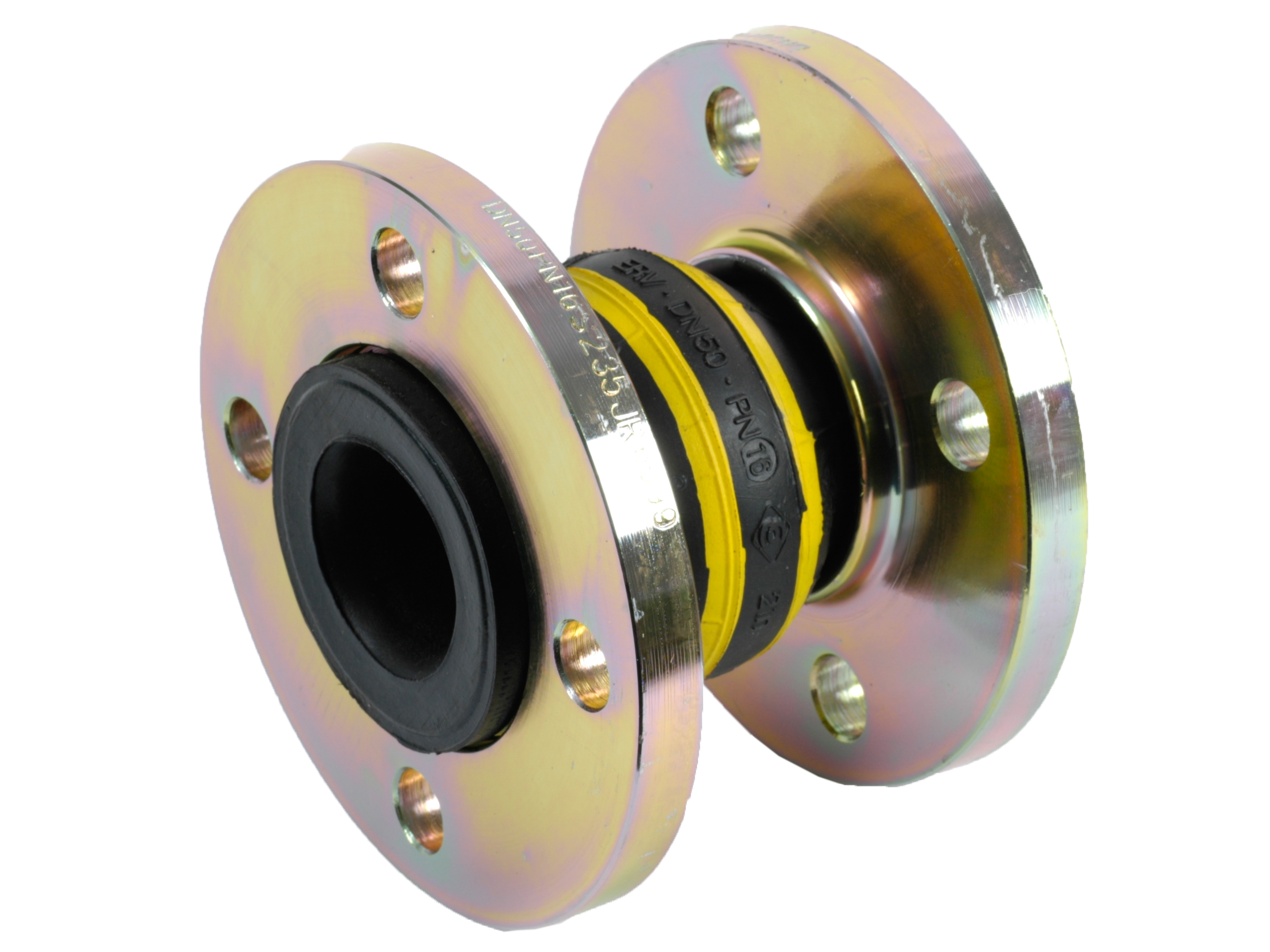

Rubber compensators Elaflex ERV-GS

Rubber compensators Elaflex ERV-GS

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter flange Size Diameter Bolt hole
0402100025 Elaflex pipe connection type Gelbstahl ERV 25.10 GS 115 mm 25 mm 14,0 mm
0402100032 Elaflex pipe connection type Gelbstahl ERV 32.10 GS 140 mm 32 mm 18,0 mm
0402100040 Elaflex pipe connection type Gelbstahl. 150 mm 40 mm 18,0 mm
0402100050 Elaflex pipe connection type Gelbstahl. 165 mm 50 mm 18,0 mm
0402100065 Elaflex pipe connection type Gelbstahl. 185 mm 65 mm 18,0 mm
0402100080 Elaflex pipe connection type Gelbstahl. 200 mm 80 mm 18,0 mm
0402100100 Elaflex pipe connection type Gelbstahl ERV 100.10 GS 220 mm 100 mm 18,0 mm
0402100125 Elaflex pipe connection type Gelbstahl. 250 mm 125 mm 18,0 mm
0402100150 Elaflex pipe connection type Gelbstahl. 285 mm 150 mm 22,0 mm
Brand Name
Elaflex
Pressure max.
16
Temperature intermittent max.
+100
Temperature max.
+90
Temperature min.
-20
Total length
130
