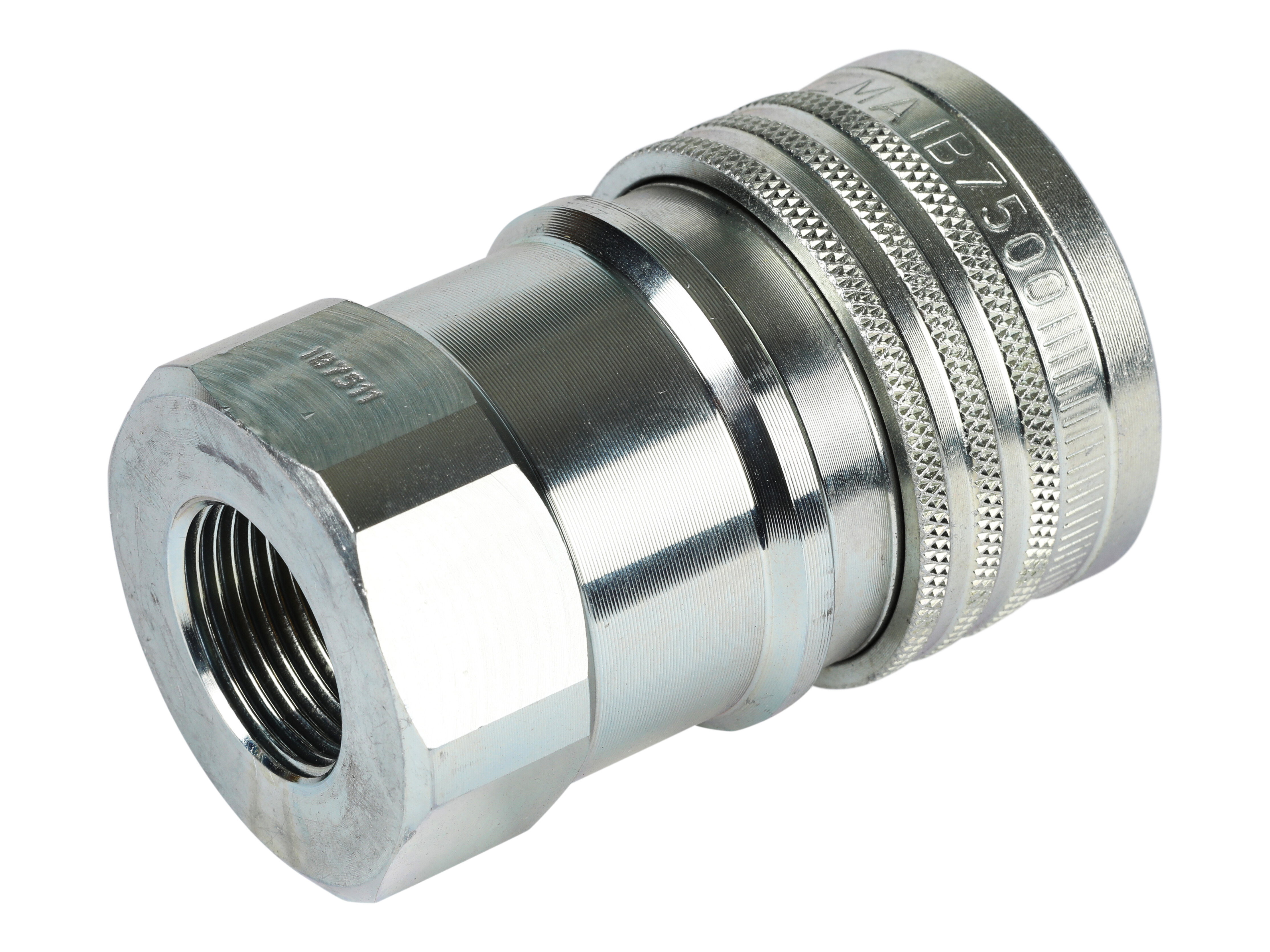

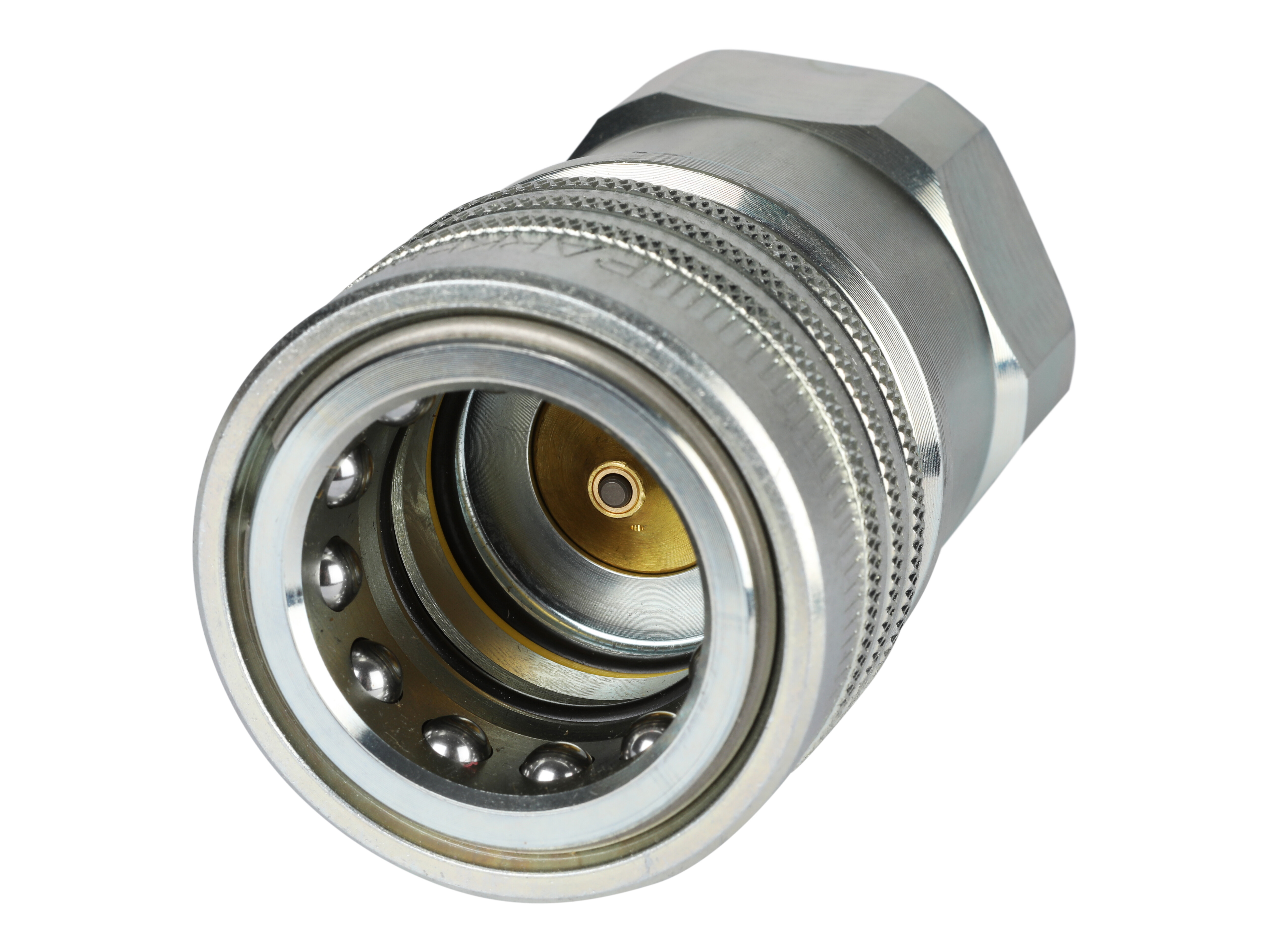

Coupling female - Tema (ISO-B) - DN20 - G3/4" w. eliminator
Quick-coupling with ball-lock.
With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
Artikelnummer:
TIB7511
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
DN
20 mm
Dimension A
G 3/4 BSP
Dimension D
52 mm
Dimension L
81 mm
Dimension L1
16 mm
Flow rate nominal LMin
135 lpm
Hexagon
46 mm
Material
Steel
Model code
IB7511
Pressure eliminator
Yes
Pressure max.
300 bar
Sealing material
NBR
Size
3/4 "
Standard ISO
ISO 7241-1-B
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread inner
G 3/4 BSP
Package size
0 pcs
Barcode
5704334470618
Gross weight
1,05 Kg
Net weight
1,05 Kg
Country of origin
SWE
Intrastat code
84812010
Quick-coupling with ball-lock.
With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
