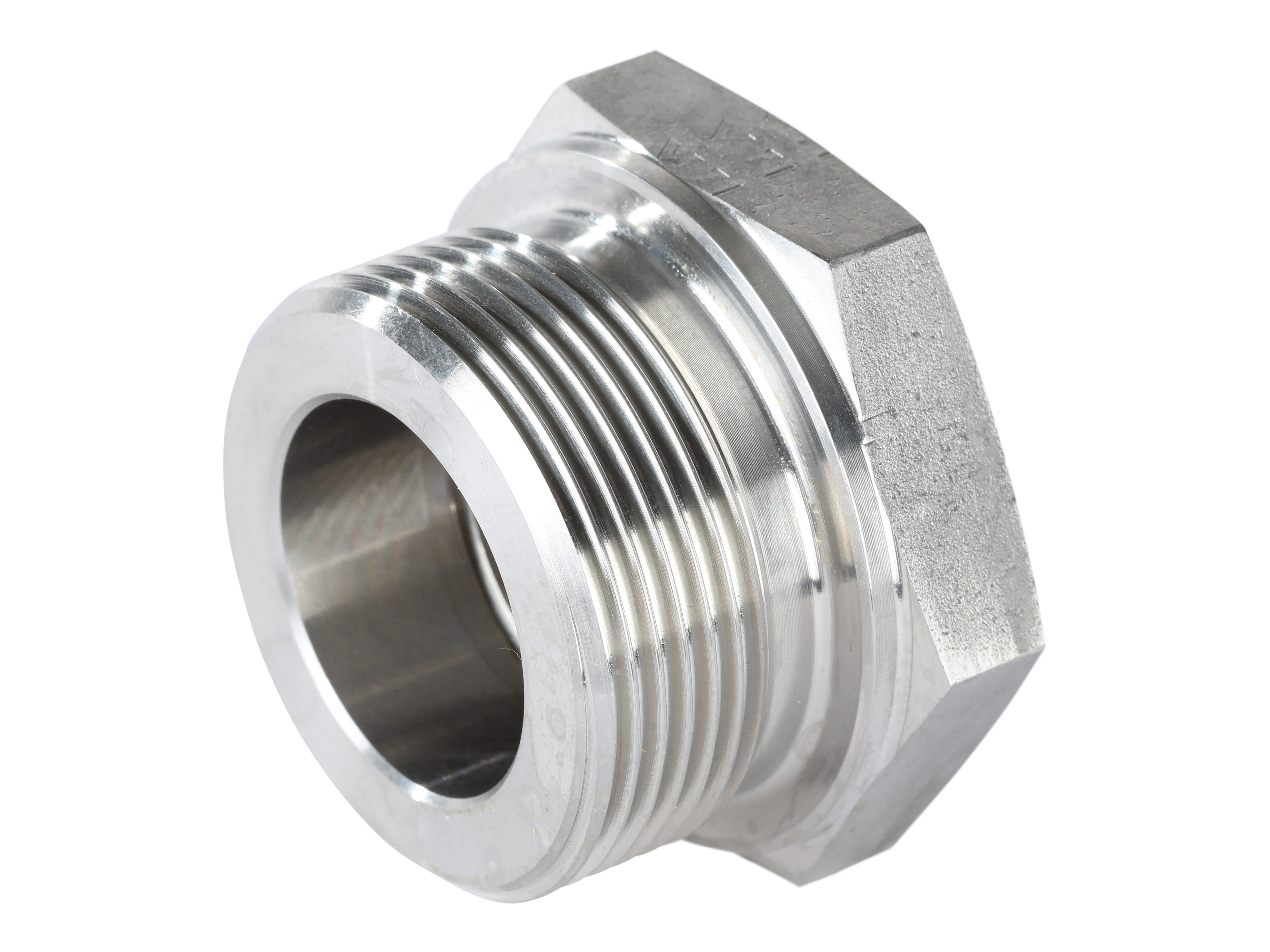

SFRI-20-12
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
RI11/4-3/4/7
Package size:
0 pcs
Min. order quantity is:
1 pcs
Gevind indvendig
G 3/4 BSP
Gevind udvendig
G 1.1/4 BSP
L1
32 mm
L2
16 mm
Materiale
Stainless steel
Materialekvalitet
1.4571 / AISI316Ti
S1
50 mm
Temperatur maks.
+400 °C
Temperatur min.
-60 °C
Thread T1
G 1.1/4 BSP
Thread T2
G 3/4 BSP
Tryk maks.
250 bar
Vinkel
0 °
i
20 mm
Package size
0 pcs
Barcode
5704295301884
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
