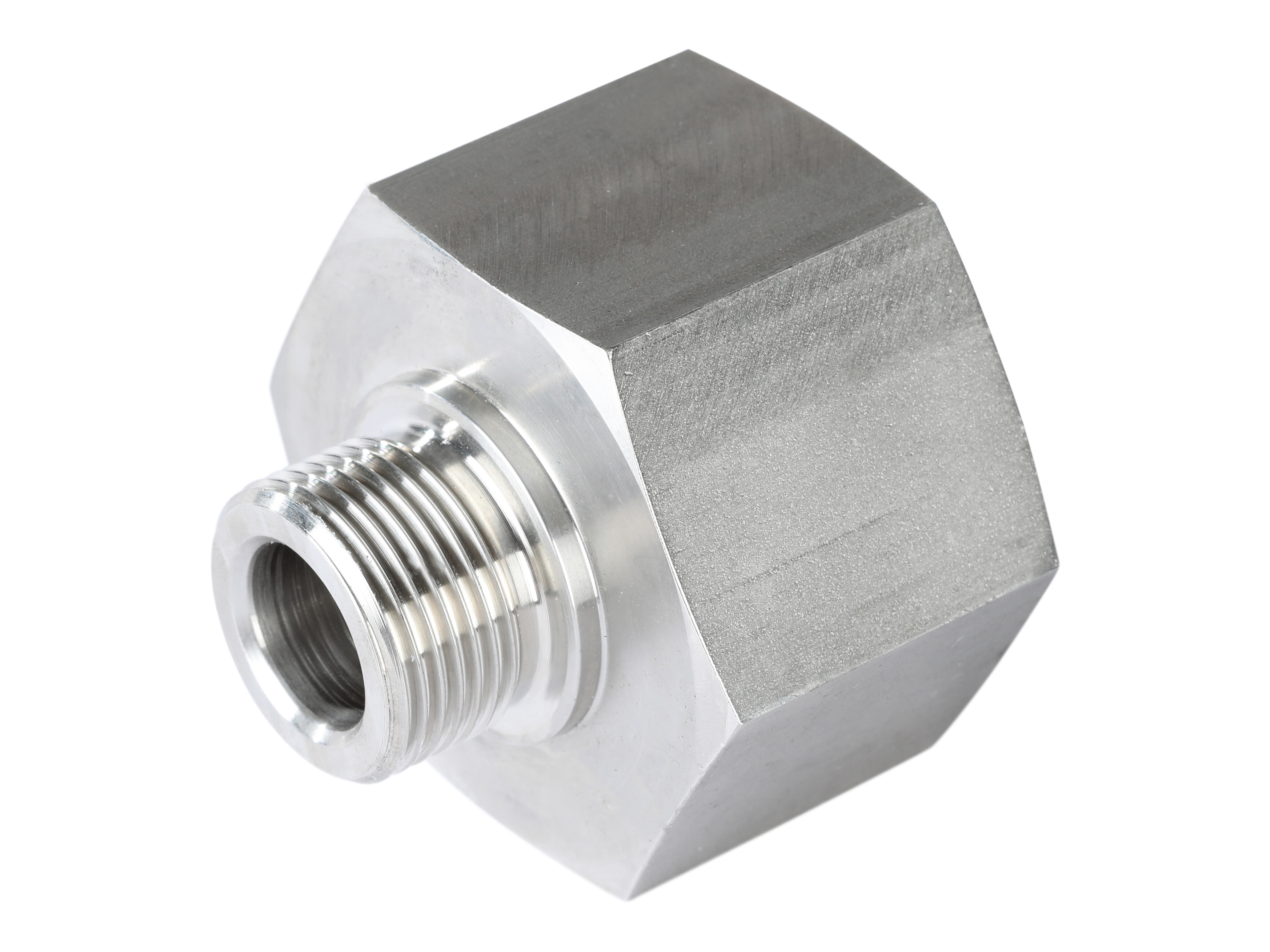

Reduction - 3/4" BSP x 1.1/4" BSP female - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
RI3/4-11/4/7
Package size:
1 pcs
Min. order quantity is:
1 pcs
Dimension D2
16 mm
Dimension L1
55 mm
Dimension L2
26.5 mm
Dimension S1
55 mm
Dimension i
16 mm
Gänga inv.
G 1.1/4 BSP
Gänga utv.
G 3/4 BSP
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
RI 3/4 x 1.1/4
Märke namn
Volz
Temperatur max.
+400 °C
Temperatur min.
-60 °C
Thread T1
G 3/4 BSP
Thread T2
G 1.1/4 BSP
Tillverkningsmaterial
Stainless steel
Tryck max.
250 bar
Vinkel
0 °
Package size
1 pcs
Barcode
5704295345338
Gross weight
0,52 Kg
Net weight
0,52 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
