Presskoppling 90°, Jic-9/16'', Ø3/8''

Insert with flare and nut with JIC female thread for mounting against adaptor with male thread.

Connection: JIC female thread with 37° cone face.

Sealing: Metal against metal (cone).

Varenummer:
P0606NJ90

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
REPLACED BY A990 PDKL14M
Varenummer: PLUG23M
Angle
90 °

Brand Name
I.M.M Hydraulics

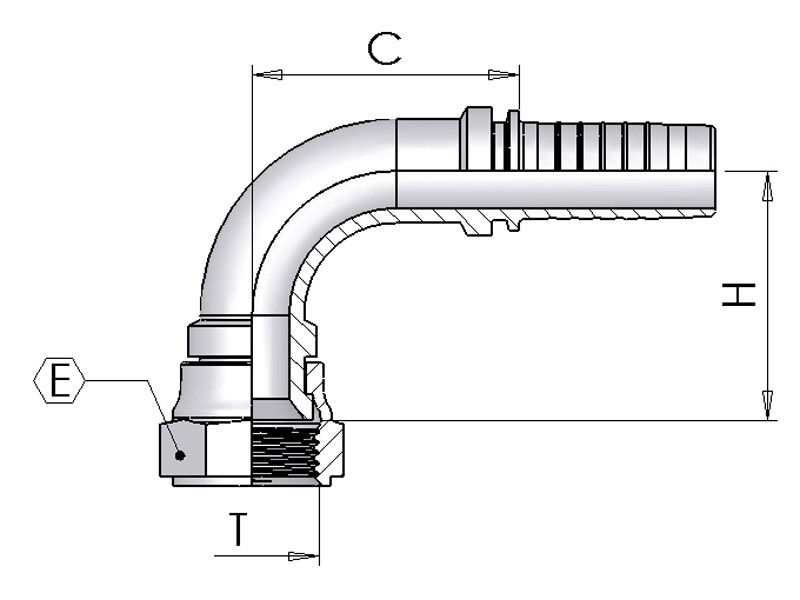

Dimension C
31 mm

Dimension E
19 mm

Dimension H
32 mm

Dimension T
9/16-18 JIC

Hose coupling type
For separate ferrule

Hose size
3/8 "

Material
Steel

Model code
0951-06-06

Surface treatment
Electro-galvanized / White chromatized

Thread
9/16-18 JIC

Torque tightening
27 - 30 Nm
Pakke str.
0 pcs

Stregkode
5704295690810

Brutto vægt
0,07 Kg

Netto vægt
0,07 Kg

Oprindelsesland
ita

Intrastat varekode
73269098

Insert with flare and nut with JIC female thread for mounting against adaptor with male thread.

Connection: JIC female thread with 37° cone face.

Sealing: Metal against metal (cone).
