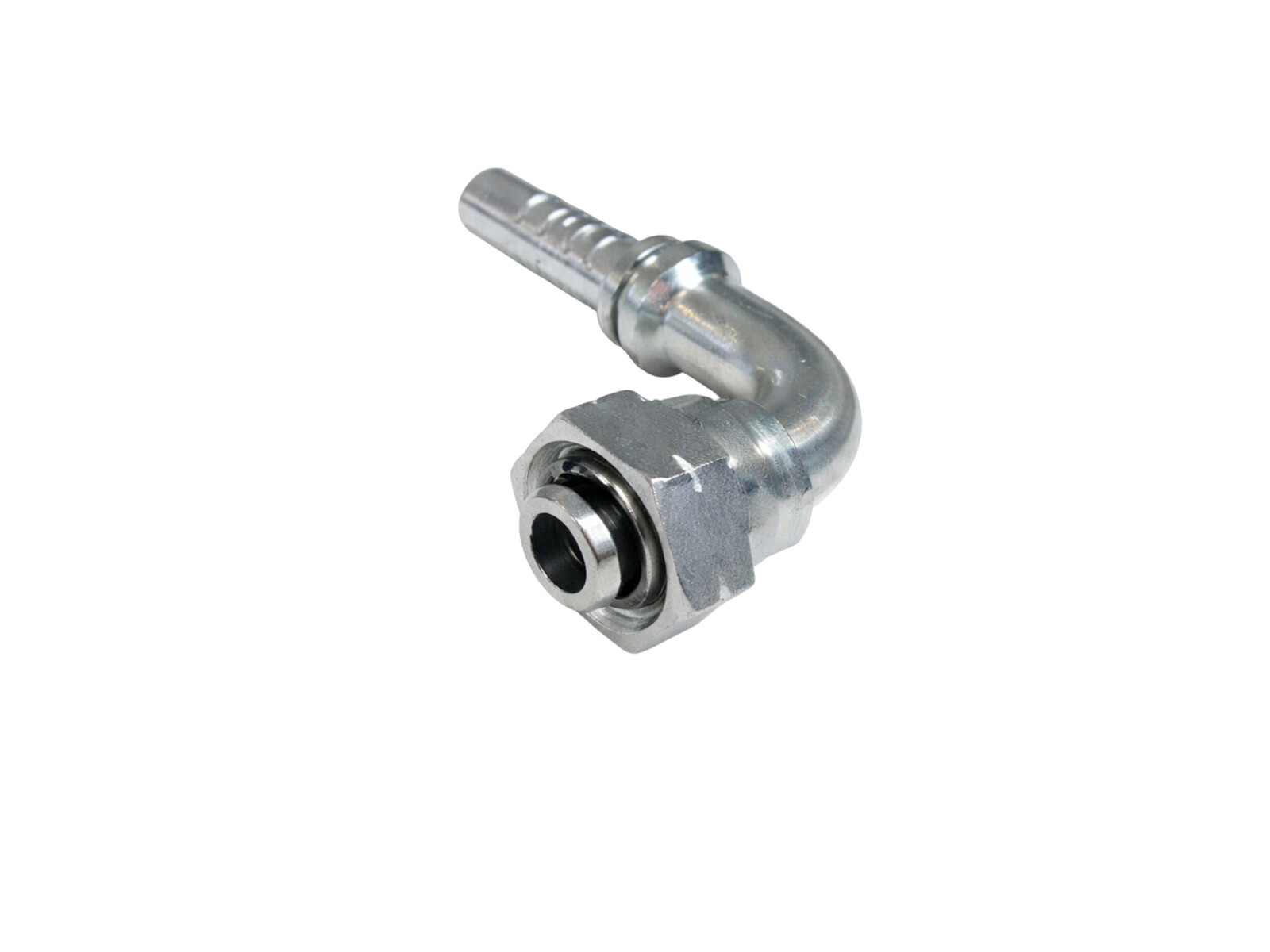

Insert 3/8" - M16x1.5 nut 10L 90°

Insert with MM female thread in nut and 24° cone face with o-ring.

Connection: MM female thread and 24° cone face with o-ring (DIN2353).

Sealing: O-ring against cone face.

Partnumber:
P0610RO16A90

Package size:
0 pcs

Min. order quantity is:
1 pcs
Gevindprop, 3/8" BSP, 3/8" NPT, 5/8" JIC/UNF, M16x1.5
Partnumber: PLUG03M
Diameter rør
10 mm

Dimension C
32 mm

Dimension E
19 mm

Dimension H
39 mm

Dimension T metrisk
M16x1,5

Materiale
Steel

Model kode
0185-06-16

Mærke navn
I.M.M Hydraulics

Overfladebehandling
Electro-galvanized / White chromatized

Pakningsmateriale
NBR

Serie
L

Slangekoblingstype
For separate ferrule

Slangestørrelse
3/8 "

Temperatur maks.
+100 °C

Temperatur min.
-30 °C

Tilspændingsmoment
30 Nm

Vinkel
90 °
Package size
0 pcs

Barcode
5704334222354

Gross weight
0,05 Kg

Net weight
0,05 Kg

Country of origin
ITA

Intrastat code
73269098

Insert with MM female thread in nut and 24° cone face with o-ring.

Connection: MM female thread and 24° cone face with o-ring (DIN2353).

Sealing: O-ring against cone face.
