Insert 3/8" - 11/16"-16 ORFS nut with backnut

Insert 3/8" - 11/16"-16 ORFS nut with backnut

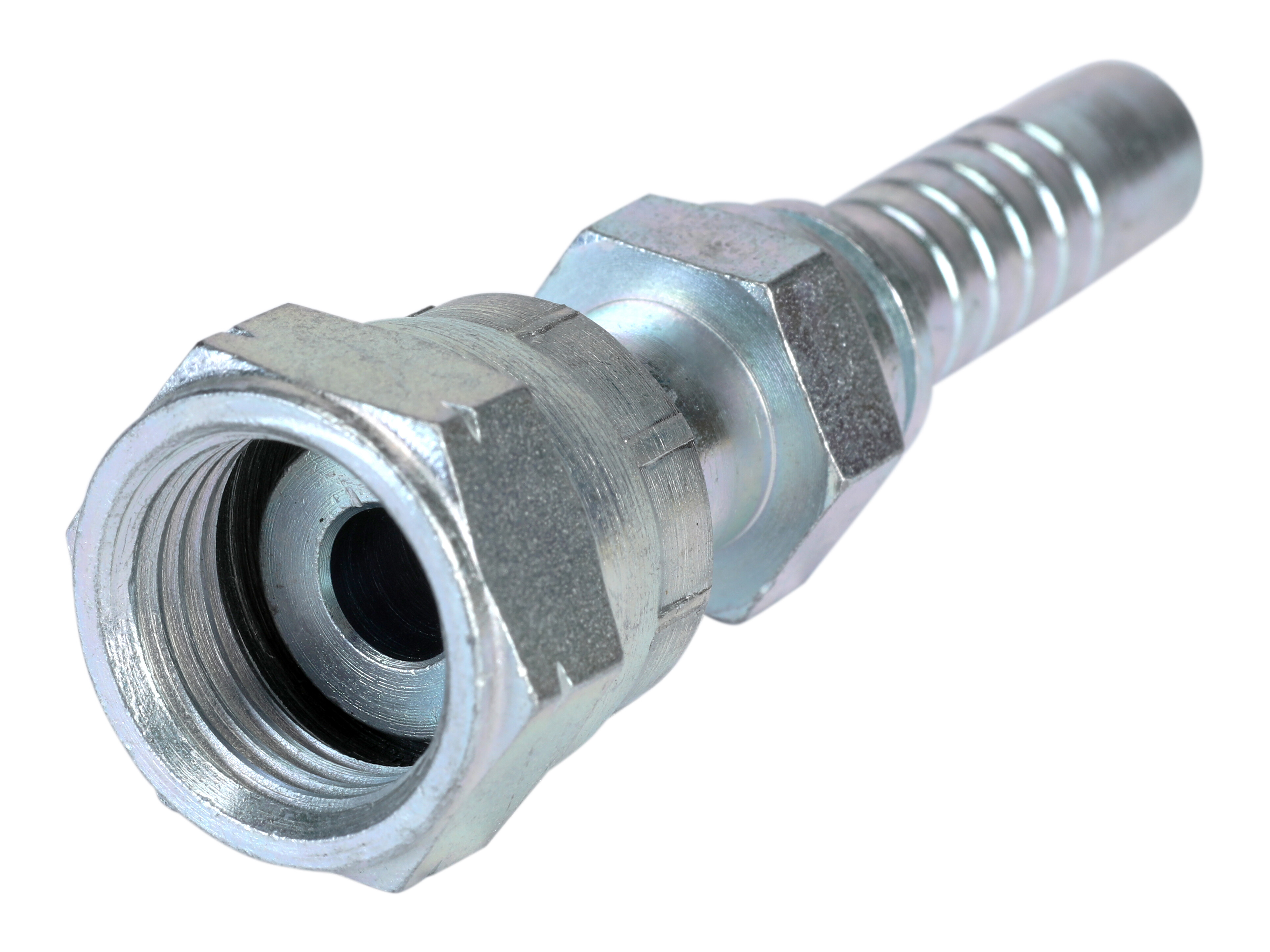

ORFS female insert coupling for assembling hydraulic hoses with a separate ferrule. The ORFS female nut connection with backnut provides the threaded interface to an ORFS male port or adapter, using the flat-face ORFS connection concept.

Selected for matching hose size and thread: 3/8 in hose I.D. with 11/16-16 ORFS inner thread. Zinc-plated surface treatment. Key external dimensions for installation space: cut-off C 34 mm, E 22 mm and E1 17 mm.

Typical Applications

Hydraulic hose assemblies using ORFS connections
Hose-end terminations where a separate ferrule is used

Partnumber:

P0606FFB

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

I.M.M Hydraulics

34 mm

22 mm

17 mm

Hose coupling type

For separate ferrule

Hose size

3/8 "

Model code

S05T-06-09

Surface treatment

Zinc-plated

11/16-16 ORFS

Package size

0 pcs

Barcode

5704334781820

Gross weight

0,05 Kg

Net weight

0,05 Kg

Country of origin

ITA

Intrastat code

73269098

Product information
Measure sketch

Typical Applications

Hydraulic hose assemblies using ORFS connections
Hose-end terminations where a separate ferrule is used
