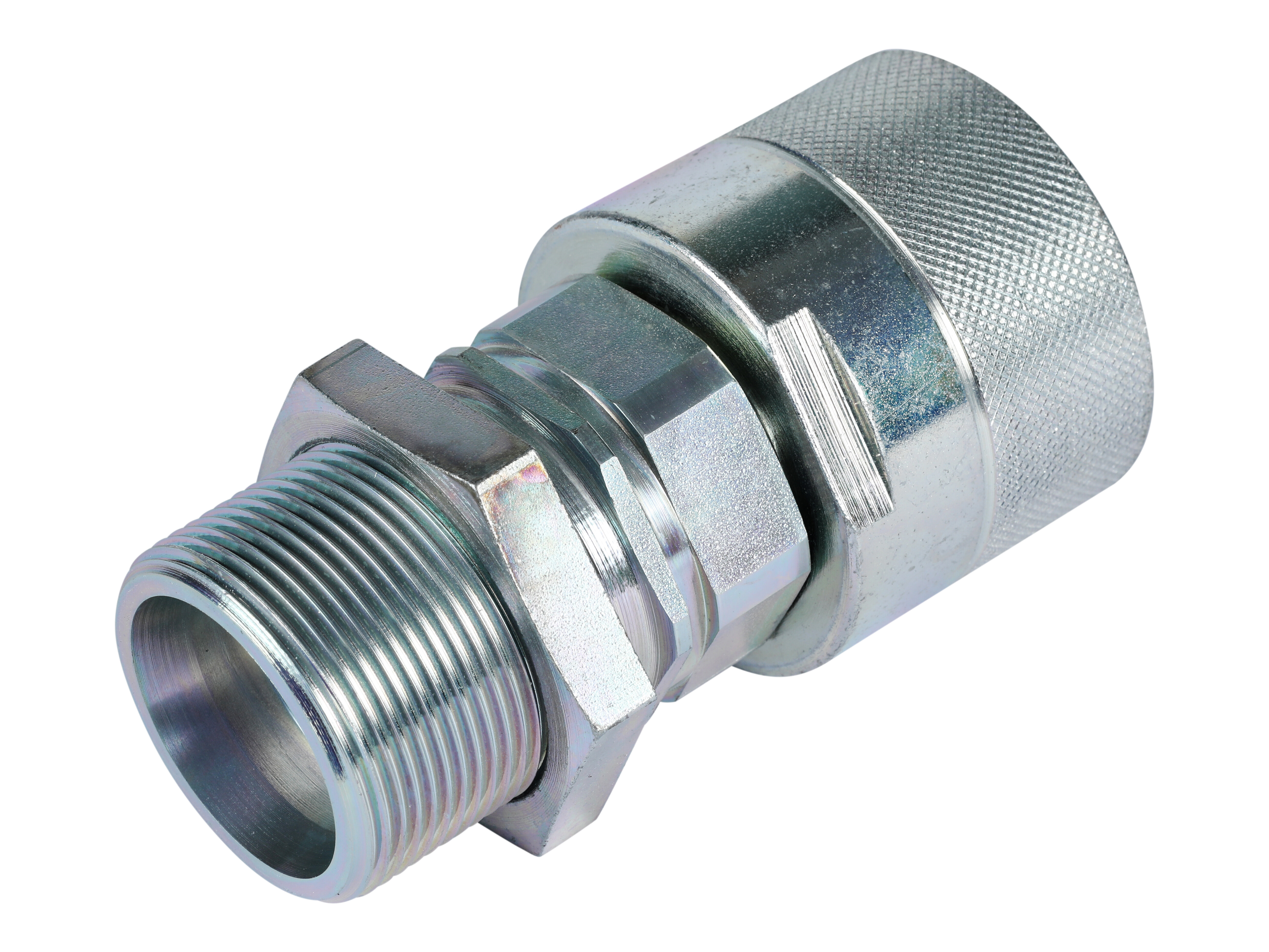

Screw coupling male HS - DN25 - M42x2 (38S) bulkhead
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
Artikelnummer:
HS20-2-T3042
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
M42x2
Brand Name
Stauff
Connection
Screw
D2
30 mm
Diameter pipe
30 mm
Disconnection
Screw
Field of application
Construction Machinery
Flow rate nominal LMin
160 lpm
ISO size
25
L2
106 mm
L3
40 mm
Material
Steel
Model code
QRC-HS-25-M-30SB-B-W66
Pressure burst min.
1100 bar
Pressure max.
300 bar
Pressurized connection
Male Tip/Female Body up to 33% of the Working Pressure with Tools
SW
17, 46 mm
Sealing material
NBR
Series
S
Size
1 "
Spillage
12,3 ml
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M42x2
Förpackningsstorlek
0 pcs
Streckkod
5704295240701
Bruttovikt
0,82 Kg
Nettovikt
0,82 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
