Screw coupling female HSN - DN12.5 - 1/2" BSP female
Screw coupling female HSN - DN12.5 - 1/2" BSP female
Partnumber:
HSN-12-F-G08
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
G 1/2 BSP
Brand Name
Stauff
Burst Pressure
1750 Bar
Connection
Screw
Disconnection
Screw
Field of application
Construction Machinery, Industrial Hydraulic
Flowrate nominal LMin
90 lpm
ISO size
12.5

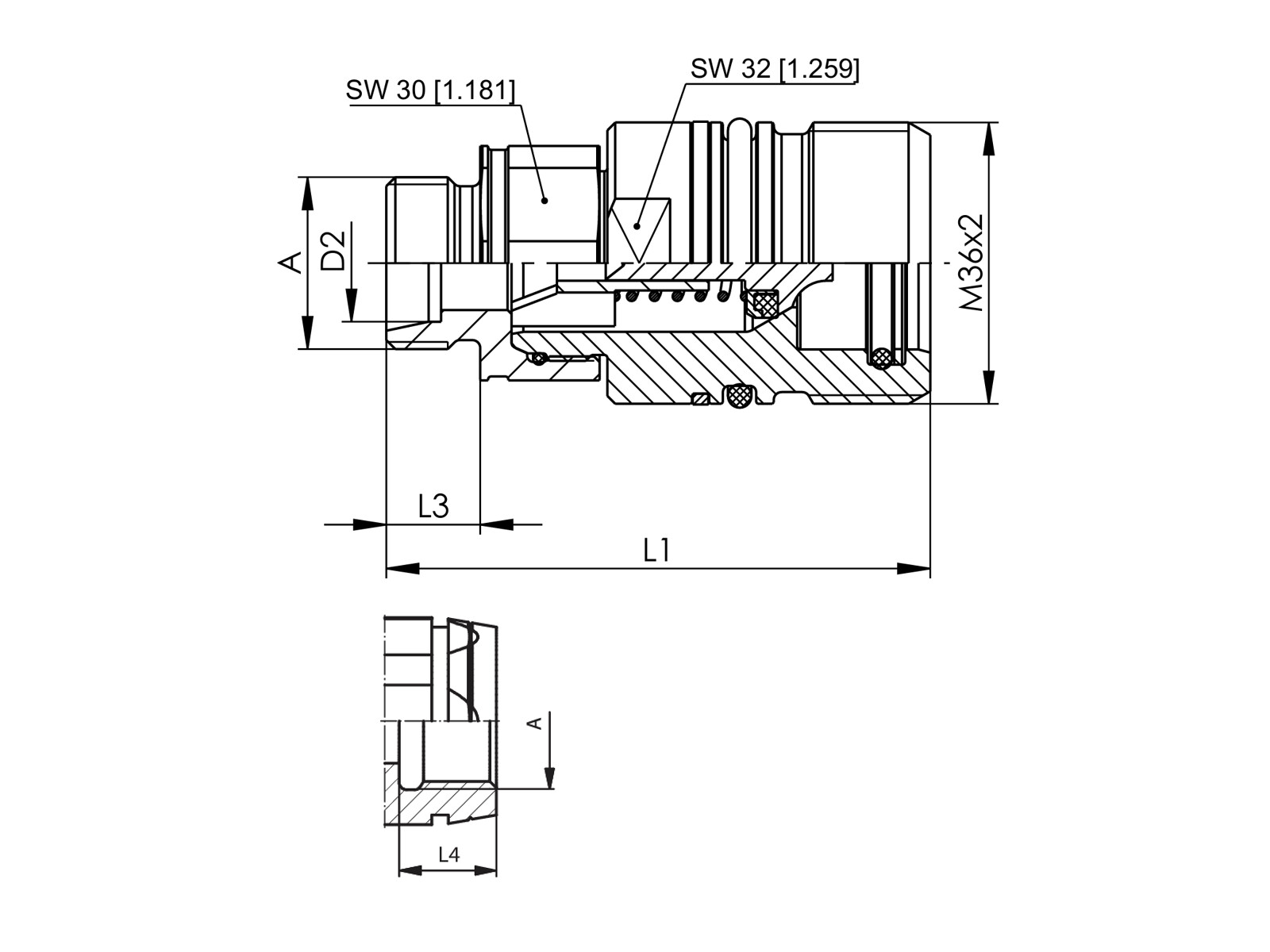

L1
70,5 mm
L4
15 mm
Material
Carbon steel
Model code
QRC-HSN-12-F-G08-BT-W3
Pressure max.
400 bar
Pressurized connection
Allowed
Sealing material
NBR, PTFE (Teflon®)
Size
1/2 "
Spillage
3,1 ml
Standard ISO
ISO 14541
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3852-2-A
Thread ISO standard
ISO 11926-1, ISO 6149-1
Thread inner
G 1/2 BSP
Package size
0 pcs
Barcode
Gross weight
Kg
Net weight
0,316 Kg
Country of origin
deu
Intrastat code
84812010
Screw coupling female HSN - DN12.5 - 1/2" BSP female
