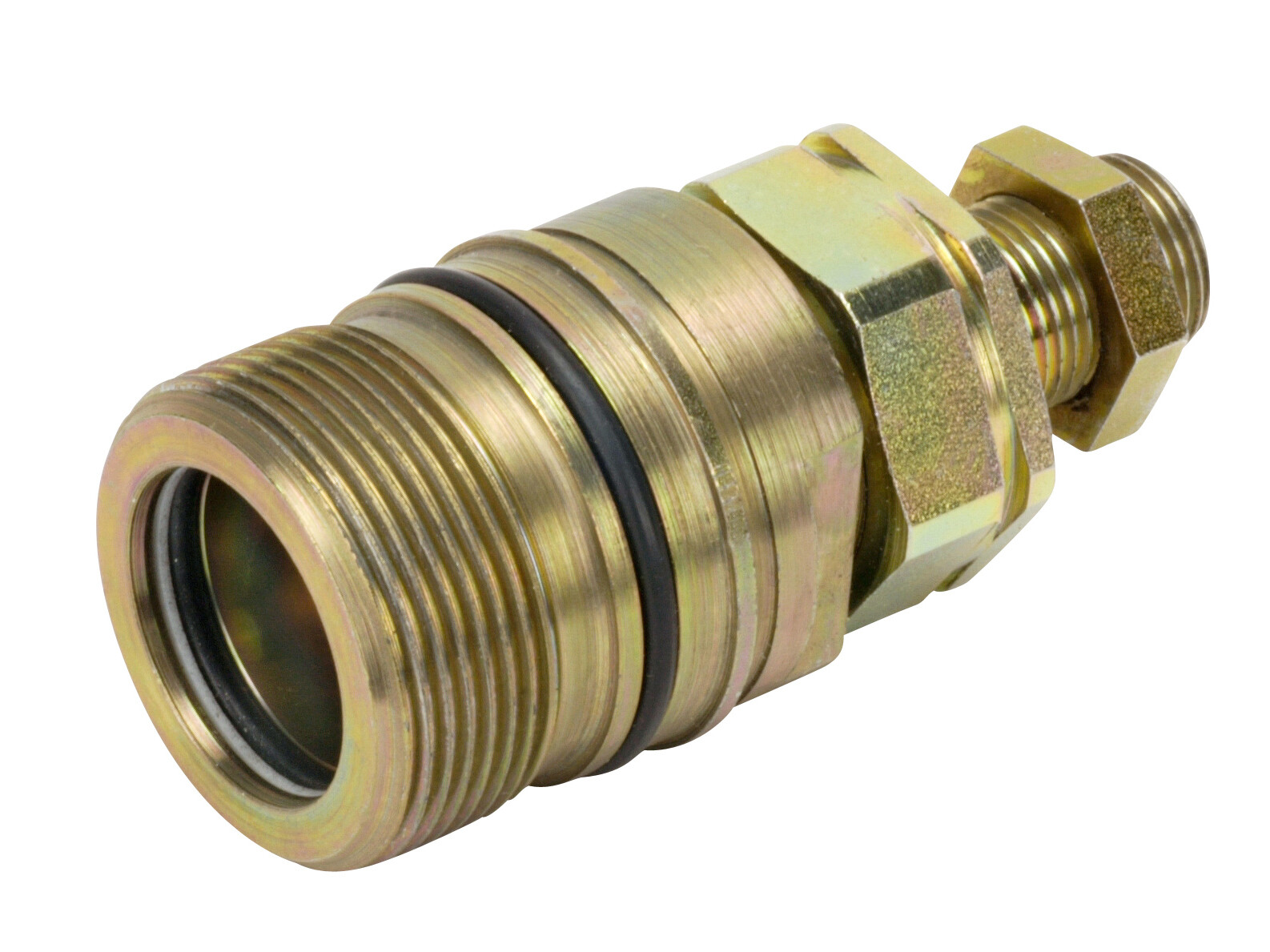

Screw coupling female HS - DN19 - M18x1.5 (12L) bulkhead
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
Varenummer:
HS12-1-N1218
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Diameter rör
12 mm
Dimension A metrisk
M18x1,5
Dimension B
94 mm
Dimension D metrisk
M42x2
Dimension L1
94 mm
Dimension SW
36 mm
Flödeshastighet nominell LMin
106 lpm
Gänga utv. metrisk
M18x1,5
ISO storlek
19
Modell kod
QRC-HS-19-F-12LB-BT-W66
Märke namn
Stauff
Packningsmaterial
NBR
Serie
L
Standard ISO
ISO 14541
Storlek
3/4 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
400 bar
Ytskiktbehandling
Zinc coating (CR III)
Package size
0 pcs
Barcode
5704295479743
Gross weight
0,49 Kg
Net weight
0,49 Kg
Country of origin
DEU
Intrastat code
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
