1/2" double-acting flow control valve Pressure compensated

Trykkompenseret flowreguleringsventil med flowregulering i én retning.

Justeringsknap med skala

Partnumber:

FT270/2-12

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Tognella

Dimension A

G 1/2 BSP

Dimension B

15.5 mm

Dimension C

141.5 mm

Dimension CH

45 mm

Dimension D

112 mm

Dimension E

122 mm

Dimension F

38 mm

Dimension G

18 mm

Dimension H metric

M30x1,5 mm

Flow rate nominal LMin

55 lpm

Material

Steel

Model code

FT270-2-12

Pressure compensated

Yes

Pressure max.

250 bar

Sealing material

NBR, PTFE (Teflon®)

Temperature max.

+70 °C

Temperature min.

-20 °C

Thread

G 1/2 BSP

Valve type

Throttlevalve

Package size

0 pcs

Barcode

5704334829379

Gross weight

Net weight

1,83 Kg

Country of origin

ita

Intrastat code

84812010

Product information

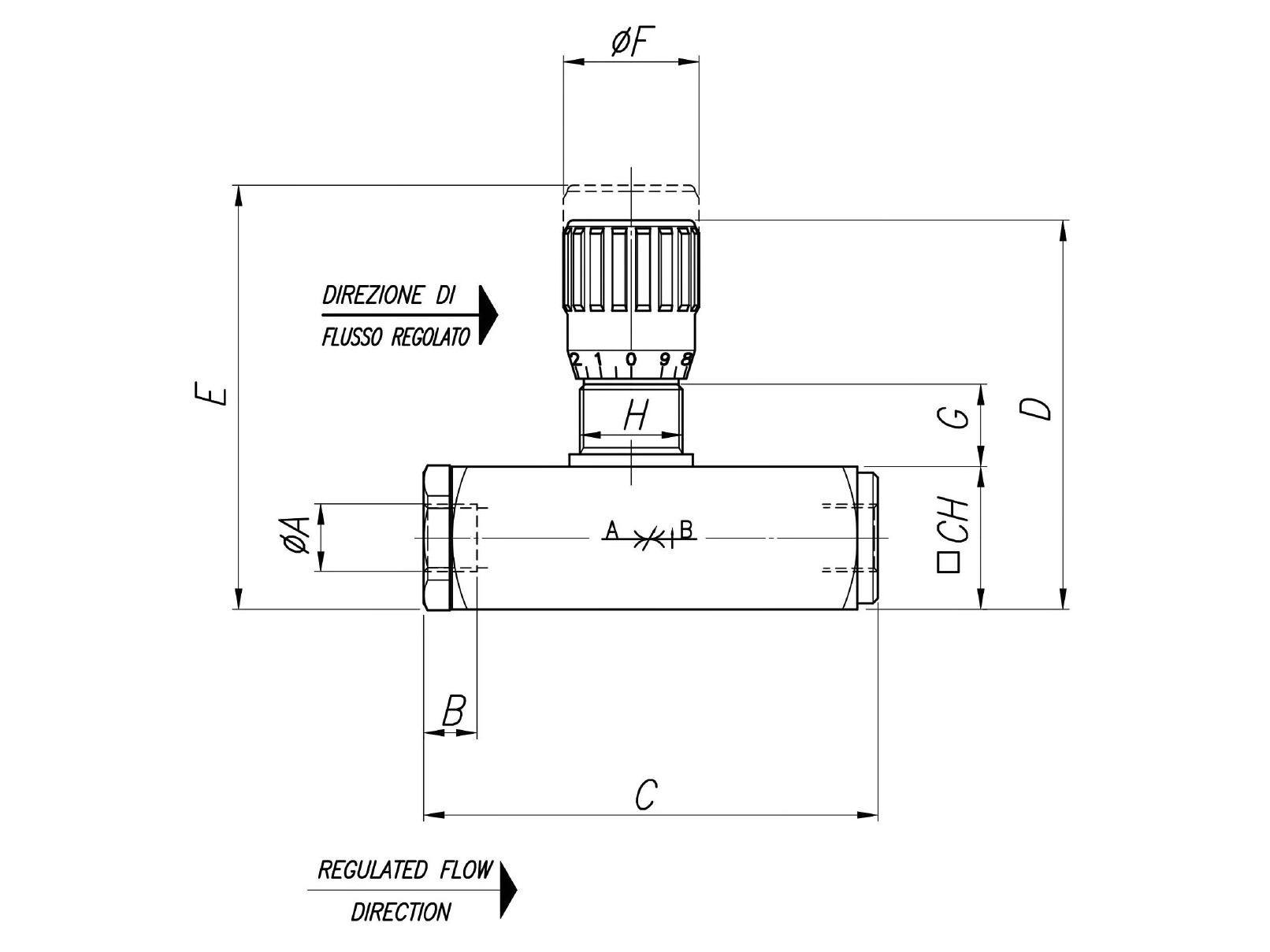

Measure sketch

Trykkompenseret flowreguleringsventil med flowregulering i én retning.

Justeringsknap med skala

Product datasheet
