Straight fitting ø6L with O-ring
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FISNV06L
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
6 mm

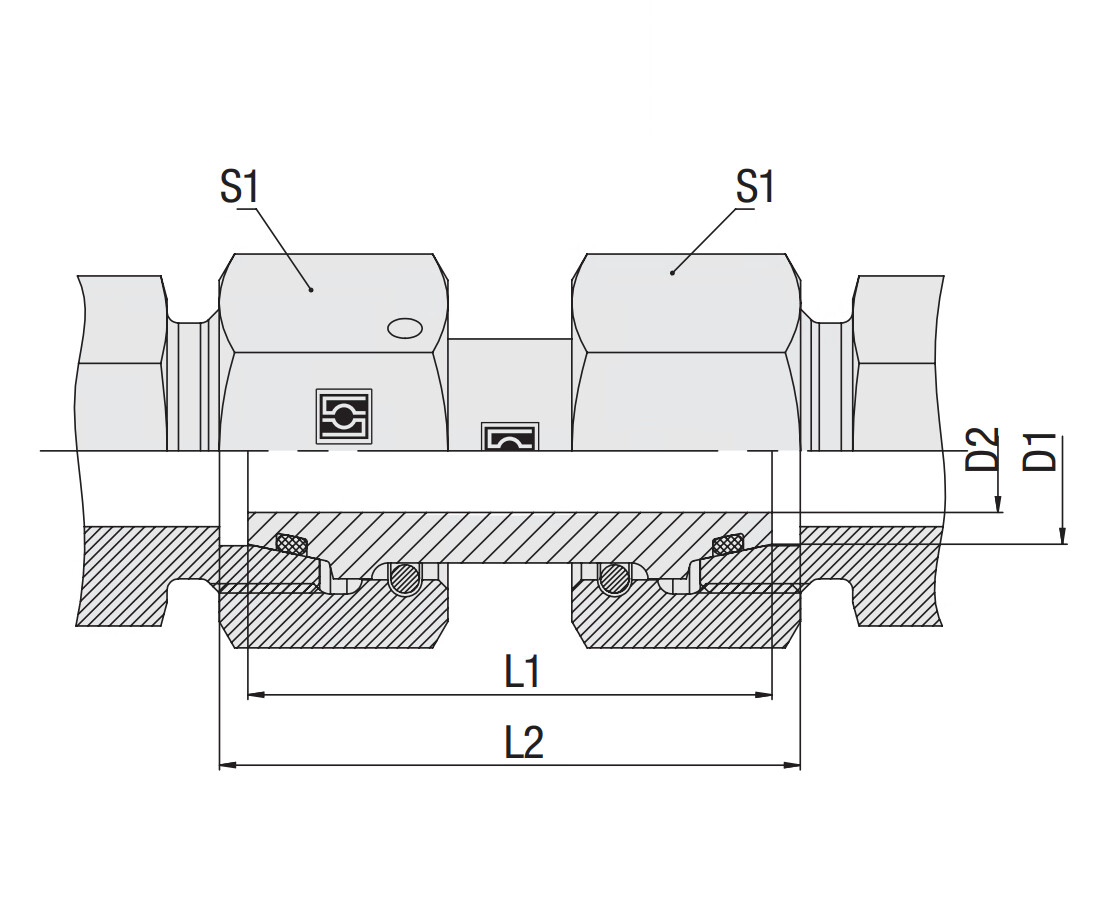

Dimension D1
6 mm
Dimension D2
3 mm
Dimension L1
34 mm
Dimension L2
36.7 mm
Dimension S1
14 mm
Gevind indvendig metrisk
M12x1,5
Korrosions resistens
1200 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
FI-SNV-06L-V-W3-DKO
Mærke navn
Stauff
Overfladebehandling
Zinc-Nickel plated
Pakningsmateriale
FKM/FPM (Viton®)
REACH compliant
Yes
RoHs compliant
Yes
Serie
L
Serie 1
N/A
Sikkerhedsfaktor
4
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Tryk maks.
500 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334714897
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73079910
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Note: Opening 3D files requires a program that supports the file format
