Test adaptor, 1/8 BSPF

Testadaptors with BSP thread for pressure monitoring and venting. Well suited for hydraulic fluids and and other fluids based on mineral oil. Metal protection cap included. Can be connected under pressure without oil spillage.

Varenummer:

MT01-102

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Gjenger utvendig

G 1/8 BSP

HEX

17 mm

Korrosjonsmotstand

1200 hours salt spray DIN EN ISO 9227

Materiale

Steel

Merke navn

Stauff

Modell kode

SMK-20-G1/8-B-C-W3

Overflatebehandling

Zinc-Nickel plated

Pakningsmateriale

NBR

17 mm

Sekskant

17 mm

G 1/8 BSP

Temperatur maks.

+100 °C

Temperatur min.

-20 °C

Tilspenning moment

18 Nm

Trykk maks.

400 bar

39 mm

8 mm

Package size

0 pcs

Barcode

5704295425542

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

DEU

Intrastat code

84812010

Product information

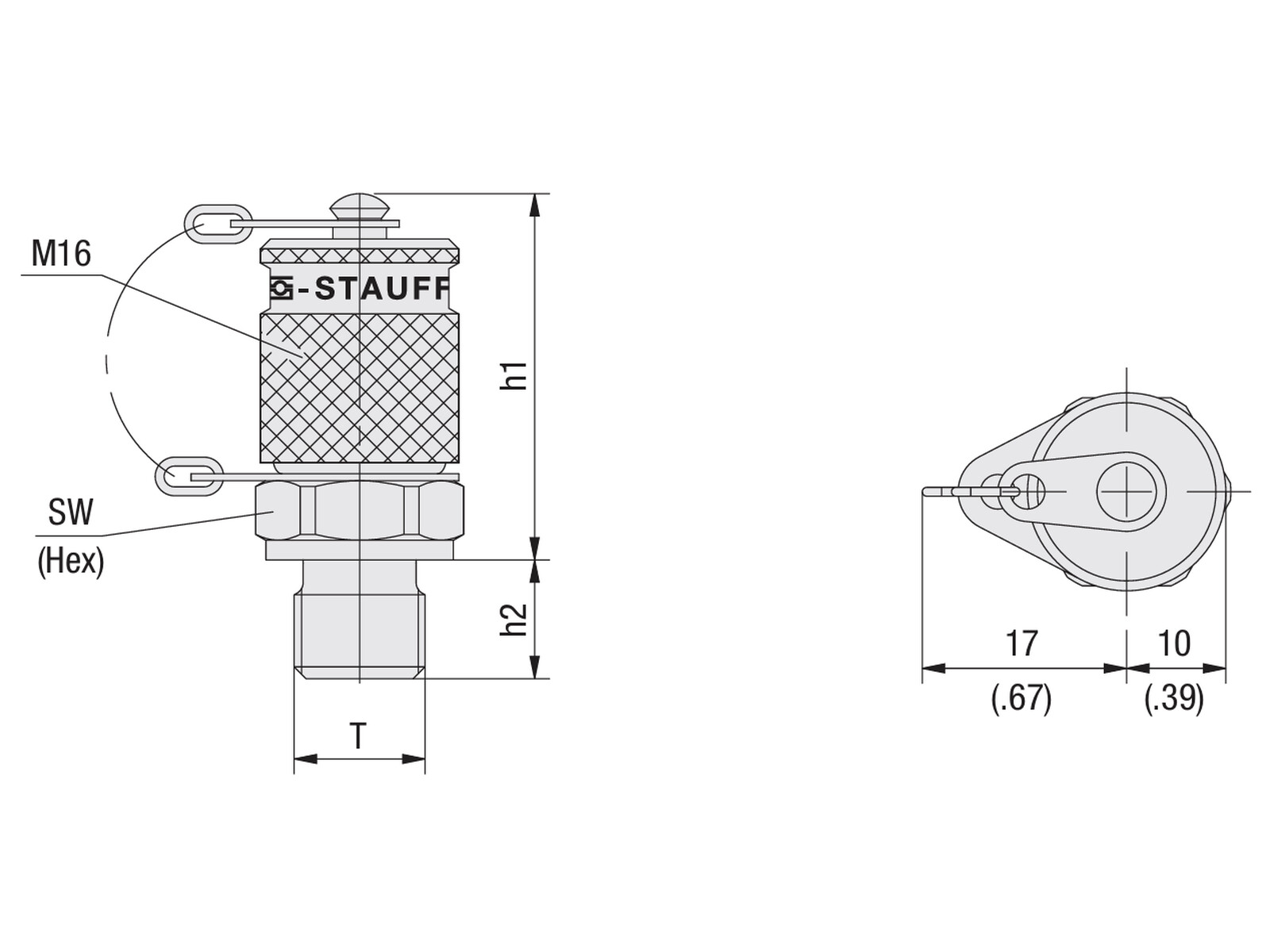

Measure sketch

Note: Opening 3D files requires a program that supports the file format
