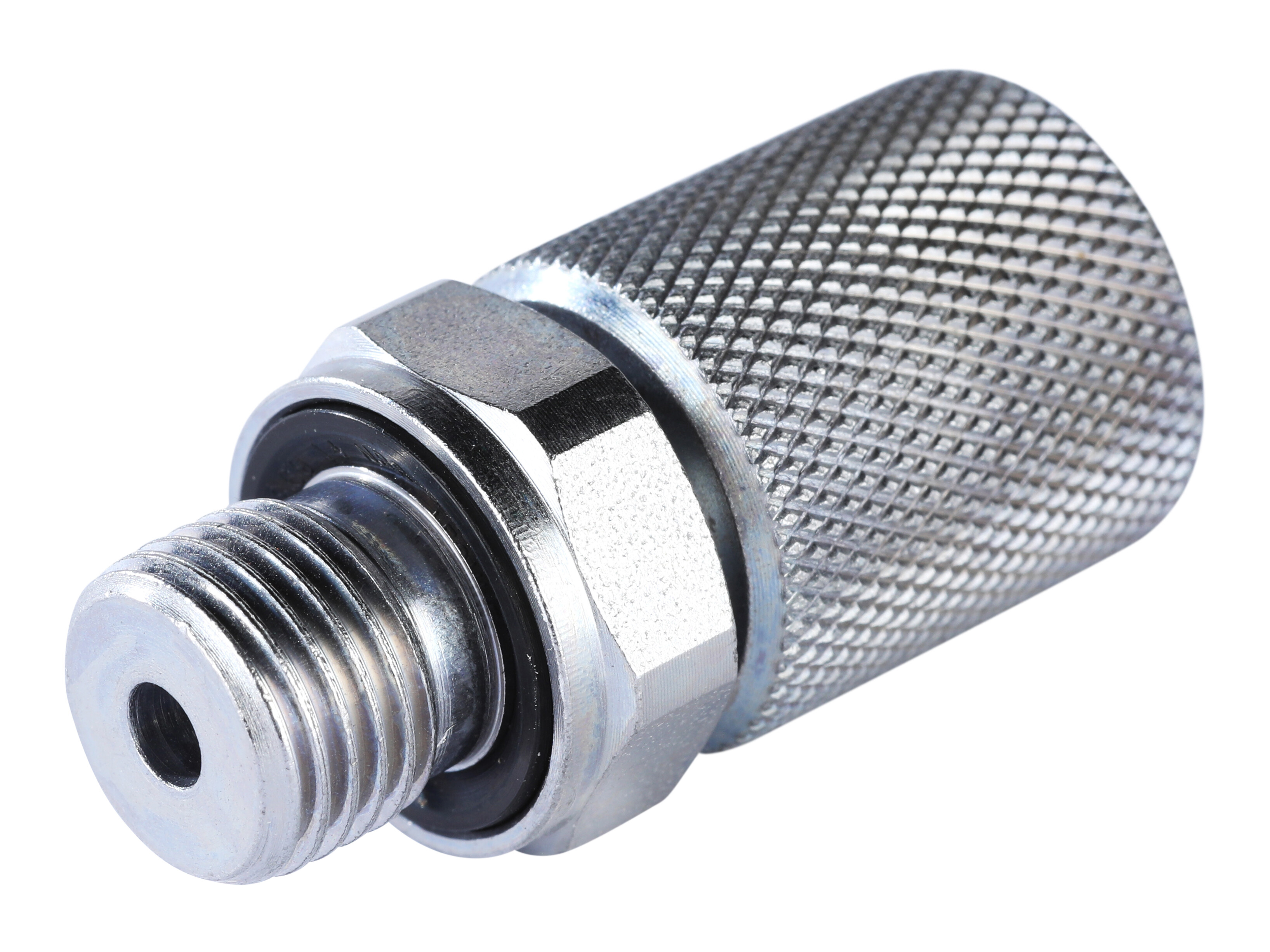

Adaptor male.1/4 female M16
Adaptor for connecting components with different thread interfaces in hydraulic test and measurement setups. The adaptor converts a G 1/4 male connection to an M16x2 female connection, enabling connection between a G-thread port and equipment using an M16x2 mating thread.
Used where a compact interface change is required, for example when integrating test couplings, sensors, or measurement accessories into a hydraulic circuit. Maximum working pressure is 630 bar, with an operating temperature range from -20 °C to +100 °C.
Typical Applications
- Hydraulic test points and measurement connections where G 1/4 needs adapting to M16x2
- Service and troubleshooting setups for temporary connection of test equipment
Partnumber:
SDA20G1/4PC
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff
Pressure max.
630 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner metric
M16x2
Thread outer
G 1/4 BSP
Pakke str.
0 pcs
Stregkode
5704295823386
Brutto vægt
0,06 Kg
Netto vægt
0,06 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Adaptor for connecting components with different thread interfaces in hydraulic test and measurement setups. The adaptor converts a G 1/4 male connection to an M16x2 female connection, enabling connection between a G-thread port and equipment using an M16x2 mating thread.
Used where a compact interface change is required, for example when integrating test couplings, sensors, or measurement accessories into a hydraulic circuit. Maximum working pressure is 630 bar, with an operating temperature range from -20 °C to +100 °C.
Typical Applications
- Hydraulic test points and measurement connections where G 1/4 needs adapting to M16x2
- Service and troubleshooting setups for temporary connection of test equipment
