MM-OMP/OMR-LS-DVME06-EN-2-4B-80

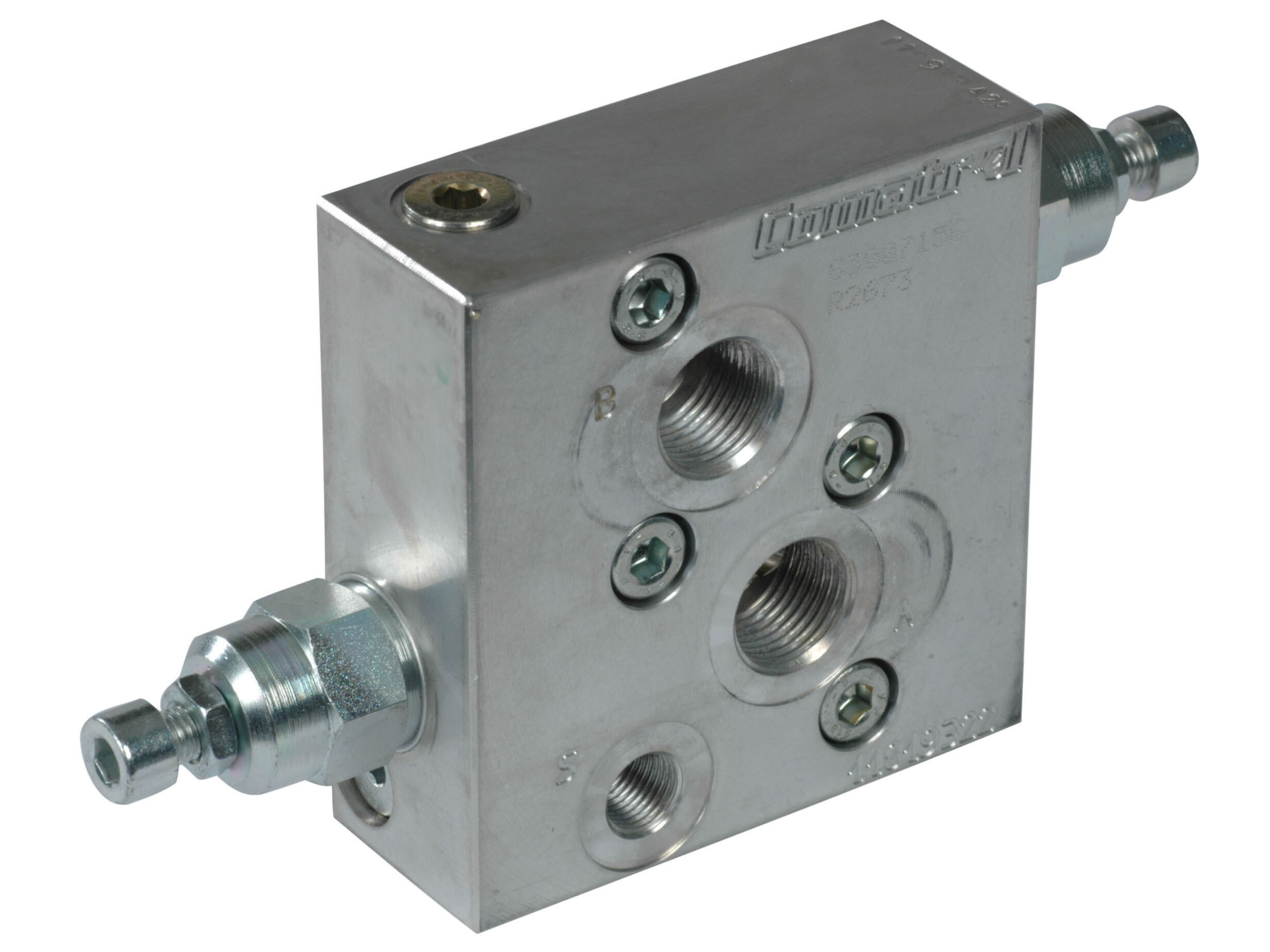

This is a dual cross-port relief HIC with shuttle that mounts on OMPX/OMRX motors with BSP port connection (SO-A3). The OMPX and OMRX motors replace the previous OMP and OMR motors.

Partnumber:
83007156

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Danfoss

Cavity
VME06

Contamination level max.
20/18/14 - ISO 4406

Fits to
OMP, OMR

Flow rate nominal LMin
40 lpm

Material
Aluminium

Model code
MM-OMP/OMR-LS-DVME06-EN-2-4B-80

Oil viscocity recommended
12 - 54 cSt

Pressure max.
210 bar

Pressure setting max.
170 bar

Pressure setting min.
35 bar

Sealing material
NBR

Valve type
Shock valve

Working ports
G 1/2 BSP
Package size
0 pcs

Barcode
5704334411239

Gross weight
1,20 Kg

Net weight
1,20 Kg

Country of origin

Intrastat code
84812010

This is a dual cross-port relief HIC with shuttle that mounts on OMPX/OMRX motors with BSP port connection (SO-A3). The OMPX and OMRX motors replace the previous OMP and OMR motors.
