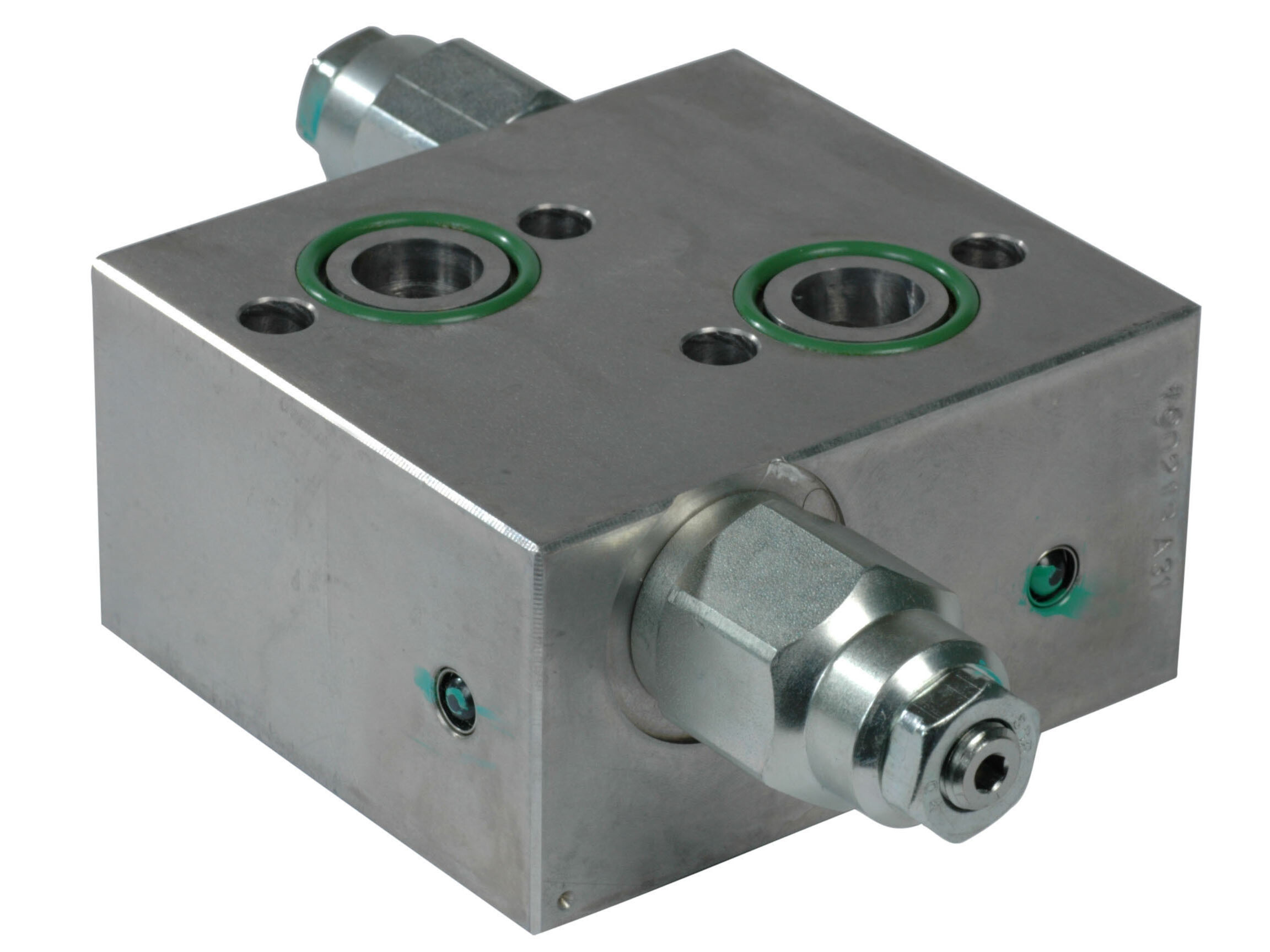

ASSY, MOTOR MOUNT, DCB-OMP/OMR MM-OMP/OMR-00-DCB10 HV-3-B-1-

This is a double counterweight HIC that mounts on OMPX/OMRX motors with BSP port connection (SO-A3). The OMPX and OMRX motors replace the previous OMP and OMR motors.

Partnumber:
83004712

Package size:
0 pcs

Min. order quantity is:
1 pcs
SEAL KIT SDC 10-3S B #
Artikelnummer: 354001419
Brand Name
Danfoss

Contamination level max.
20/18/14 - ISO 4406

Fits to
OMP, OMR

Flow rate nominal LMin
60 lpm

Material
Aluminium

Model code
MM-OMP/OMR-00-DCB10 HV-3-B-1-E-175-B-4B

Oil viscocity recommended
12 - 54 cSt

Pressure max.
210 bar

Pressure setting max.
350 bar

Pressure setting min.
90 bar

Sealing material
NBR

Valve type
Overcenter valve
Förpackningsstorlek
0 pcs

Streckkod
5704334371137

Bruttovikt
1,43 Kg

Nettovikt
1,43 Kg

Ursprungsland

Intrastat artikelkod
84812010

This is a double counterweight HIC that mounts on OMPX/OMRX motors with BSP port connection (SO-A3). The OMPX and OMRX motors replace the previous OMP and OMR motors.
