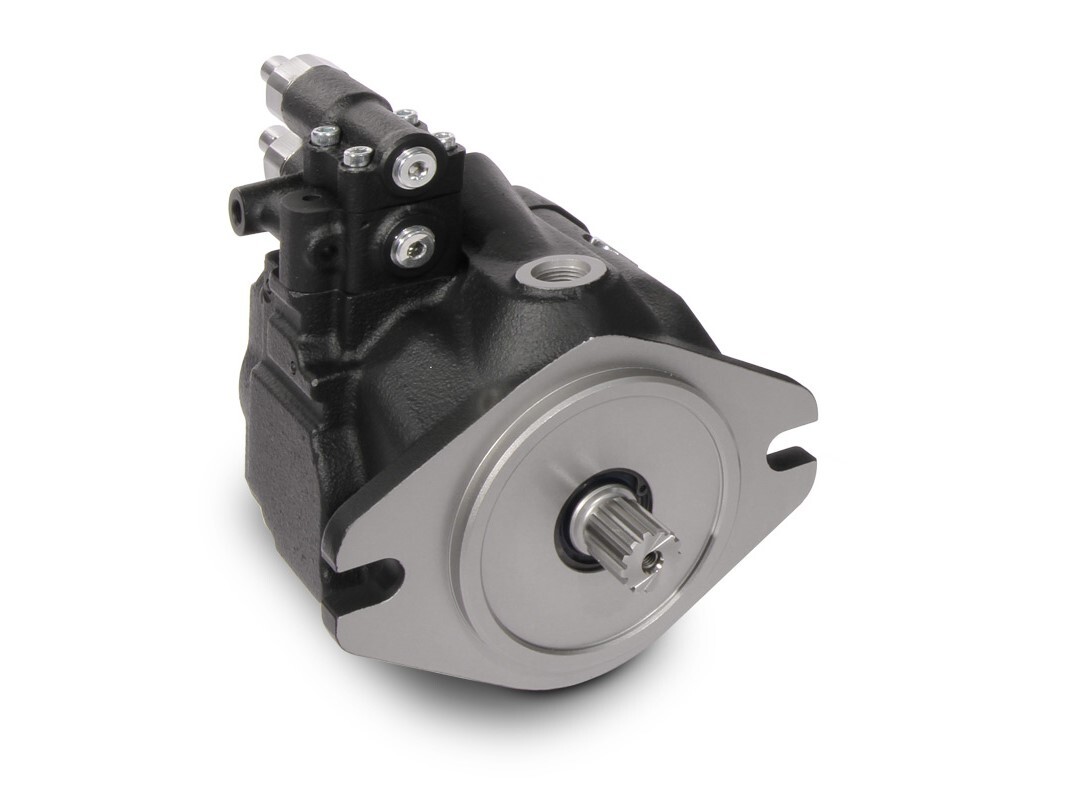

MVP30.34D-04S5-LMD/MB-N-DEC-1-D-LS2-E axial piston pump

The MVP30.34 is a variable displacement axial piston pump with a swash plate design, perfect for medium and high-pressure open circuit applications. Its compact design allows for direct mounting on motors.

This pump is equipped with DEC “Displacement Electronic Control” which regulates the pump displacement automatically to maintain it below the variable limit set through a command current signal.

  • The displacement of the pump is continuously regulated according to the PWM current signal.
  •
  • This allows open loop control on pump displacement (direct regulation of pump flow) or to limit the maximum displacement (and flow) to variable values.
  •
  • The DEC uses a Normally closed 12 V DC valve, with a Deutsch DT04-2P connector.



Typical Applications:

  • Skid Steer Loaders
  • Wheel Loaders & Backhoe Loaders
  • Mini and Midi-Excavators
  • Telehandlers
  • Forklifts
  • Windmills
  • Tractors & Attachments

Partnumber:
650900V7

Package size:
0 pcs

Min. order quantity is:
1 pcs
Contamination level max.
18/16/13 - ISO 4406

Control
Load sensing

Control type
LS

Displacement
34.8 cm3

Flange SAE/DIN
3000 PSI

Flange inlet
1.1/4 "

Flange outlet
3/4 "

Model code
MVP30.34D-04S5-LMD/MB-N-DEC-1-D-LS2-E

Mounting flange
SAE-B2

Number of mounting holes
2

Number of outer grooves
13

Oil viscocity recommended
10 - 1500 cSt

Port position
Side

Pressure continous max.
250 bar

Pressure intermittent max.
280 bar

Pressure peak max.
315 bar

Recess
101,6 mm

Rotation direction
Right (CW)

Rotational speed max.
2900 rpm

Sealing material
NBR

Shaft diameter
22 mm

Shaft spline
13T 16/32 SAE-B

Shaft type
Spline

Temperature max.
+100 °C

Temperature min.
-25 °C
Package size
0 pcs

Barcode
5704334933519

Gross weight
Kg

Net weight
Kg

Country of origin
ita

Intrastat code
84135061
