Swivel 2 BSP 50 bar Hydraulics 60 rpm
Swivels are mainly used when hoses need to be rotated under pressure. By fitting swivels, rotation of the hoses can be avoided. Keep in mind that 7 ° rotation of a hose can shorten the life of the line by 90%._x000D_ Swivels can be used for slow rotation or oscillating movement. To avoid unnecessary wear of the swivels, radial loads must be avoided._x000D_ The 9000/9100 series is a cost-effective choice when you want to avoid downtime_x000D_ and reliability is paramount.
Partnumber:
44BP32-E51
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
I.M.M Hydraulics

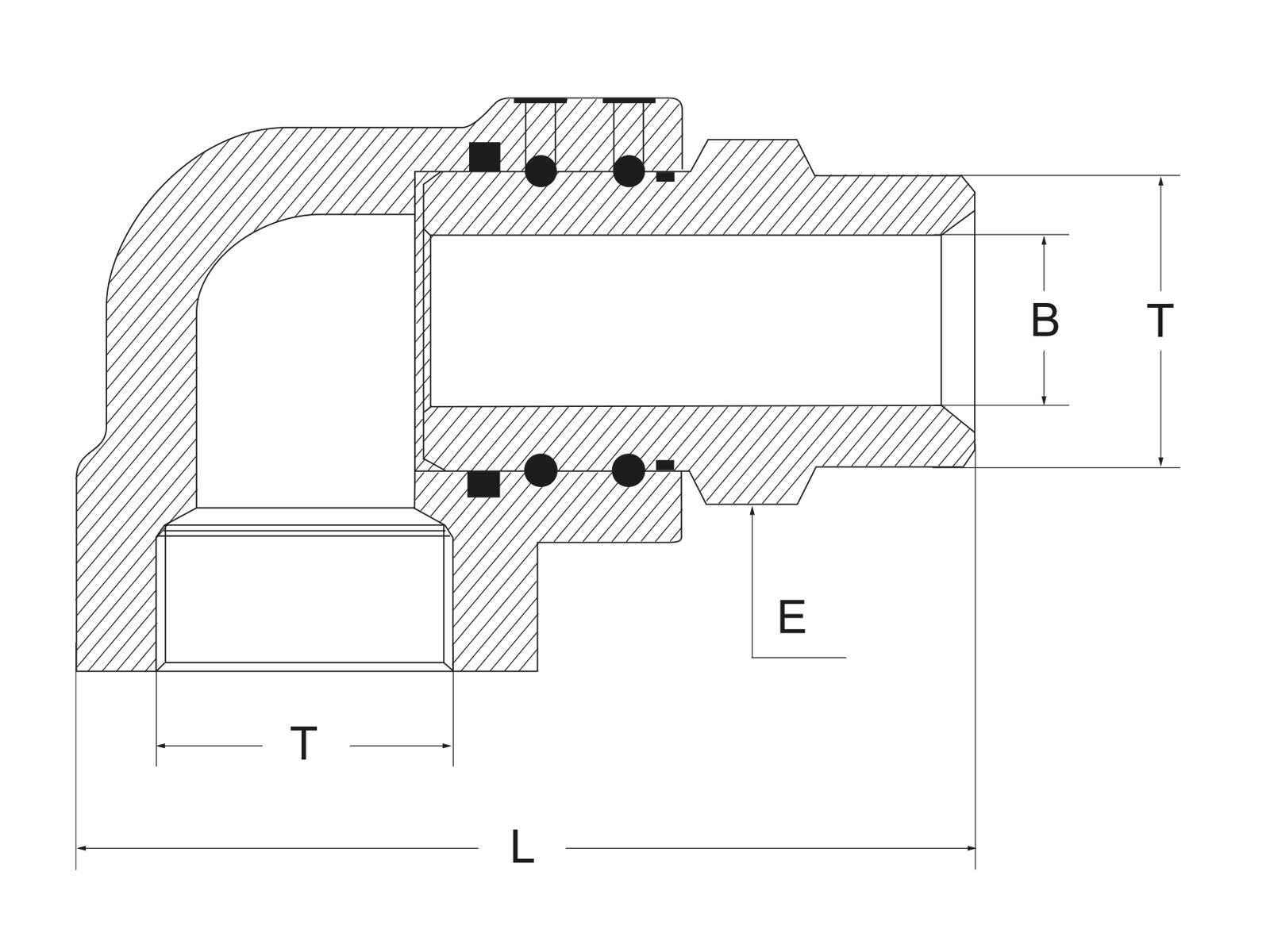

Dimension B
44 mm
Dimension E
65 mm
Dimension L
151 mm
Length
151 mm
Material
Steel
Pressure max.
50 bar
Pressure max. rotating
50 bar
Pressure static max.
250 bar
Rotational speed max.
6 rpm
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread T
G 2 BSP
Thread inner
G 2 BSP
Thread outer
G 2 BSP
Package size
0 pcs
Barcode
5704295459684
Gross weight
3,68 Kg
Net weight
3,68 Kg
Country of origin
ITA
Intrastat code
73071110
Swivels are mainly used when hoses need to be rotated under pressure. By fitting swivels, rotation of the hoses can be avoided. Keep in mind that 7 ° rotation of a hose can shorten the life of the line by 90%._x000D_ Swivels can be used for slow rotation or oscillating movement. To avoid unnecessary wear of the swivels, radial loads must be avoided._x000D_ The 9000/9100 series is a cost-effective choice when you want to avoid downtime_x000D_ and reliability is paramount.
