Swivel 1/4 BSP 400 bar Hydr. Male x female elbow
Swivels are mainly used when hoses need to be rotated under pressure. By fitting swivels, rotation of the hoses can be avoided. Keep in mind that 7 ° rotation of a hose can shorten the life of the line by 90%._x000D_ Swivels can be used for slow rotation or oscillating movement. To avoid unnecessary wear of the swivels, radial loads must be avoided._x000D_ The 9000/9100 series is a cost-effective choice when you want to avoid downtime_x000D_ and reliability is paramount.
Artikelnummer:
44BP04-E51
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
Brand Name
I.M.M Hydraulics

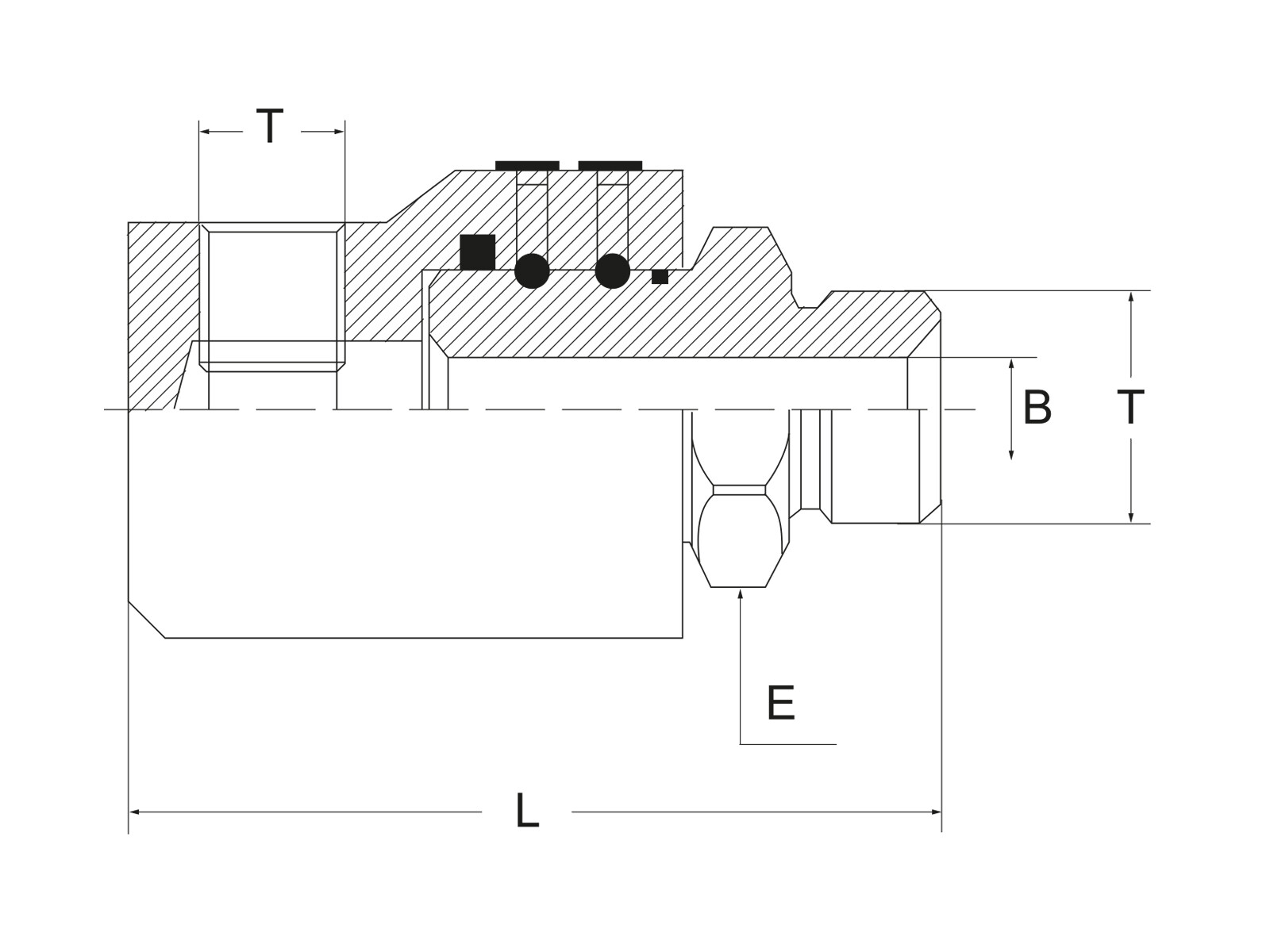

Dimension B
6 mm
Dimension E
19 mm
Dimension L
69 mm
Material
Steel
Pressure max.
400 bar
Pressure max. rotating
200 bar
Pressure static max.
400 bar
Rotational speed max.
6 rpm
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner
G 1/4 BSP
Thread outer
G 1/4 BSP
Pakke str.
0 pcs
Stregkode
5704295467023
Brutto vægt
0,31 Kg
Netto vægt
0,31 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
Swivels are mainly used when hoses need to be rotated under pressure. By fitting swivels, rotation of the hoses can be avoided. Keep in mind that 7 ° rotation of a hose can shorten the life of the line by 90%._x000D_ Swivels can be used for slow rotation or oscillating movement. To avoid unnecessary wear of the swivels, radial loads must be avoided._x000D_ The 9000/9100 series is a cost-effective choice when you want to avoid downtime_x000D_ and reliability is paramount.
