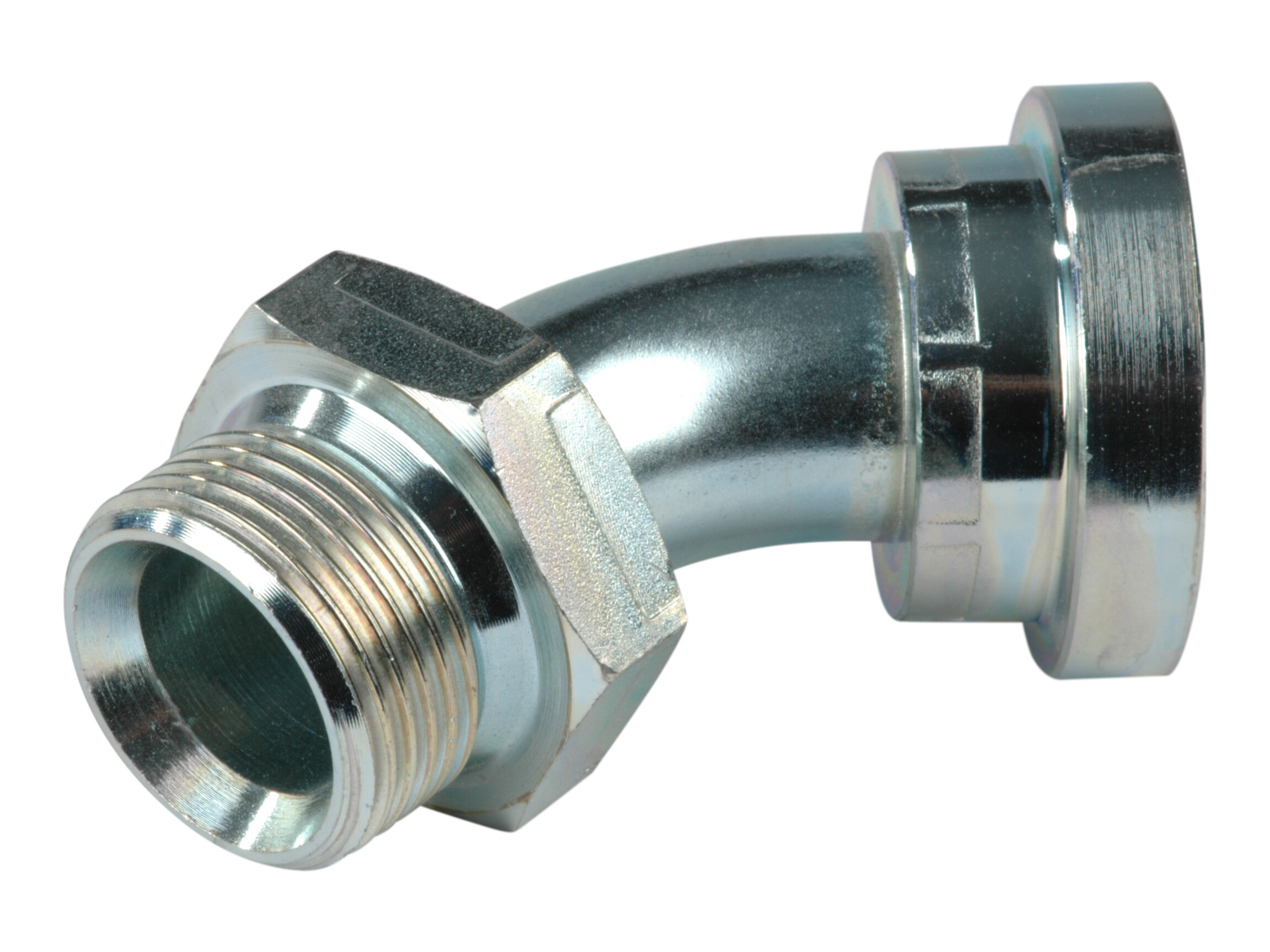

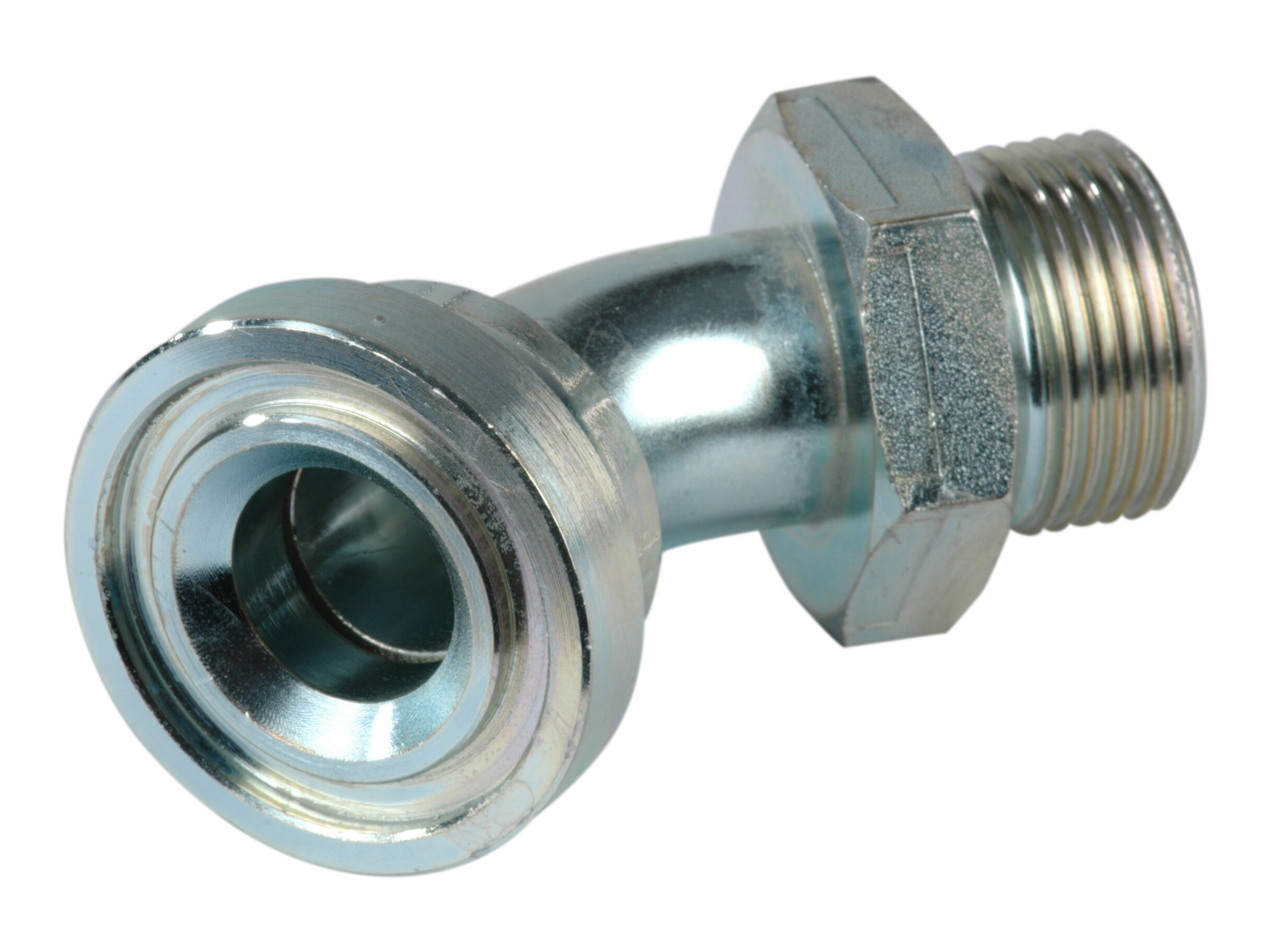

Elbow 1 BSPx1 flange 45 °.
Elbow 1 BSPx1 flange 45 °.
Partnumber:
26PH1616
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
57.15 mm
Dimension B
27.76 mm
Dimension I
53 mm
Dimension T
25 mm
Dimension l1
37 mm
Flange
1 "
Flange SAE/DIN
6000 PSI
Material
Steel
Pressure max.
300 bar
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Electro zinc plated
Thread outer
G 1 BSP
Package size
0 pcs
Barcode
5704295991344
Gross weight
0,39 Kg
Net weight
0,39 Kg
Country of origin
ITA
Intrastat code
73071110
Elbow 1 BSPx1 flange 45 °.
Note: Opening 3D files requires a program that supports the file format
