SD11/1-P(KG3-120)/1RSLP/AET

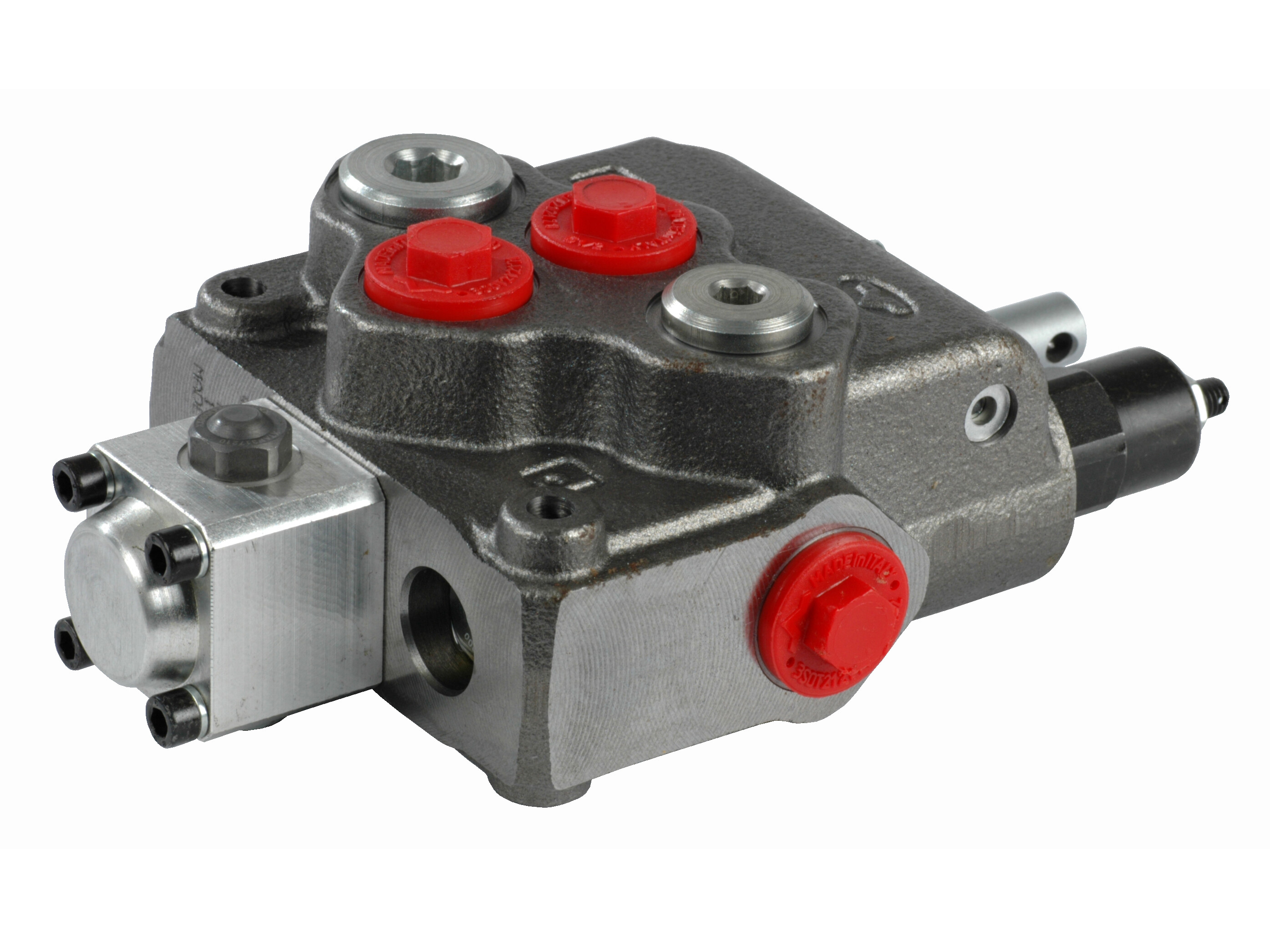

1 section SD11 monoblock directional valve with built-in pressure relief valve and one spool, manually activated with rotating hand lever.
Spool function: Double acting with port A and B closed in neutral position.
Open center port P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
Artikelnummer:
104161140
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
70 lpm
Lever
Exclusive
Material
Cast iron
Model code
SD11/1-P(KG3-120)/1RSLP/AET
Number of sections
1
Oil viscocity recommended
12 - 400 cSt
Port P1
G 1/2 BSP
Port P2
G 1/2 BSP
Port T1
G 3/4 BSP
Port T2
G 3/4 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
315 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
63 bar
Working ports
G 1/2 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334293149
Bruttovikt
6,18 Kg
Nettovikt
6,18 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
1 section SD11 monoblock directional valve with built-in pressure relief valve and one spool, manually activated with rotating hand lever.
Spool function: Double acting with port A and B closed in neutral position.
Open center port P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
