SD11/1-P(KG3-120)/18L/18L/18L/ 18L/18L/18L/AET

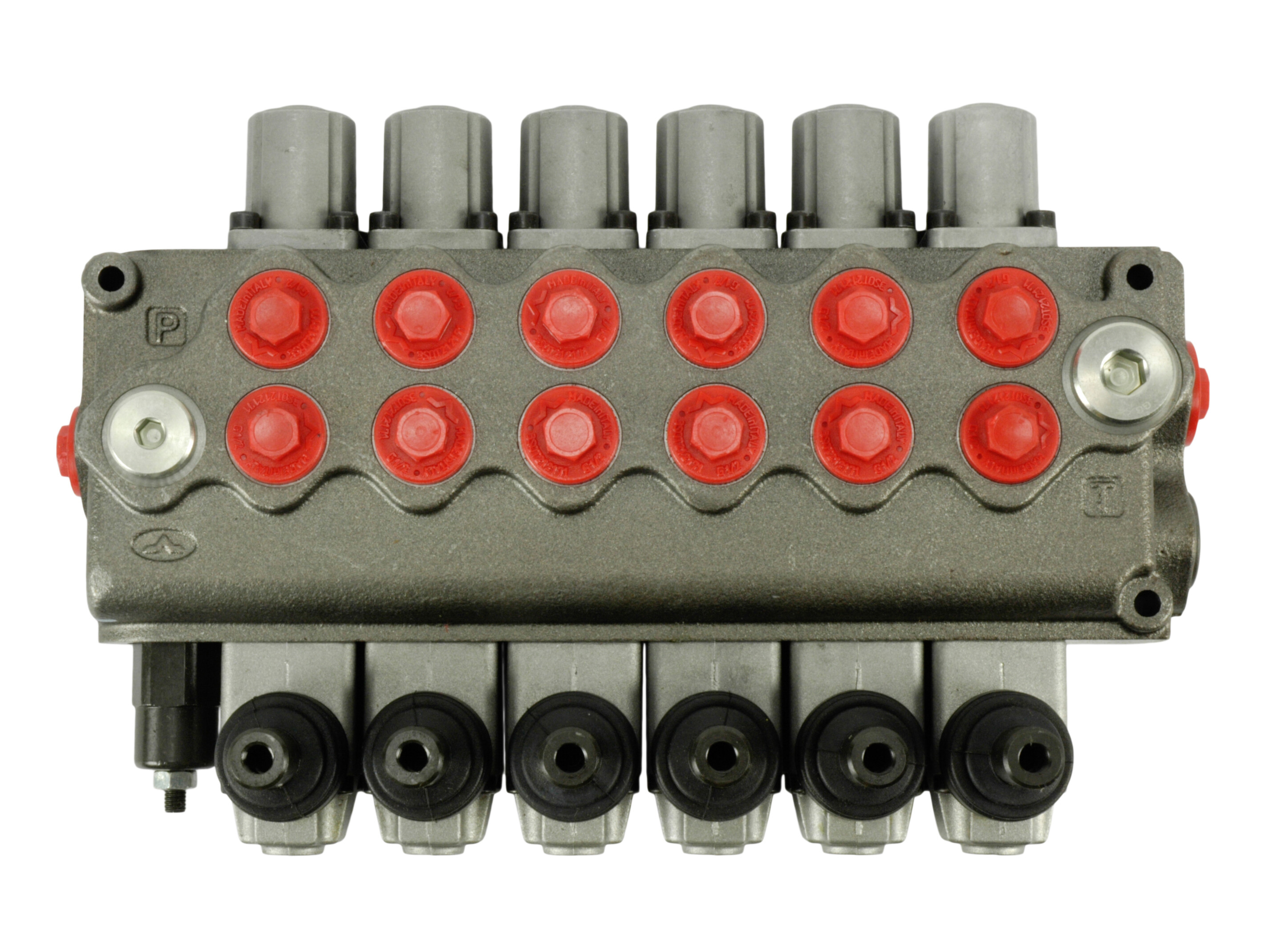

6-section SD11 monoblock directional valve with built-in pressure relief valve and 6 spools in parallel. Manually activated with handlevers.

Spool function: 6 x doubleacting with port A and B closed in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port plugged).

Varenummer:
104611001

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Joystick M10 thread Walvoi
Partnumber: 170012015
LeverAL01-M10x200, Walvoil L/SD8,SD11,SD14,SD16
Partnumber: 170012020
O-ring
Partnumber: 20.22X3.53
Lever housing L (SD11,SD14)
Partnumber: 5LEV110000
SD11/8 Kit for spring return to neutral
Partnumber: 5V08110000
Rubber bellow SD11-SD14-SD16- SD18-SDS180 std.lever housing
Partnumber: SOF139350
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
70 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD11/6-P(KG3-120)/18L/18L/18L/18L/18L/18L/AET

Number of sections
6

Oil viscocity recommended
12 - 400 cSt

Port P1
G 1/2 BSP

Port P2
G 1/2 BSP

Port T1
G 3/4 BSP

Port T2
G 3/4 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
63 bar

Working ports
G 1/2 BSP
Package size
0 pcs

Barcode
5704334152811

Gross weight
19,82 Kg

Net weight
19,82 Kg

Country of origin
ITA

Intrastat code
84812010

6-section SD11 monoblock directional valve with built-in pressure relief valve and 6 spools in parallel. Manually activated with handlevers.

Spool function: 6 x doubleacting with port A and B closed in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port plugged).
