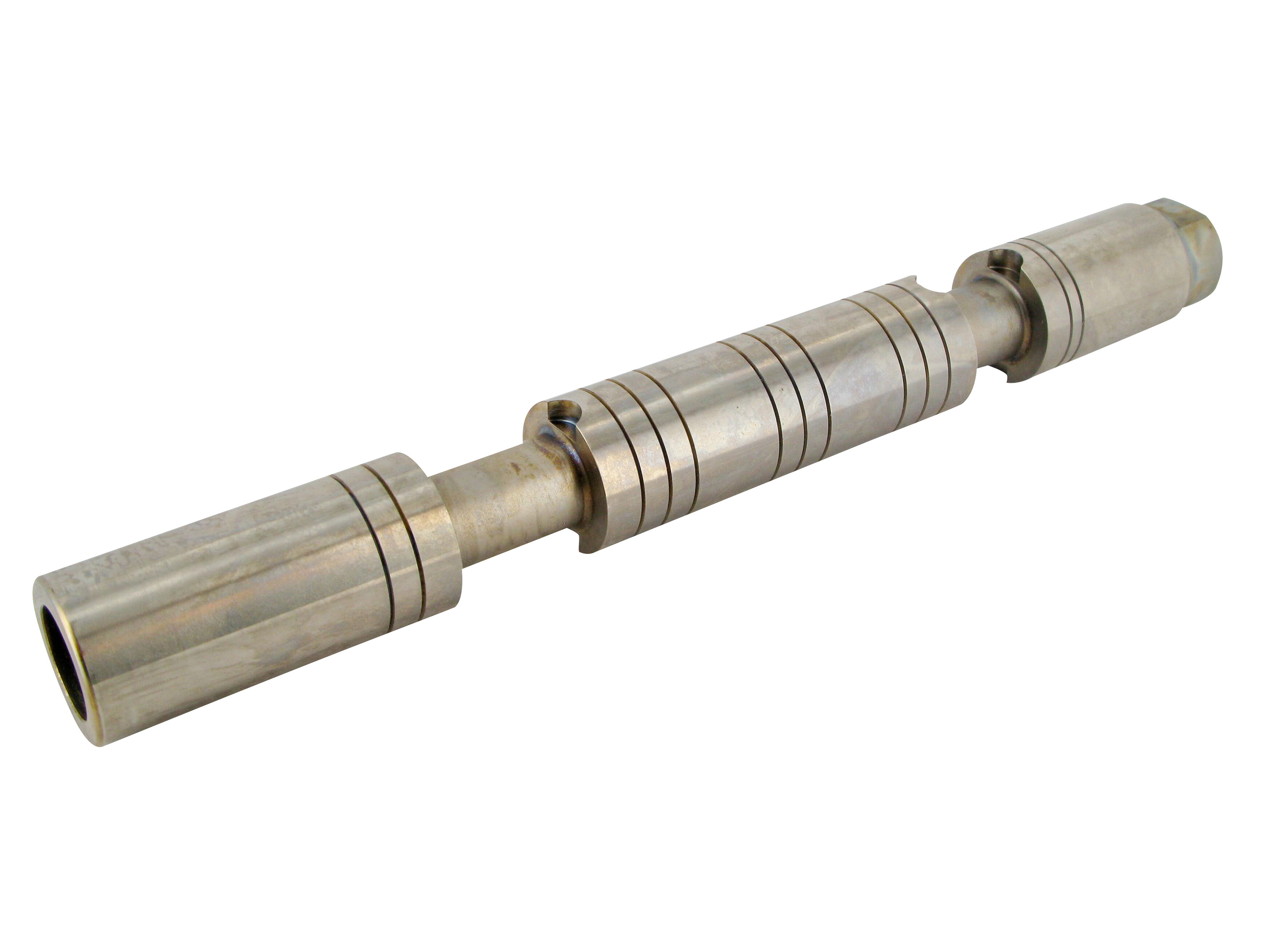

SD18/3C spool, single acting A-port. For hydraulic control
Single acting 3-position spool for hydraulic spool control (8IM) on SD18 valves. Single acting on port A. Port B to be plugged with 3/4" BSP plug.
Partnumber:
3CU1631400
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Diameter
25 mm
Flow rate nominal LMin
160 lpm
Model code
SD18/3C
Pressure max.
250 bar
Package size
0 pcs
Barcode
5704334153214
Gross weight
0,67 Kg
Net weight
0,67 Kg
Country of origin
ITA
Intrastat code
84812010
Single acting 3-position spool for hydraulic spool control (8IM) on SD18 valves. Single acting on port A. Port B to be plugged with 3/4" BSP plug.
