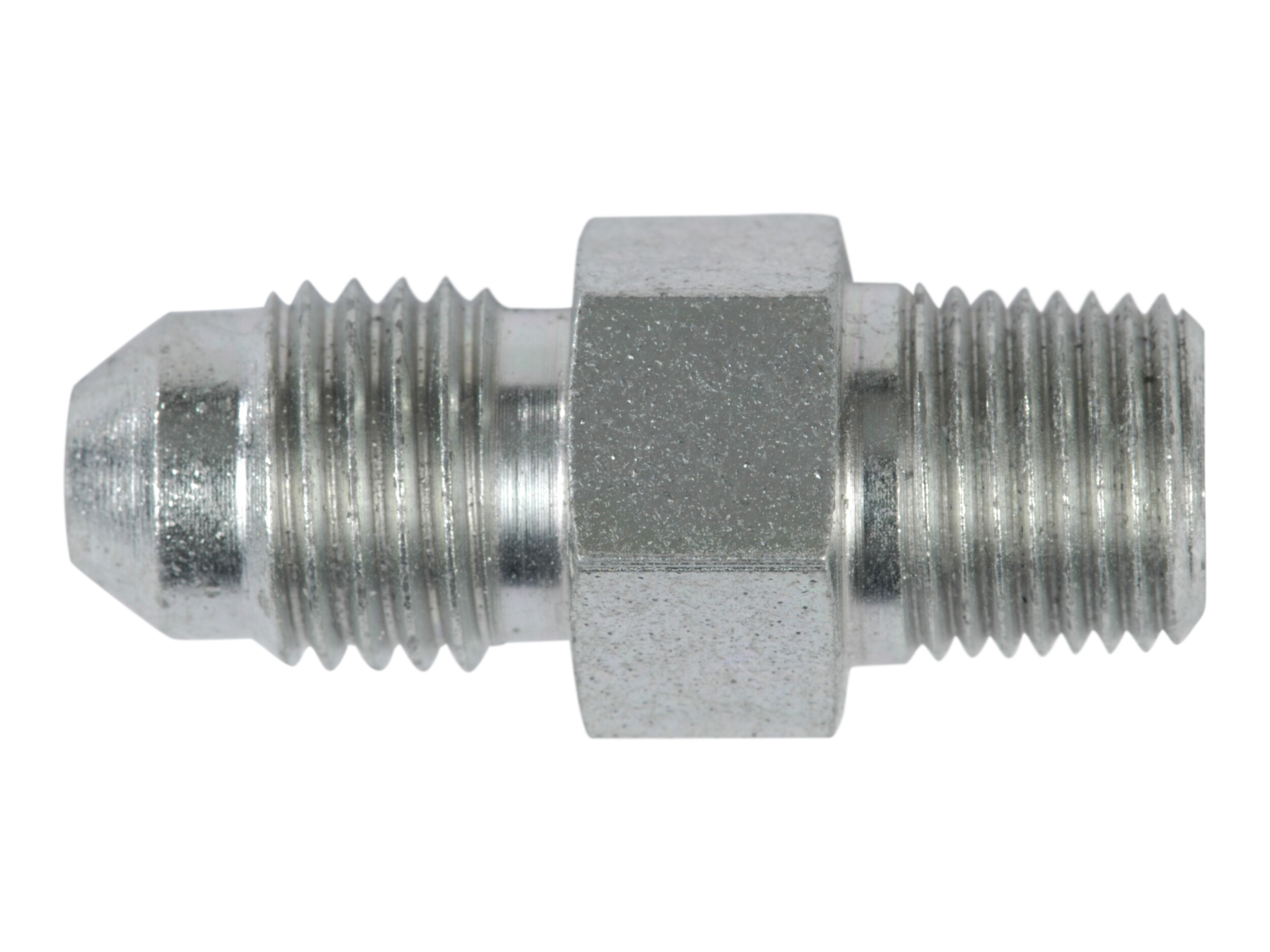

Indskruning 7/16-20 JIC udv x 1/8 NPT udv
Indskruning 7/16-20 JIC udv x 1/8 NPT udv
Partnumber:
M1-06-1/8
Package size:
0 pcs
Min. order quantity is:
50 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm

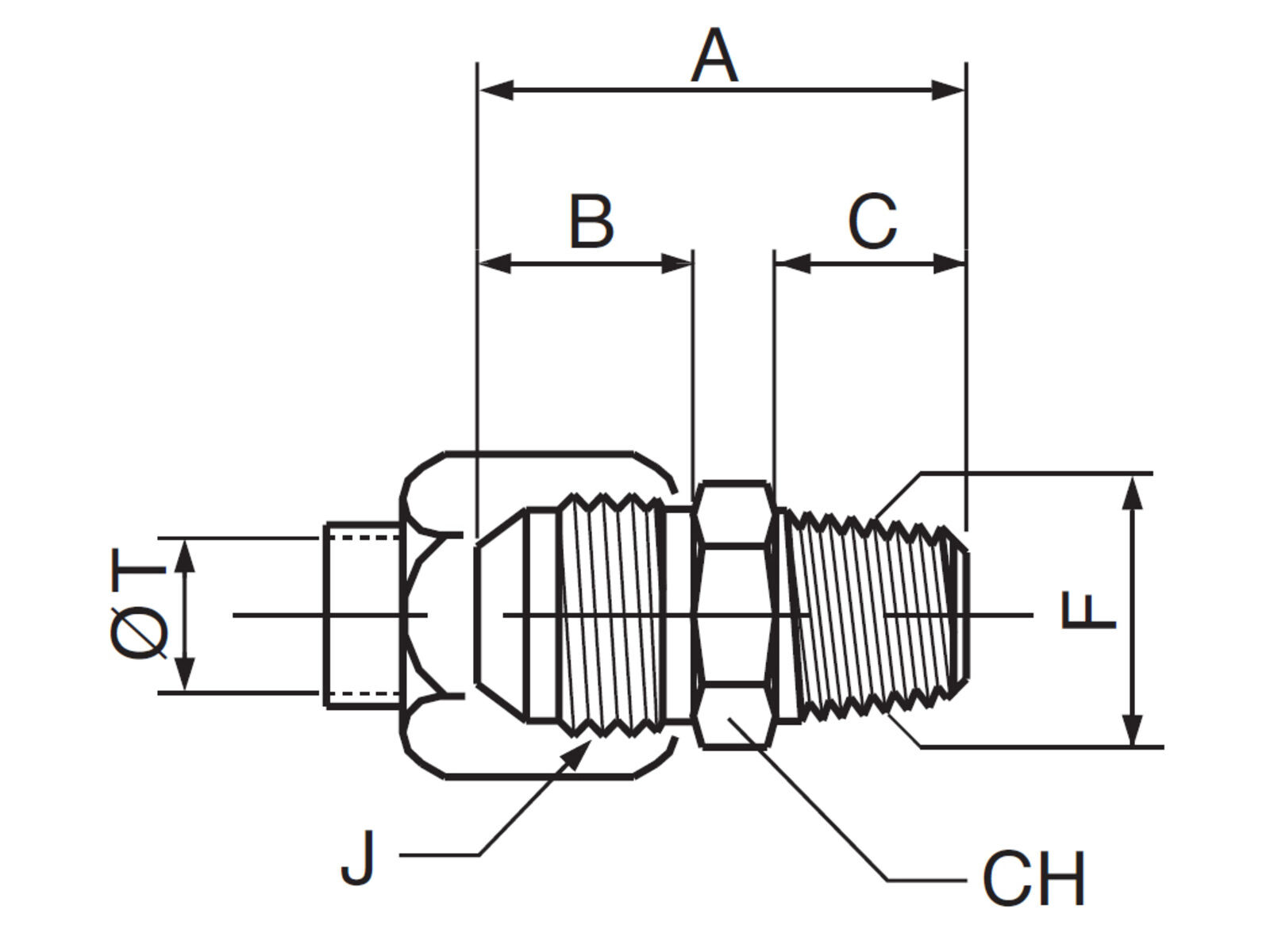

Dimension A
31 mm
Dimension B
14 mm
Dimension C
10 mm
Dimension CH
14 mm
Dimension F
1/8 NPT
Dimension J
7/16-20 JIC
Dimension T
6 mm
Material
Stål
Pressure max.
450 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1/8 NPT
Thread outer
7/16-20 JIC
Package size
0 pcs
Barcode
5704295485515
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 7/16-20 JIC udv x 1/8 NPT udv
Note: Opening 3D files requires a program that supports the file format
