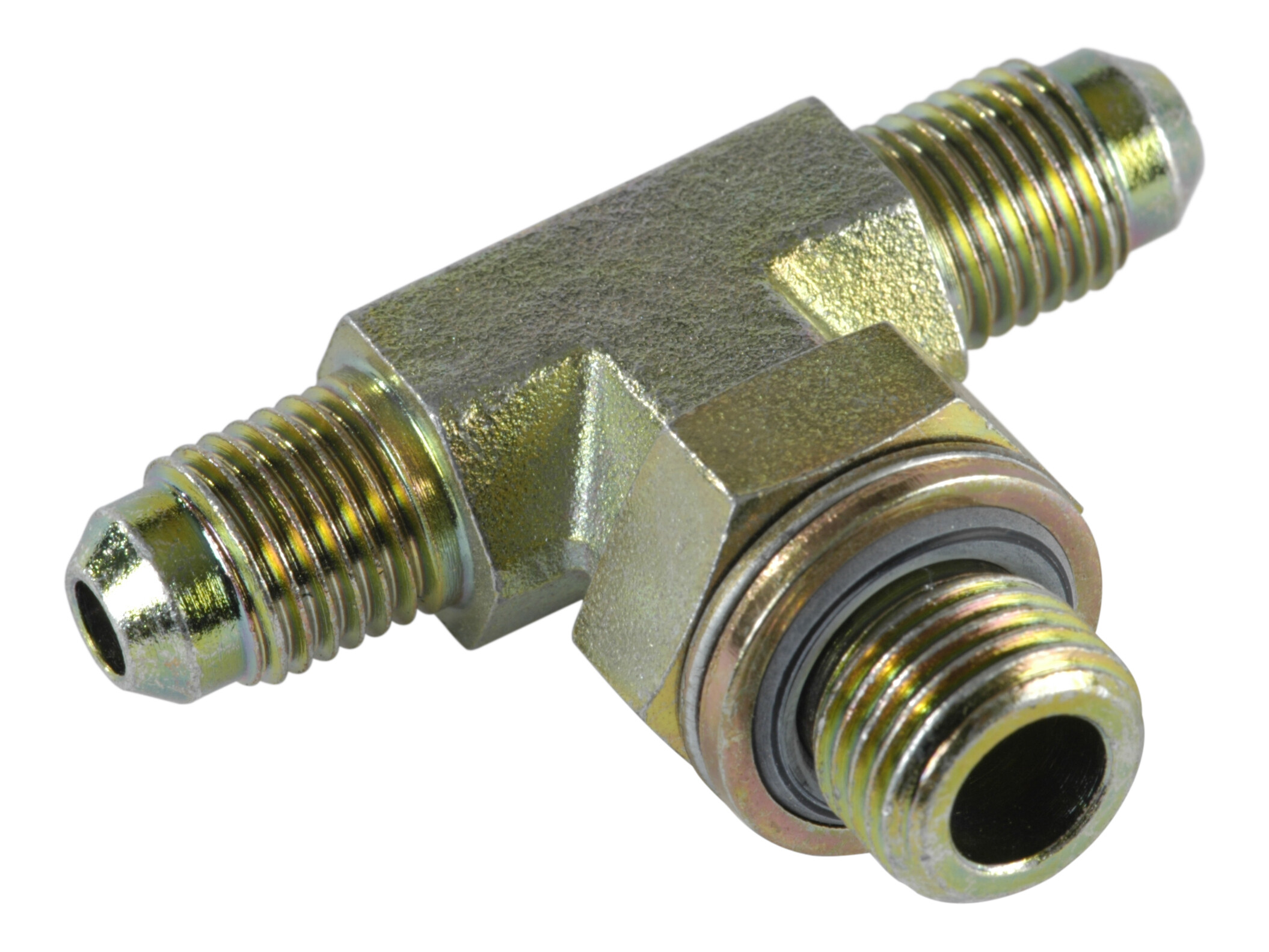

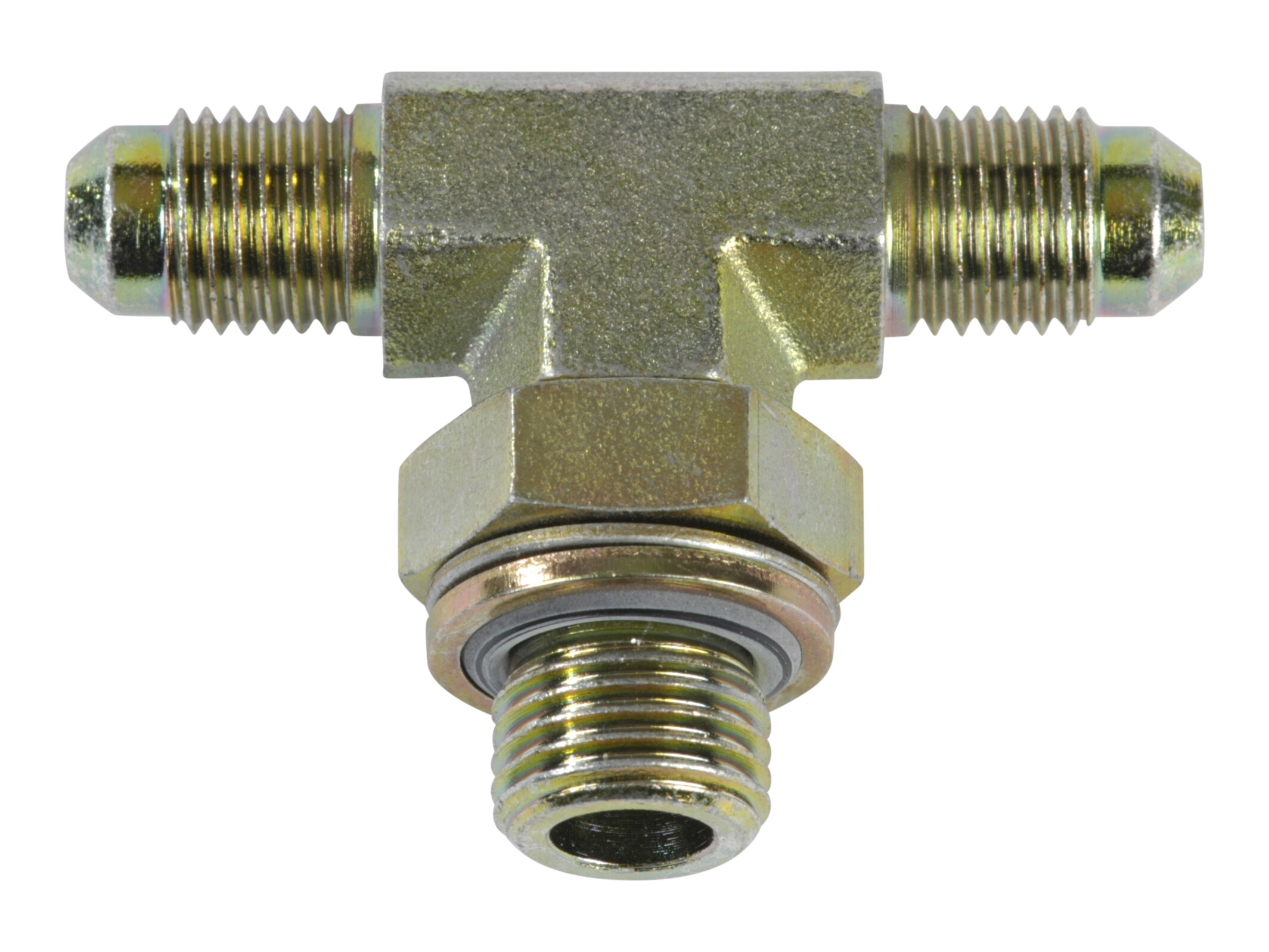

T-forskruning stilbar 7/16-20 JIC udv x 1/4 BSP udv
T-forskruning stilbar 7/16-20 JIC udv x 1/4 BSP udv
Partnumber:
TOL-06-1/4
Package size:
0 stk
Min. order quantity is:
1 stk
B
27 mm
B1
27 mm
C
31,5 mm
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
F
G 1/4 BSP
J
7/16-20 JIC
J1
7/16-20 JIC
Material
Stål
Pressure max.
450 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
El-forzinket / hvidkromatiseret
T
6 mm
T1
6 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
7/16-20 JIC
Thread outer
G 1/4 BSP
Package size
0 stk
Barcode
5704334358152
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ita
T-forskruning stilbar 7/16-20 JIC udv x 1/4 BSP udv
