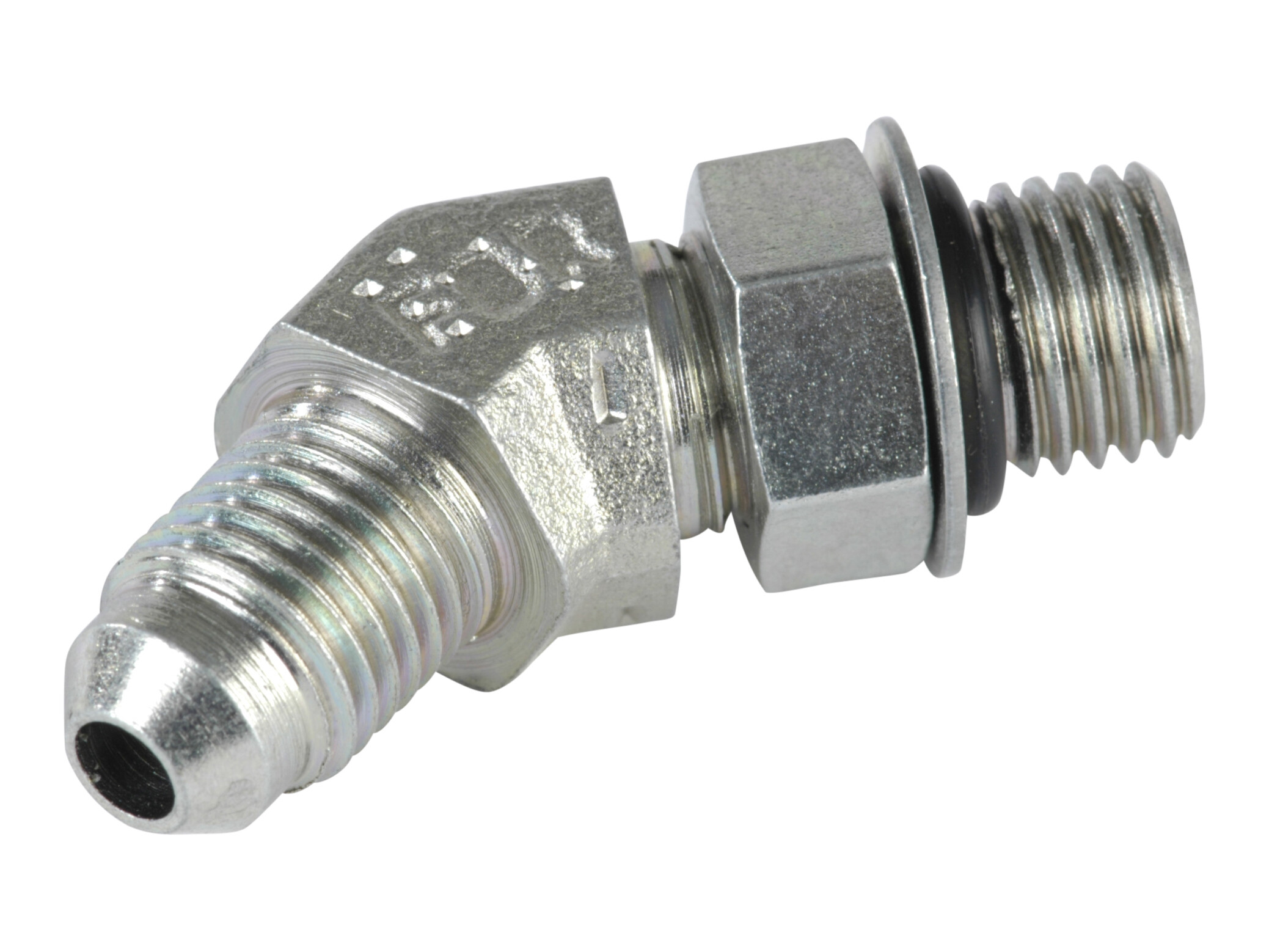

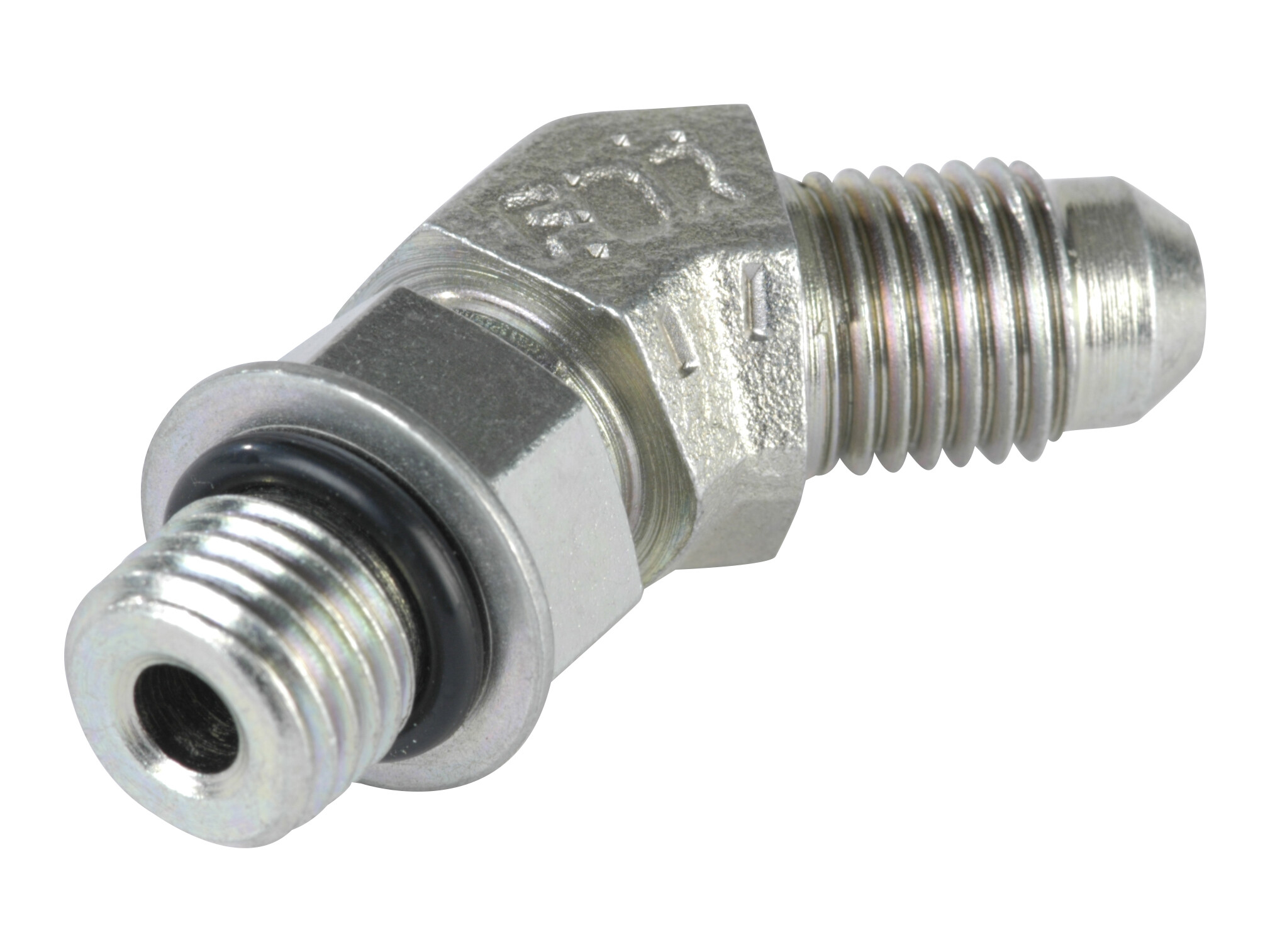

Vinkelindskruning 45 gr 7/16-20 JIC udv x 7/16-20 UNF udv
Vinkelindskruning 45 gr 7/16-20 JIC udv x 7/16-20 UNF udv
Varenummer:
VO-06-7/16
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
Dimension B
18 mm
Dimension C
26.5 mm
Dimension CH
14 mm
Dimension F
7/16-20 UNF
Dimension J
7/16-20 JIC
Dimension T
6 mm
Material
Stål
Pressure max.
450 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
7/16-20 JIC
Thread outer
7/16-20 UNF
Package size
0 pcs
Barcode
5704334274964
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 45 gr 7/16-20 JIC udv x 7/16-20 UNF udv
Note: Opening 3D files requires a program that supports the file format
