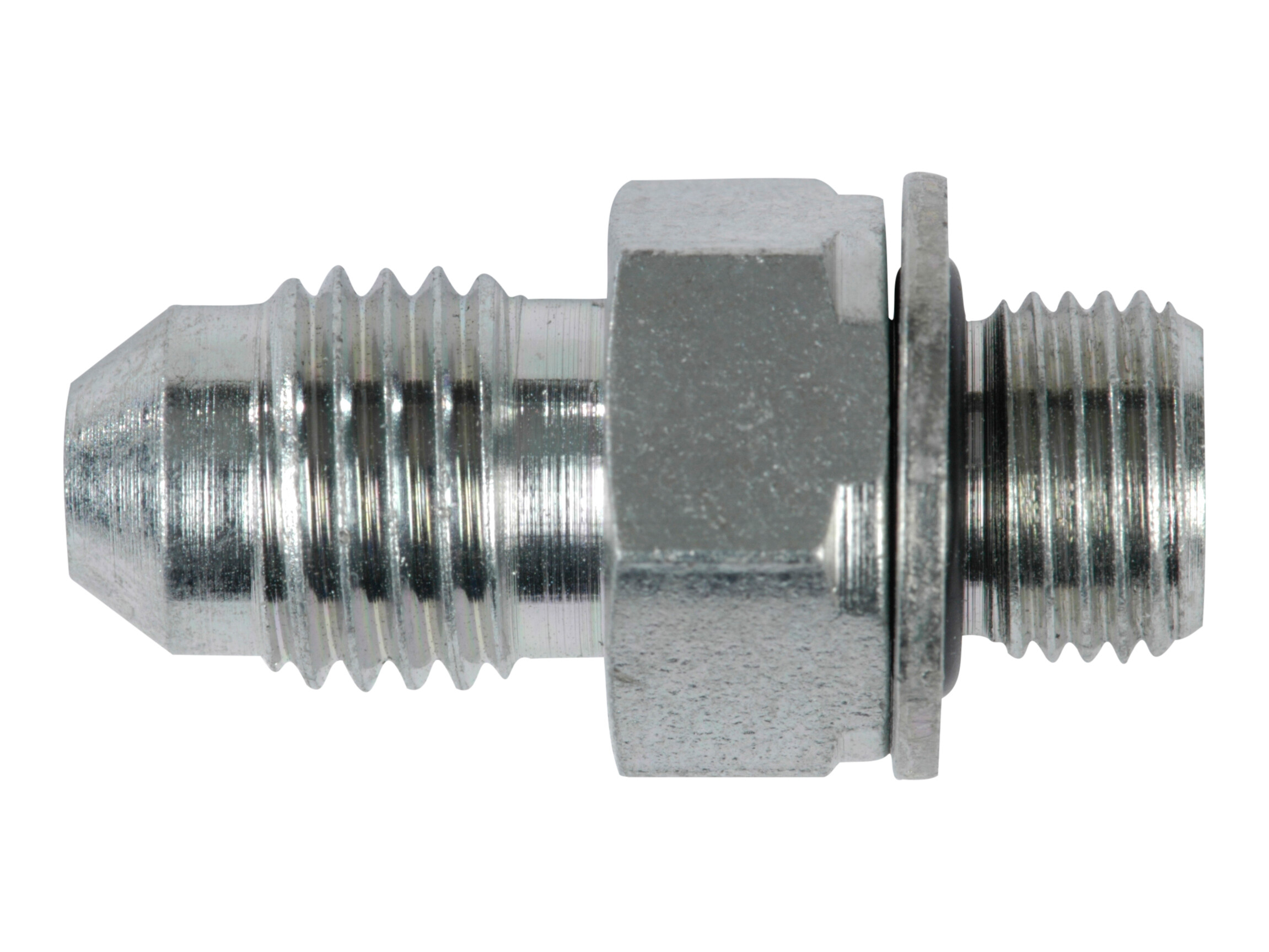

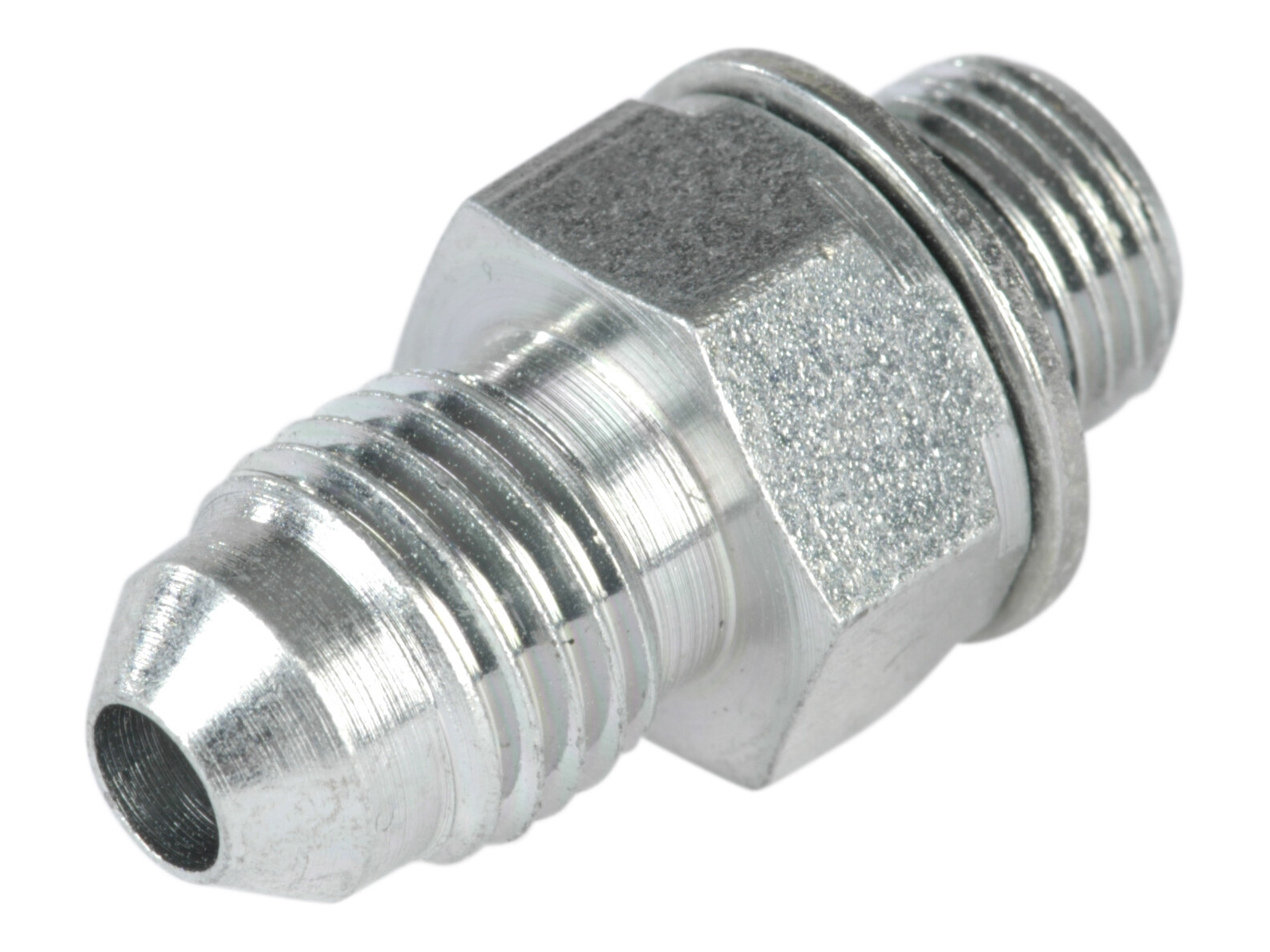

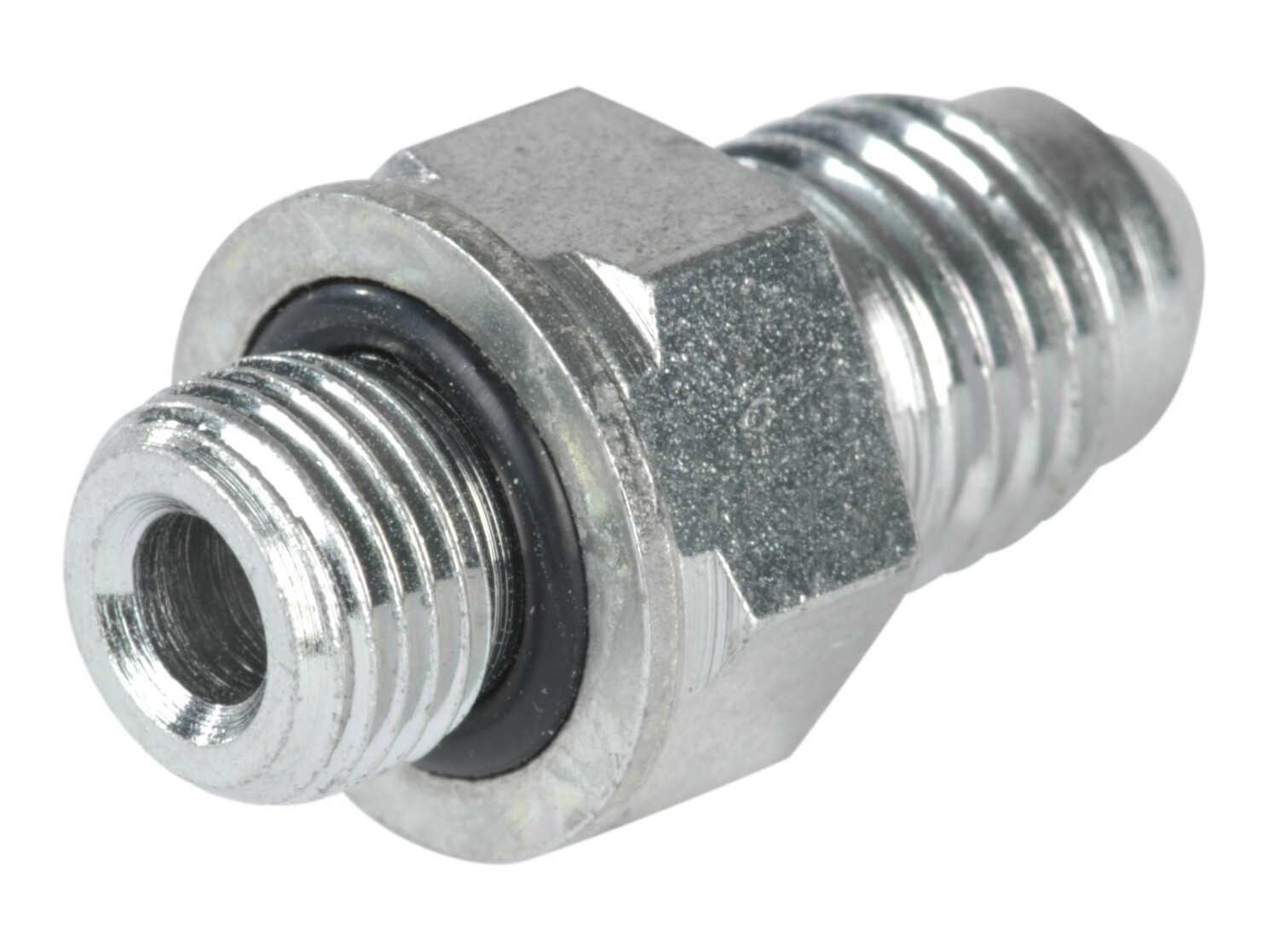

Indskruning 7/16-20 JIC udv x 1/8 BSP udv
Indskruning 7/16-20 JIC udv x 1/8 BSP udv
Partnumber:
M-06-1/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
Dimension A
29 mm
Dimension B
14 mm
Dimension CH
16 mm
Dimension D
7 mm
Dimension F
G 1/8 BSP
Dimension J
7/16-20 JIC
Dimension T
6 mm
Material
Stål
Pressure max.
450 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread
G 1/8 BSP
Thread outer
7/16-20 JIC
Thread outer
G 1/8 BSP
Package size
0 pcs
Barcode
5704334274537
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 7/16-20 JIC udv x 1/8 BSP udv
