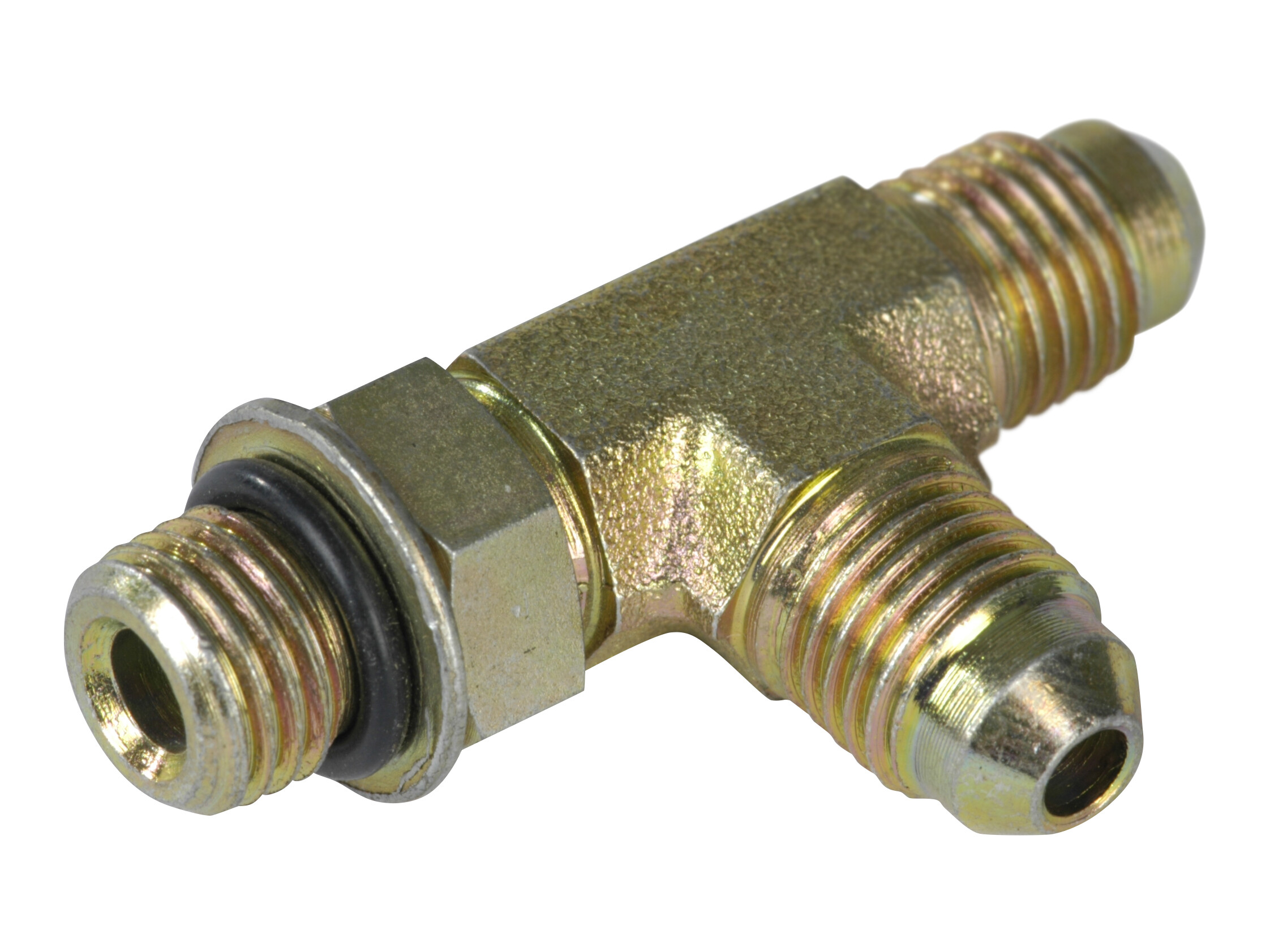

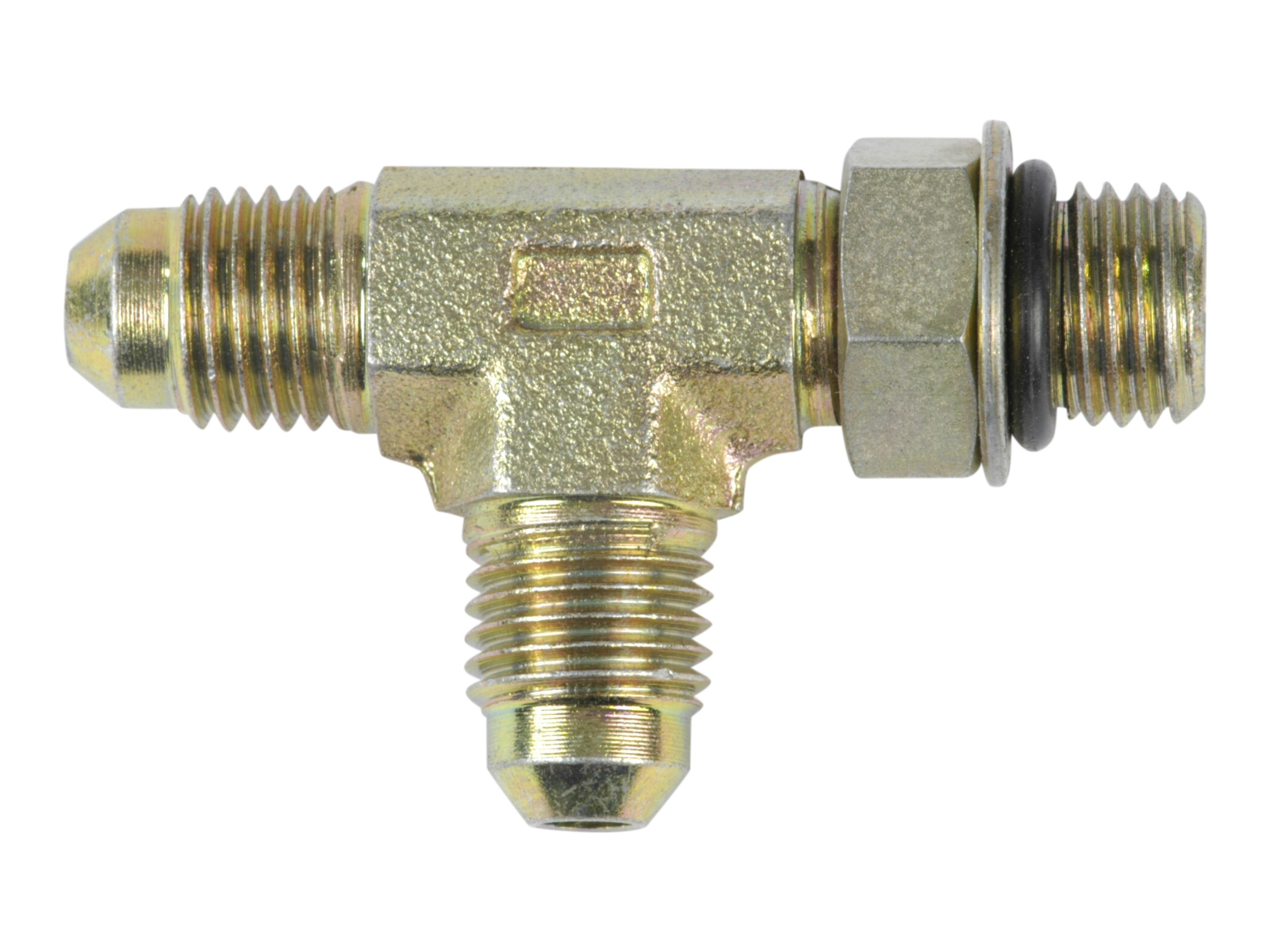

L-forskruning stilbar 7/16-20 JIC udv x 7/16-20 UNF udv

L-forskruning stilbar 7/16-20 JIC udv x 7/16-20 UNF udv

Partnumber:

TOD-06-7/16

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Bushing Ø6

Partnumber: B-06

Nut 7/16-20 JIC

Partnumber: J-06

Specifications
Dimensions and shipping

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

6 mm

Dimension B

22.5 mm

Dimension B1

22.5 mm

Dimension C

27.5 mm

Dimension CH

14 mm

Dimension F

7/16-20 UNF

Dimension J

7/16-20 JIC

Dimension J1

7/16-20 JIC

Dimension T

6 mm

Dimension T1

6 mm

Material

Stål

Pressure max.

450 bar

Surface treatment

El-forzinket / hvidkromatiseret

Thread outer

7/16-20 JIC

Thread outer

7/16-20 UNF

Package size

0 pcs

Barcode

5704334274766

Gross weight

0,06 Kg

Net weight

0,06 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

L-forskruning stilbar 7/16-20 JIC udv x 7/16-20 UNF udv

Note: Opening 3D files requires a program that supports the file format
