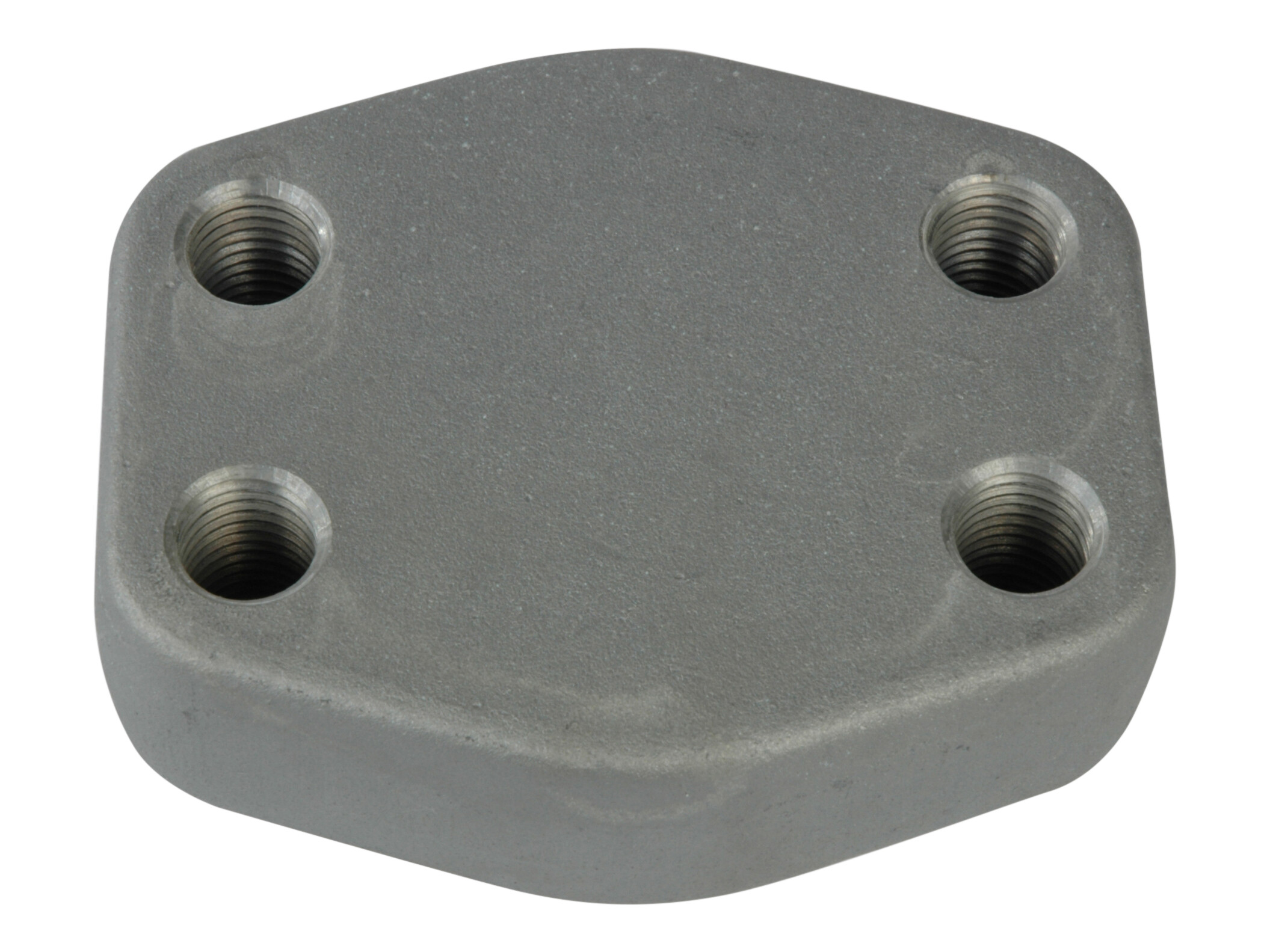

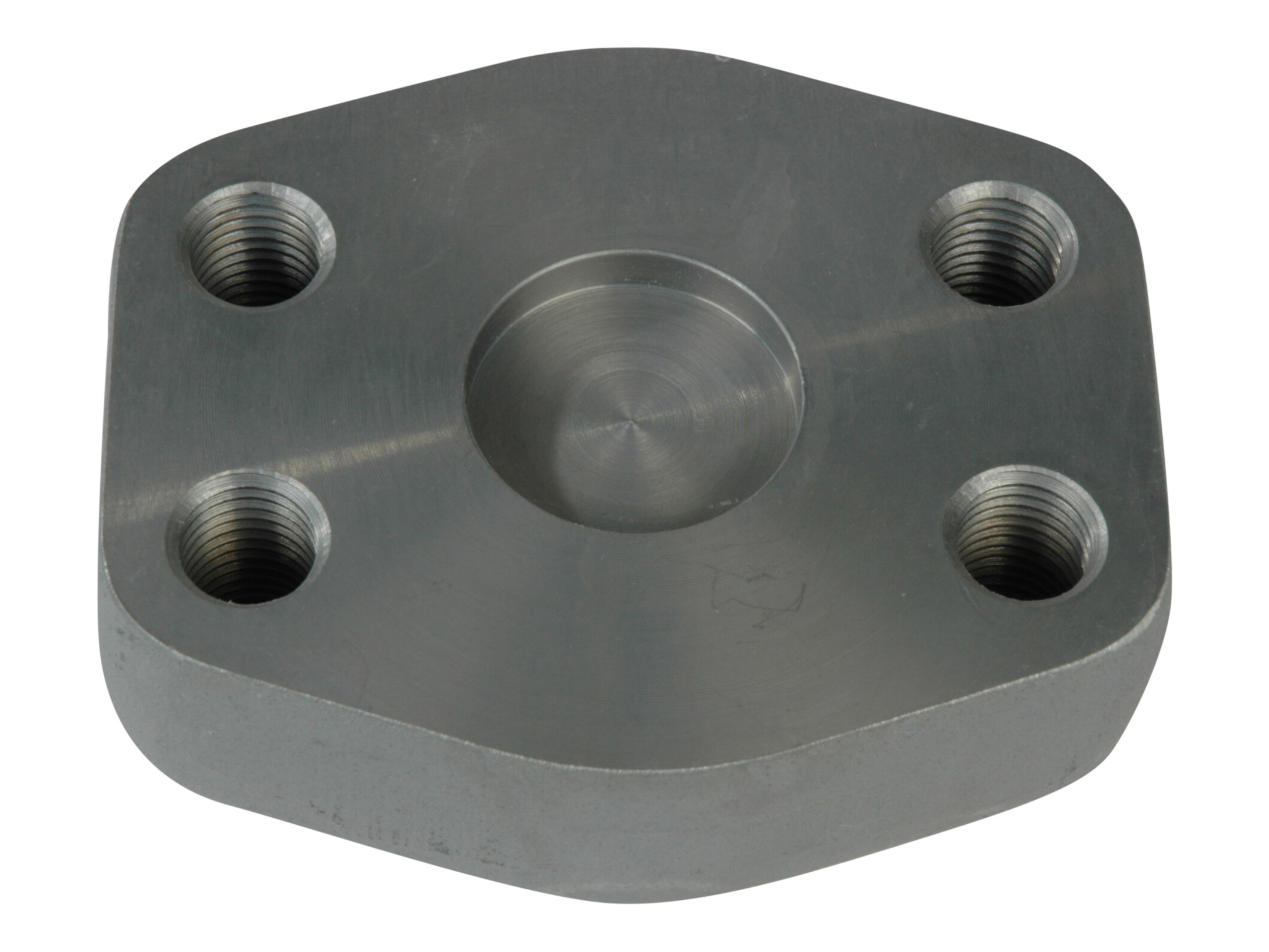

Blændflange 1.1/2" SAE6000
Blændflange 1.1/2" SAE6000
Partnumber:
GFC405
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Havit

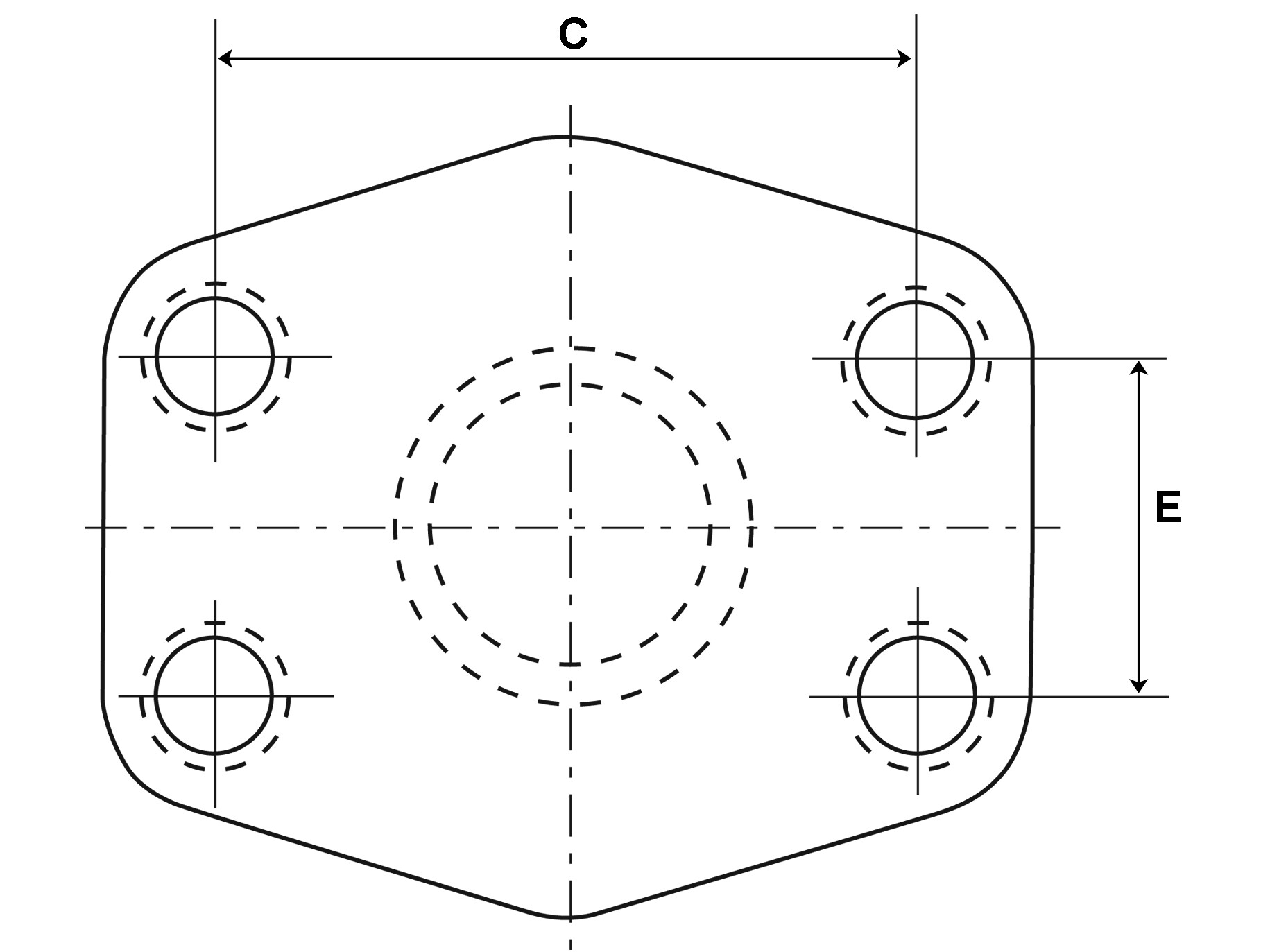

C
79,3 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
63.5 mm
E
36,5 mm
Flange
1.1/2 "
Flange SAE/DIN
6000 PSI
Material
Stål
O-ring
47,22X3,53 mm
Pressure max.
420 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread of bolt metric
M16
Förpackningsstorlek
0 pcs
Streckkod
5704295376271
Bruttovikt
1,80 Kg
Nettovikt
1,80 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Blændflange 1.1/2" SAE6000
