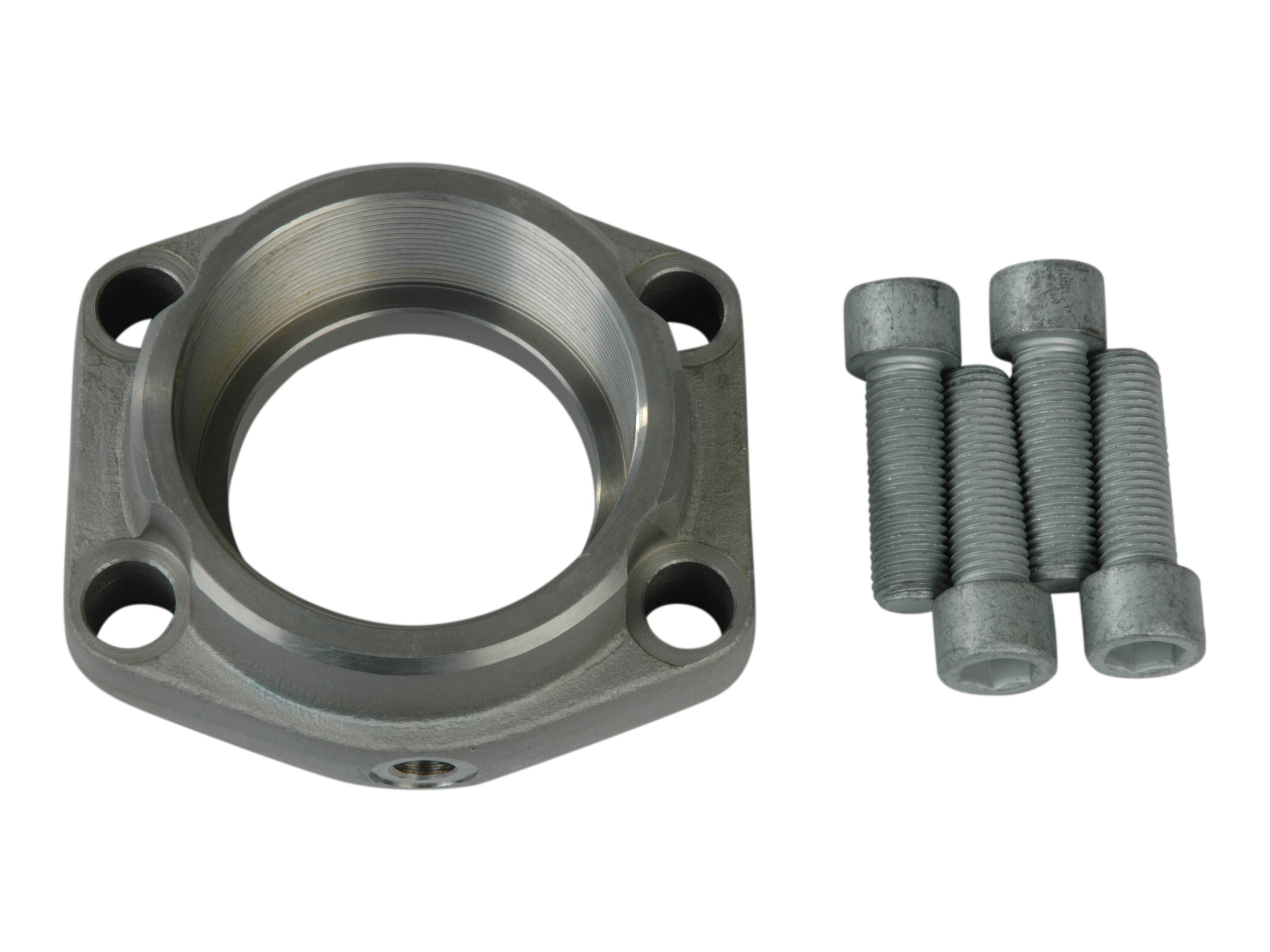

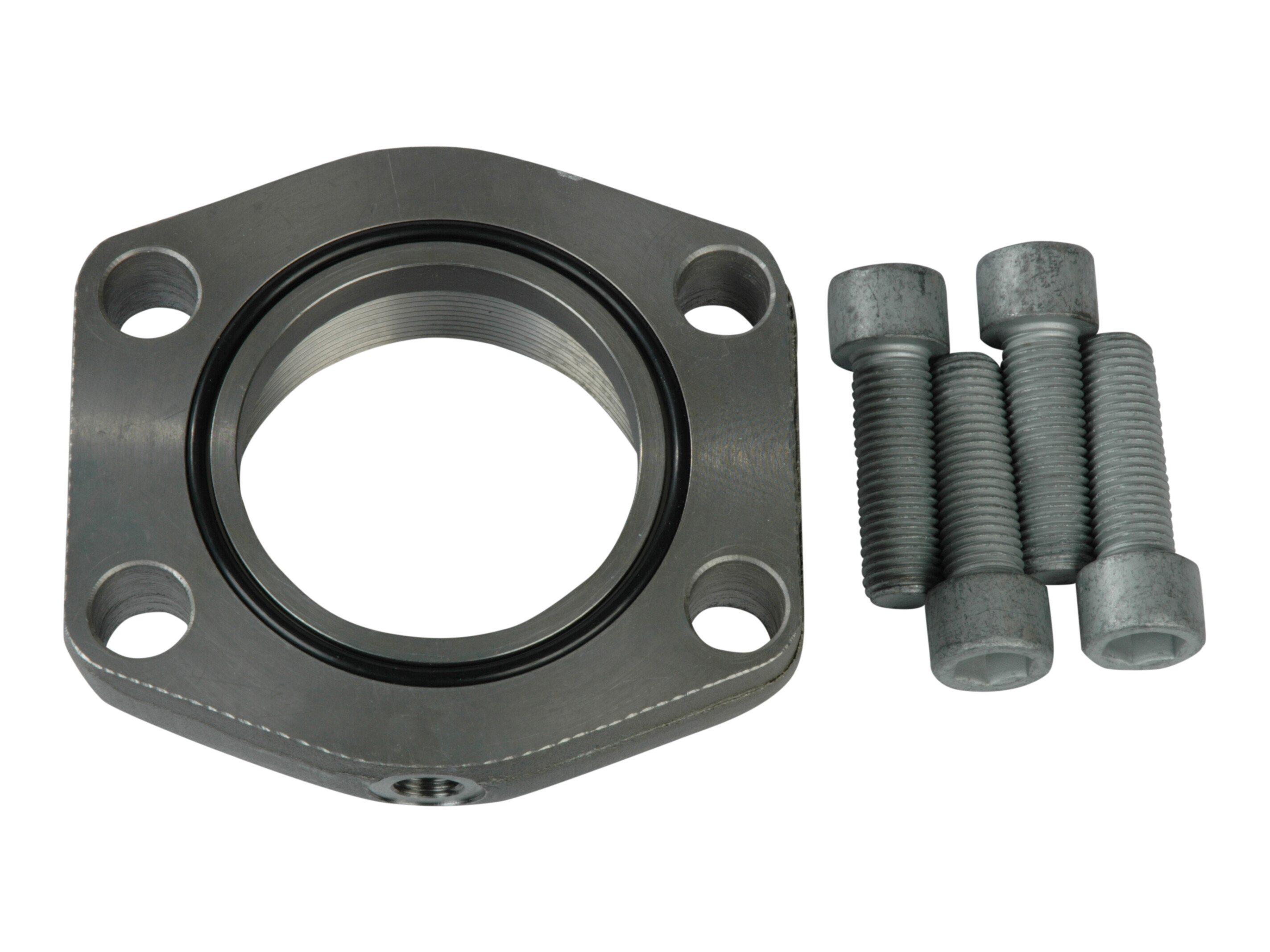

Gevindflange 3" SAE3000 x 3" BSP - 1/4" test - kpl

Gevindflange 3" SAE3000 x 3" BSP - 1/4" test - kpl

Varenummer:

AFS112G-G14M

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)
Reservedele (1)

Boltsæt (4) for SAE flanger - 10.9 ZiNi - UNC 5/8" x 2"

Partnumber: UNC58-2ZN

O-ring 90S

Partnumber: 85.32X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M16x50 mm

Diameter flange

101.6 mm

Dimension C

106.4 mm

Dimension E

61.9 mm

Flange

3 "

Flange SAE/DIN

3000 PSI

Gevind indvendig

G 1/4, G 3 BSP

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

85.32X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

160 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334294351

Gross weight

2,15 Kg

Net weight

2,15 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Gevindflange 3" SAE3000 x 3" BSP - 1/4" test - kpl
