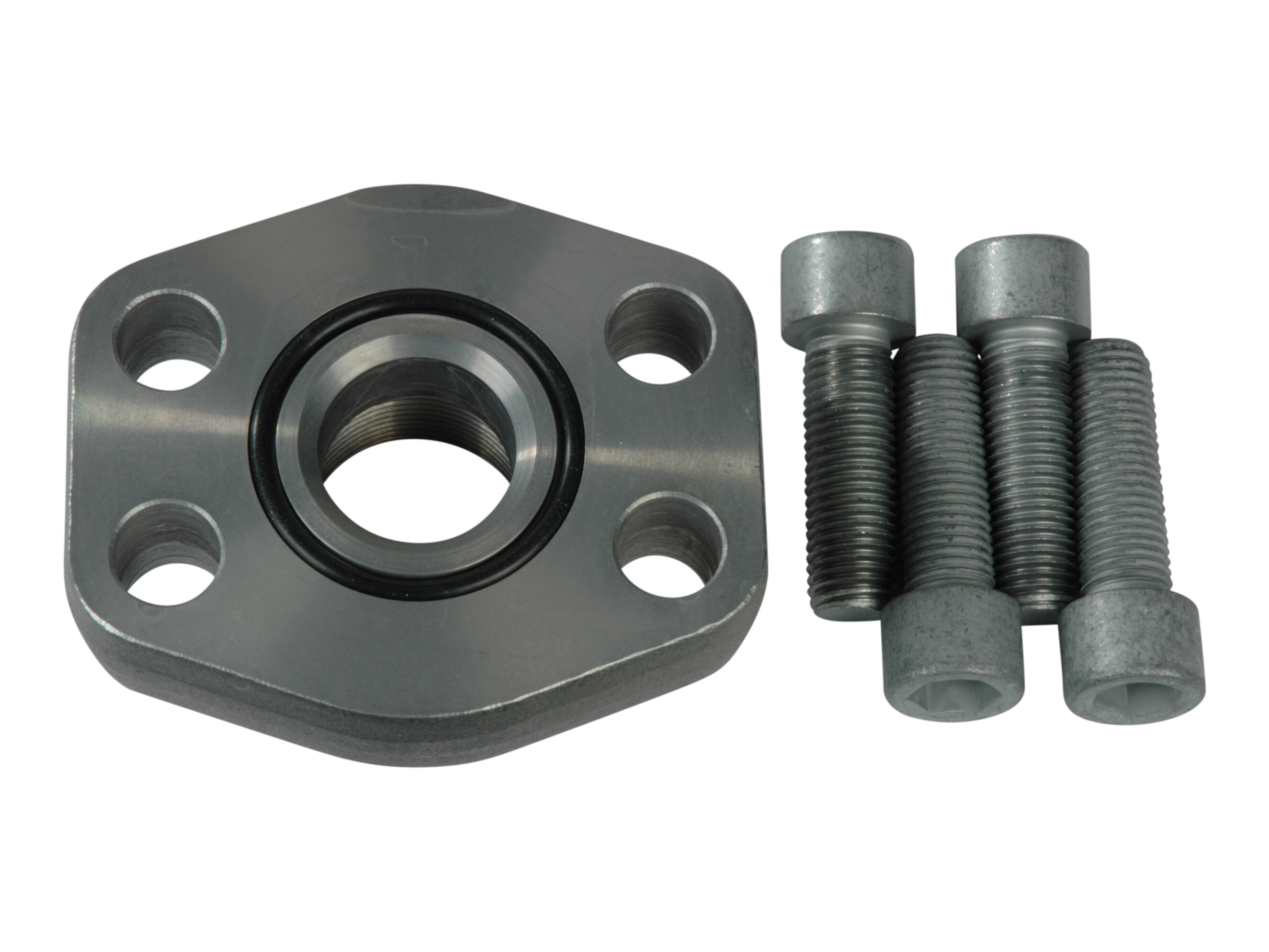

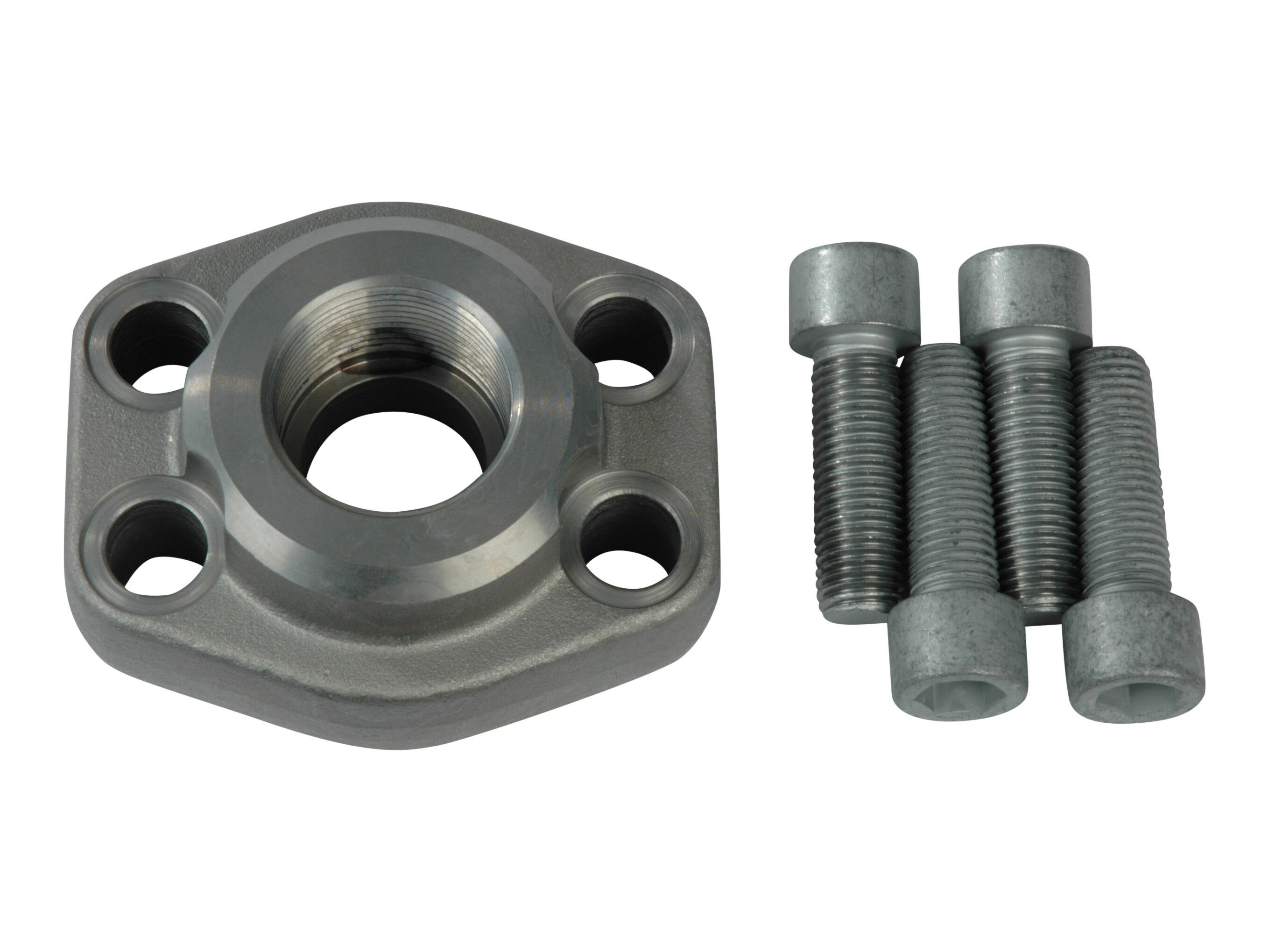

Gevindflange 2" SAE6000 x 2" BSP - 1/4" test - komplet

Gevindflange 2" SAE6000 x 2" BSP - 1/4" test - komplet

Partnumber:

AFS406G-G14M

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (1)
Spare parts (1)

Bolts (4) for SAE flanges - 10.9 ZiNi - UNC 3/4" x 2.1/2"

Partnumber: UNC34-212ZN

O-ring 90S

Partnumber: 56.75X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M20x70 mm

Diameter flange

79.5 mm

Dimension C

96.8 mm

Dimension E

44.5 mm

Flange

2 "

Flange SAE/DIN

6000 PSI

Gevind indvendig

G 1/4, G 2 BSP

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

56.75X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

420 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295921594

Gross weight

3,31 Kg

Net weight

3,31 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Gevindflange 2" SAE6000 x 2" BSP - 1/4" test - komplet
