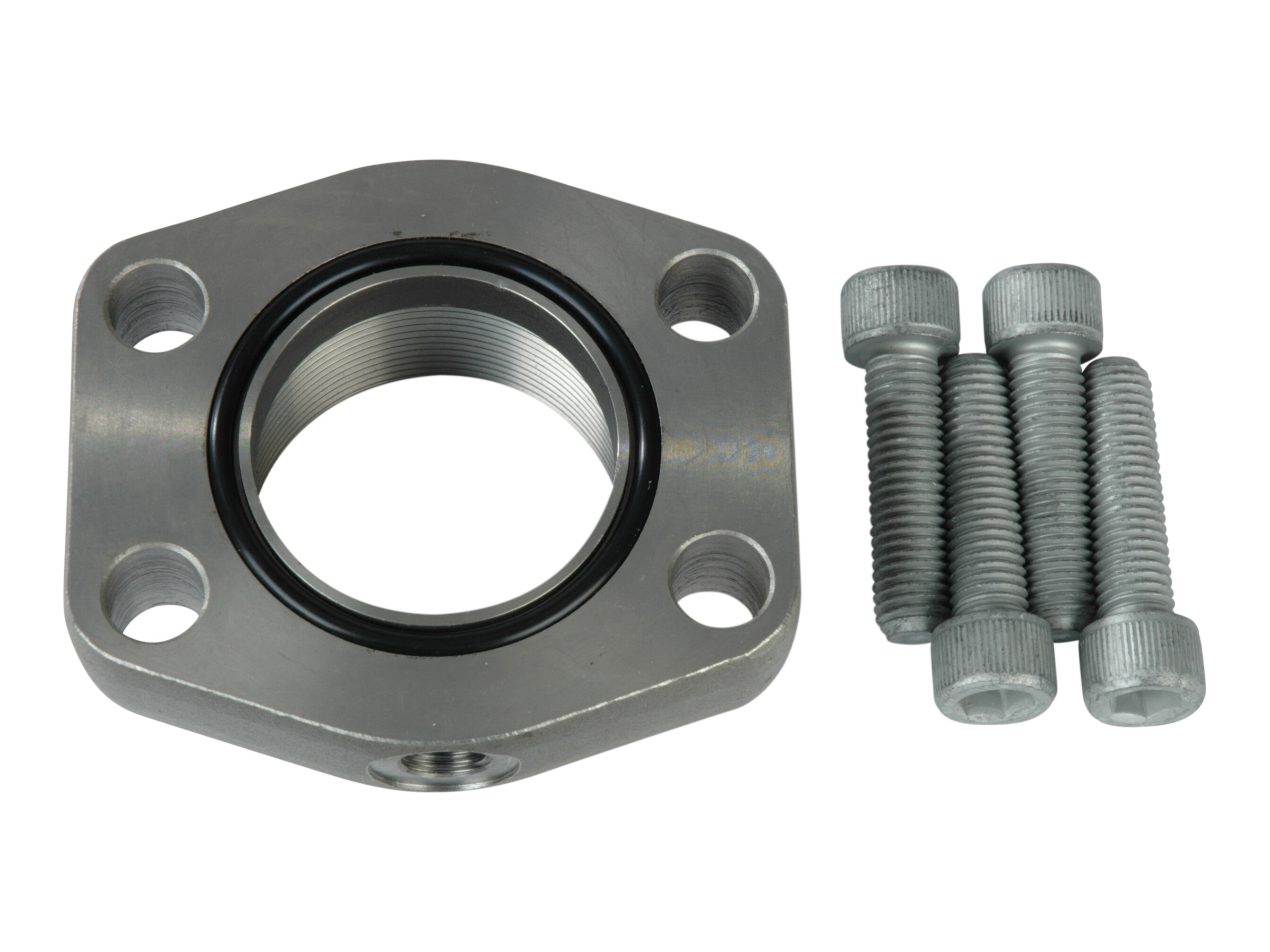

AFS108G-G14M - Gevindflange 2" SAE3000 x 2" BSP - 1/4" test - kpl.
Gevindflange 2" SAE3000 x 2" BSP - 1/4" test - kpl.
Partnumber:
AFS108G-G14M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Bolt dimension
M12x45 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
71.4 mm
Dimension C
77.8 mm
Dimension E
42.9 mm
Flange
2 "
Flange SAE/DIN
3000 PSI
Material
Stål
Number of bolts
4
O-ring
56.75X3.53 mm
Pressure max.
210 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1/4, G 2 BSP
Pakke str.
0 pcs
Stregkode
5704295921204
Brutto vægt
1,17 Kg
Netto vægt
1,17 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Gevindflange 2" SAE3000 x 2" BSP - 1/4" test - kpl.
