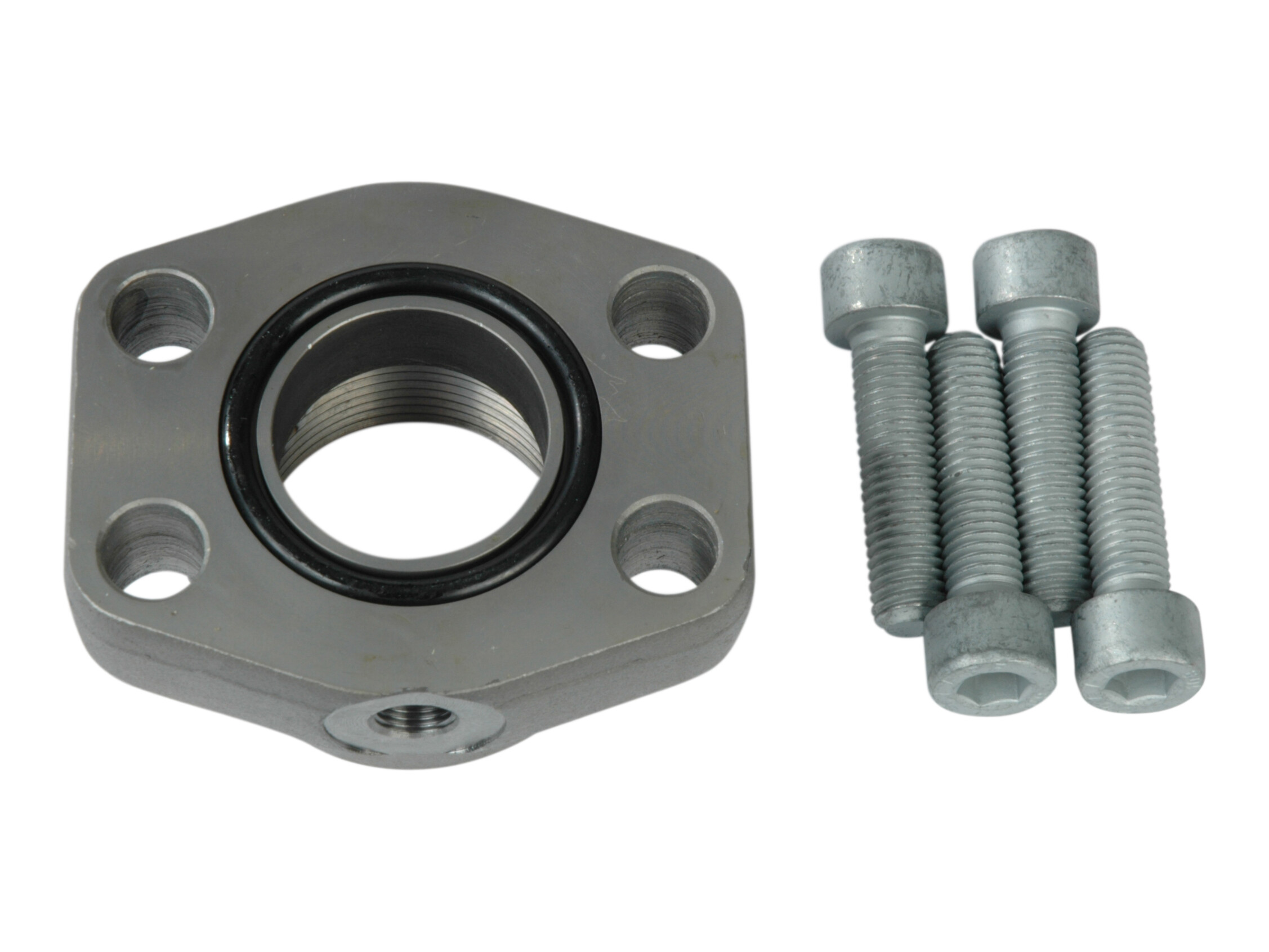

Gevindflange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test - kpl.
Gevindflange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test - kpl.
Partnumber:
AFS104G-G18M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Antal bolte
4
Bolt dimension
M10x40 mm
Diameter flange
50.8 mm
Dimension C
58.7 mm
Dimension E
30.2 mm
Flange
1.1/4 "
Flange SAE/DIN
3000 PSI
Gevind indvendig
G 1.1/4, G 1/8 BSP
Korrosions resistens
480 hours salt spray DIN EN 9227
Materiale
Stål
Mærke navn
Havit
O-ring
37.69X3.53 mm
Overfladebehandling
Zink-Nikkel belagt
Pakningsmateriale
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperatur maks.
+90 °C
Temperatur min.
-40 °C
Tryk maks.
280 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295988023
Gross weight
0,66 Kg
Net weight
0,66 Kg
Country of origin
DEU
Intrastat code
73079100
Gevindflange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test - kpl.
