Rörklamma Komplett Ø35mm, DIN3015-2 Tunga Serien, Polyamid
Partnumber:
SPAL5035PADPALAS
Package size:
1 st
Min. order quantity is:
1 st
Antal bolte
2
DIN størrelse
3
Diameter rør
35 mm

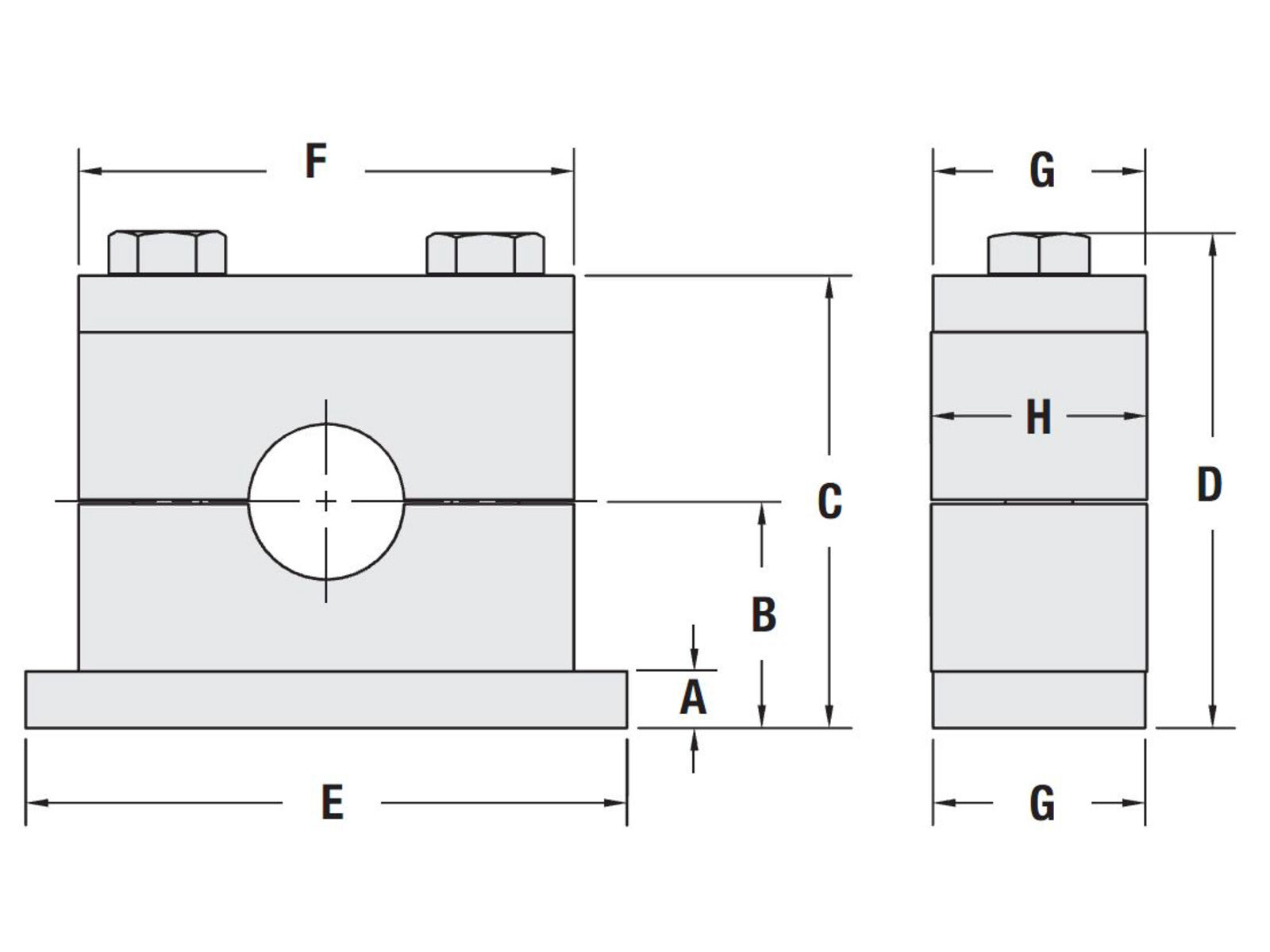

Dimension A
8 mm
Dimension B
38 mm
Dimension C
76 mm
Dimension D
82.4 mm
Dimension E
100 mm
Dimension F
85 mm
Dimension G
30 mm
Dimension H
30.5 mm
Farve
Black
Gruppe Stauff
5S
Materiale
Polyamide, Steel
Mærke navn
Stauff
Overfladebehandling
Zinc-Nickel plated
Standard DIN
DIN 3015 part 2
Temperatur maks.
+120 °C
Temperatur min.
-40 °C
Tilspændingsmoment
10 Nm
Type
Profiled
Package size
1 st
Barcode
330888
Gross weight
Kg
Net weight
Kg
