Riktningsventil SUN T-13A 2/2 prop

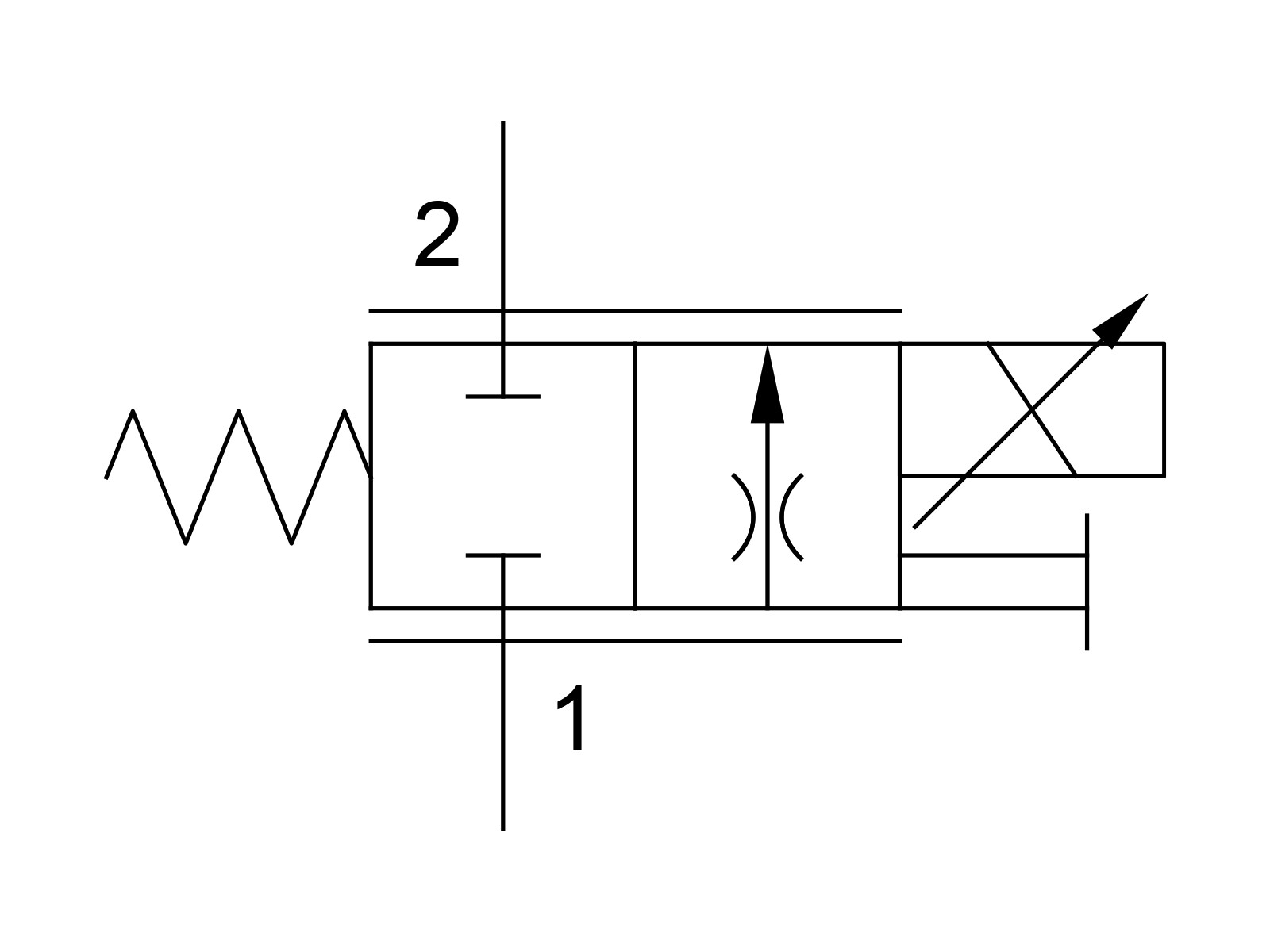

This valve is a normally closed, electro-proportional throttle that is spring-biased closed. Energizing the coil generates an opening force on the spool proportional to the command current, and this force is countered by the spring and flow forces. This force balance creates a metering orifice whose effective size is proportional to the current.
The valve exhibits a large degree of self-compensation in the 1-to-2 direction and will provide proportional flow control in the 2-to-1 direction with the addition of an external compensator. Full reverse flow (2-to-1) with 100% command in the 2-to-1 direction is possible without a compensator under all conditions.
Artikelnummer:
FPCC-MBN
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Activation
Solenoid proportional
Brand Name
Sun Hydraulics
Cavity
T-13A
Contamination level max.
15/13/11 - ISO 4406
Flow max. regulated
14 lpm
Flow min. regulated
0.6 lpm
Flow rate nominal LMin
40 lpm
Number of ways/positions
2/2
Oil viscocity recommended
2,8 - 380 cSt
Pressure max.
350 bar
Sealing material
NBR
Solenoidtype
770
Temperature max.
+110 °C
Temperature min.
-30 °C
Torque tightening
41 - 47 Nm
Valve type
NC - Normally closed
Förpackningsstorlek
1 st
Streckkod
238148
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
usa
This valve is a normally closed, electro-proportional throttle that is spring-biased closed. Energizing the coil generates an opening force on the spool proportional to the command current, and this force is countered by the spring and flow forces. This force balance creates a metering orifice whose effective size is proportional to the current.
The valve exhibits a large degree of self-compensation in the 1-to-2 direction and will provide proportional flow control in the 2-to-1 direction with the addition of an external compensator. Full reverse flow (2-to-1) with 100% command in the 2-to-1 direction is possible without a compensator under all conditions.
