Directional valve 2/2 - 40l/min T-13A

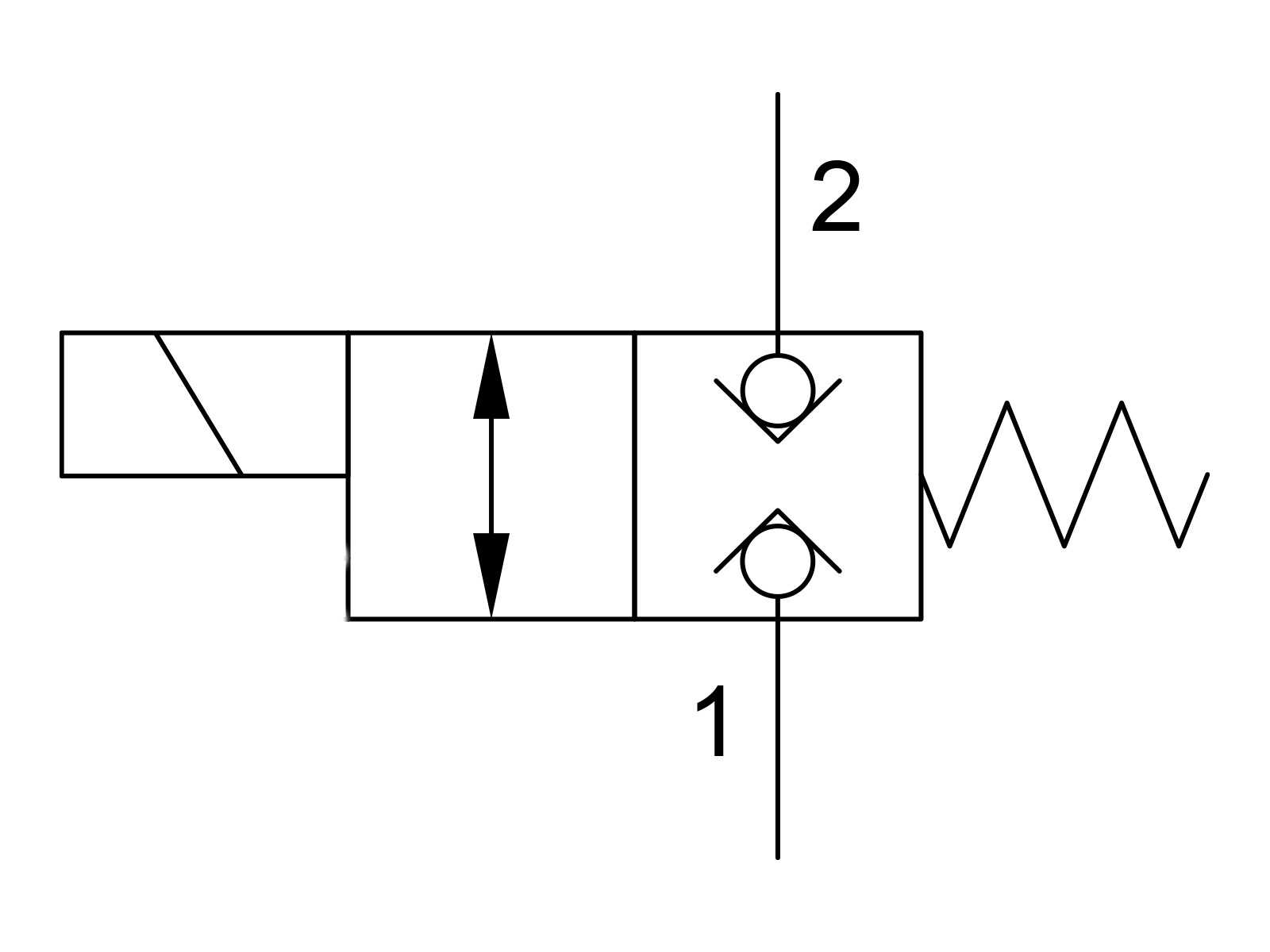

This solenoid-operated 2-way, 2-position cartridge valve is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils. Due to the poppet style construction, this valve has extremely low leakage.
Partnumber:
DTDF-XCN
Package size:
0 pcs
Min. order quantity is:
1 pcs
Aktivering
Solenoid
Antal väger/positioner
2/2
Flödeshastighet nominell LMin
40 lpm
Föroreningsgrad max.
15/13/11 - ISO 4406
Kavitet
T-13A
Manuellt styrd
No
Märke namn
Sun Hydraulics
Oljeviskositet rekommanderad
2,8 - 380 cSt
Packningsmaterial
NBR
Temperatur max.
+110 °C
Temperatur min.
-30 °C
Tryck max.
350 bar
Ventiltyp
NC - Normally closed
Åtdragning moment
41 - 47 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334710899
Bruttovikt
0,23 Kg
Nettovikt
0,23 Kg
Ursprungsland
Intrastat artikelkod
84812010
This solenoid-operated 2-way, 2-position cartridge valve is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils. Due to the poppet style construction, this valve has extremely low leakage.
